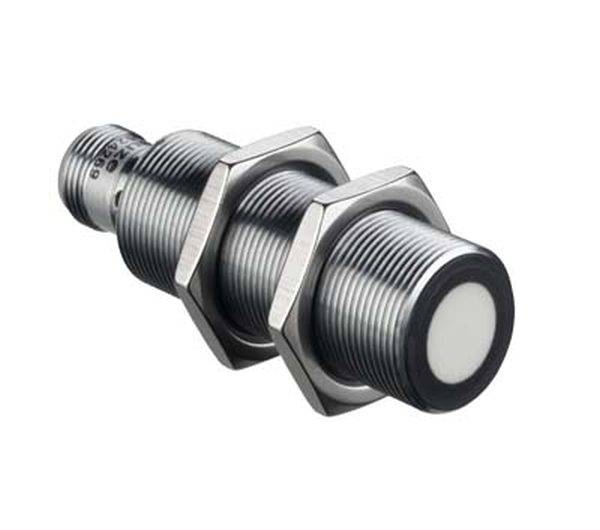

Leuze Electronic Ultrasonic switch Ultrasound M18 Leuze Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic switch
Model
Ultrasound
(Ø)
18 mm
Type
Leuze
Technical specifications
- Packaging type
Piece
- Product type
Ultrasonic switch
- Type
Leuze
- Model
Ultrasound
- Size
M18
- Enclosure material
Plastic
- Length
60.3 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 60.3 mm
DC
150 mA
Plastic
-20-70 °C
5 Hz
Connector M12
PNP
Normally open contact (NO)
80 mm
None
None
Cylinder, screw-thread
35 mA
0.5 %
FALSE
10-30 V
Plastic
Other
18 mm
60.3 mm
80-1200 mm
80-1200 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983953 Leuze Electronic Ultrasonic switch Ultrasound M18 Leuze Piece
Description
Special version: Teach-in; operating range: 0.08 ... 1.2 m; opening angle: 8 °; radiation direction: Front; supply voltage: 10 ... 30 V, DC; digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, NO (NO); switching frequency: 5 Hz; Connection: round plug, M12, 4-pin; design: cylindrical, M18; Dimensions: 18 mm x 60.3 mm; material housing: plastic
