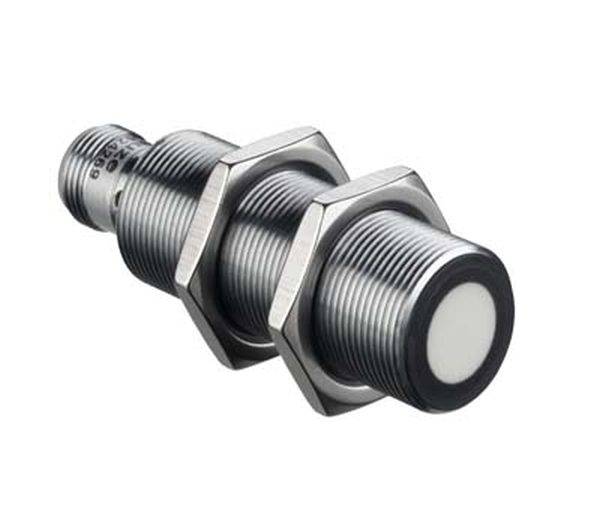

Leuze Electronic Ultrasonic switch Ultrasound M18 PNP Antivalent 50124272
EAN:
Part number:
Item no:
Product type
Ultrasonic switch
Outputs
PNP Antivalent
Model
Ultrasound
(Ø)
18 mm
Type
50124272
Technical specifications
- Product type
Ultrasonic switch
- Type
50124272
- Outputs
PNP Antivalent
- Model
Ultrasound
- Size
M18
- Enclosure material
Metal
- Contact type
Antivalent
- Length
60 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 60 mm
DC
150 mA
Other
-25-70 °C
8 Hz
Connector M12
PNP
Normally open contact (NO)
150 mm
None
None
Cylinder, screw-thread
50 mA
0.15 %
FALSE
15-30 V
Other
18 mm
75 mm
150-1300 mm
150-1300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983962 Leuze Electronic Ultrasonic switch Ultrasound M18 PNP Antivalent 50124272
Description
Special version: Teach-in input, 2 independent switching outputs; operating range: 0.15 ... 1.3 m; opening angle: 16 °; radiation direction: Front; supply voltage: 15 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, PNP, NO (NO); switching output 2: Transistor, PNP, NC/NO; switching frequency: 8 Hz; connection: round plug, M12, 5 -pin; design: cylindrical, M18; dimensions: 18 mm x 60 mm; material housing: metal
