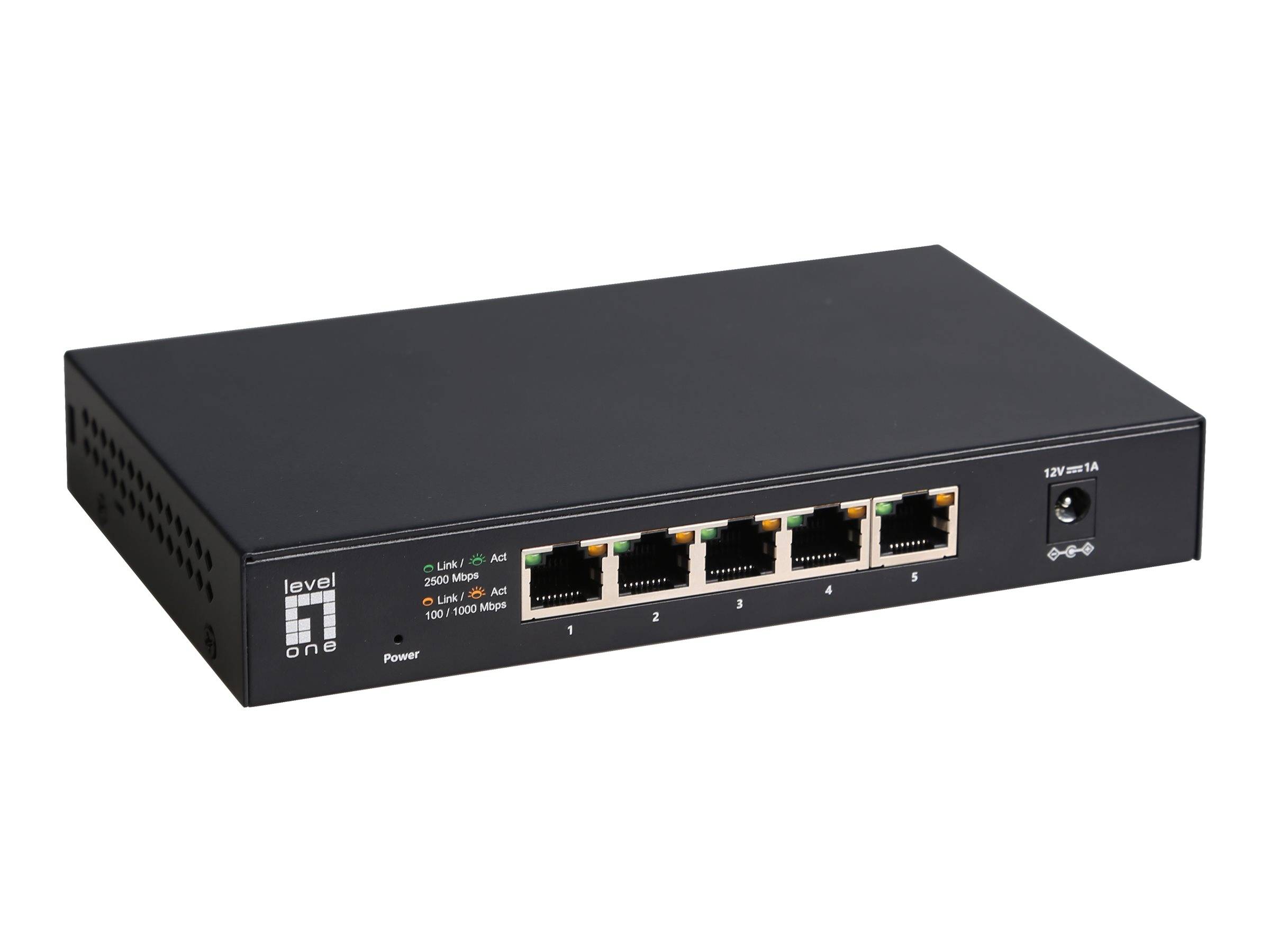

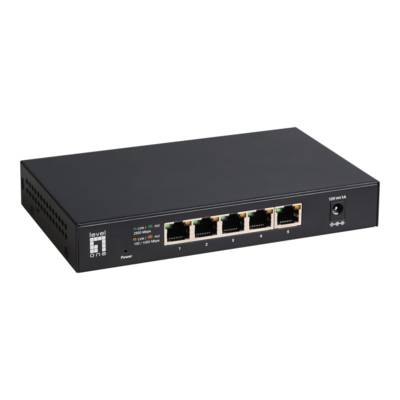

LevelOne GEU-0525 switch – unmanaged - 5 x 100/1000/2.5G base-T
EAN:
Part number:
Item no:
LevelOne GEU-0525 switch – unmanaged - 5 x 100/1000/2.5G base-T
Highlights & Details
- Supports 2.5-Gigabit Ethernet for faster connectivity
- Fanless design for silent operation
- Desktop and wall mountable form factor for flexibility
- Equipped with five RJ-45 ports for versatile network connections
- Compatible with several standards of reliability
Technical specifications
- Desktop, wall mounting
- Product type
Network switch
- LAN transfer rate
2500 MBit/s
- Transfer rate
25 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
5
- 10/100 Mbps ports
5 x
- 10/100/1000 Mbps ports
5 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
8000
- Weight
0.65
- Width
17.55 cm
- Height
2.73 cm
- Depth
10.53 cm
- Type
LevelOne GEU-0525 - Switch - unmanaged - 5 x 100/1000/2.5G Base-T
- Interfaces
RJ45
- Factory colour
Multicolour
- Max. ambient temperature
50 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740191 LevelOne GEU-0525 switch – unmanaged - 5 x 100/1000/2.5G base-T
Description
With a packet forwarding rate of 12.5 Gbps and a backplane bandwidth of 18.6 Mpps, the LevelOne GEU-0525 switch ensures efficient data transfer, even with Hohem traffic. With five 100/1000/2.5G ports, this switch provides a range of connectivity options that support various network configurations and devices. The GEU-0525 is designed to operate in a temperature range from 0 °C to 50 °C and to store temperatures from -40 °C to 70 °C, and is therefore designed for a long service life under different conditions. The switch manages network traffic effectively and enables easy setup and configuration through the automatic MAC address detection and aging features. The GEU-0525 has LED status indicators and is plug and play enabled, WAS enables a fast deployment with minimal setup effort.
This text is machine translated.
This text is machine translated.
Features
- LevelOne GEU-0525 switch – 5 connections – unmanaged
- Device type : switch - 5 connections - unmanaged
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 5 x 100/1000/2.5G Base-T
- Performance : 25 Gbps switching capacity
- Transfer rate packet: 18.6 Mpps
- Backplane bandwidth: 12.5 Gb / s.
- Capacity : Packed buffer size: 4 Mbit
- Size of the MAC address table : 8000 entries
- Jumbo Framework Support : 15KB
- Features : Full-duplex mode, half-duplex mode, auto-negotiation, auto-uplink (auto MDI/MDI-X), Mac address auto-learning, Mac Address Auto-Aging, flow control, LED status display, without fans
- Product certifications : IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az
- Power supply : AC 100-240 V (50 - 60 Hz) 0.4 A.
- Dimensions (width x depth x height): 17.55 cm x 10.53 cm x 2.73 cm
- Colour: black
