Name: LG Electronics INR18650MJ1 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.63 V 3.5 Ah 1 pc(s)
Brand: LG Electronics
SKU: 3767978

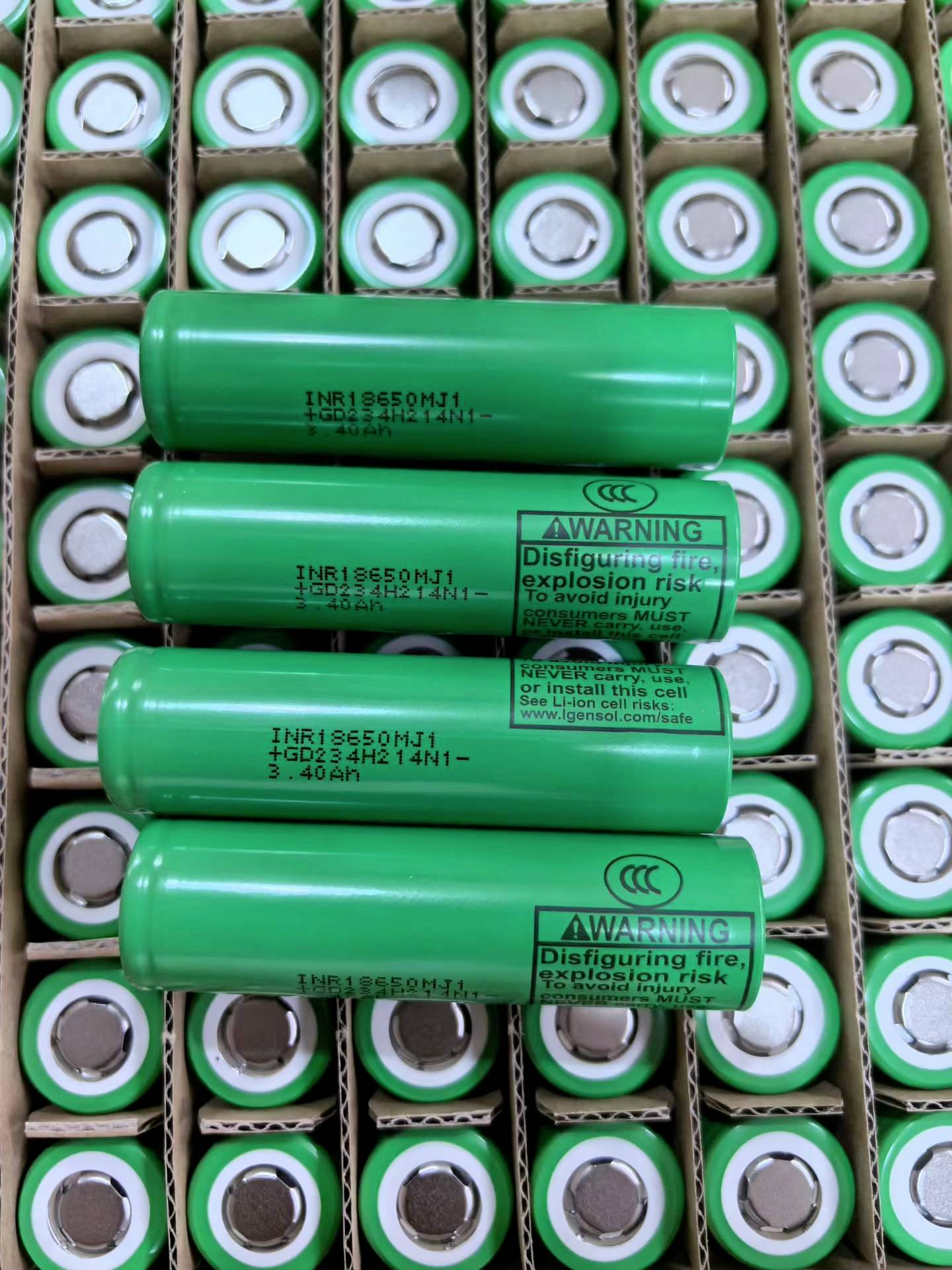

Stacked green lithium-ion batteries in cardboard trays, with several larger cells labeled with warning text about fire and explosion risk.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LG INR18650MJ1 Li-Ion 3.6V / 3.5Ah

Sensational capacity of 3500 mAh for maximum battery life.
Constant discharge current of up to 10 A – Ideal for demanding consumers.
Reliable and long-lasting lithium-ion technology from LG Energy Solution.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.4 mm x 65.2 mm

Voltage: 3.63 V

Capacity (mAh, Ah): 3.5 Ah

Special-purpose battery features: Flat top

Max. charge voltage: 4.2 V

Max. charging current: 3400 mA

Terminal voltage: 2.5 V

Discharge current (max.): 10 A

Continuous discharge: 10 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 65.2 mm

(Ø): 18.4 mm

Weight: 49 g

Content: 1 pc(s)

Type: INR18650MJ1

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3767978 LG Electronics INR18650MJ1 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.63 V 3.5 Ah 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3767978 LG Electronics INR18650MJ1 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.63 V 3.5 Ah 1 pc(s)

Description

The LG INR18650MJ1 sets new standards in energy density. With a rich 3500 mAh capacity and a constant power output of 10 A, this 18650-cell is the perfect choice for torches, E-mobility, battery carriers and DIY battery packs where it counts to every milliampere hour value. Quality made by LG.
