Name: LG Electronics INR21700M58T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5.65 Ah 1 pc(s)
Brand: LG Electronics
SKU: 3768035

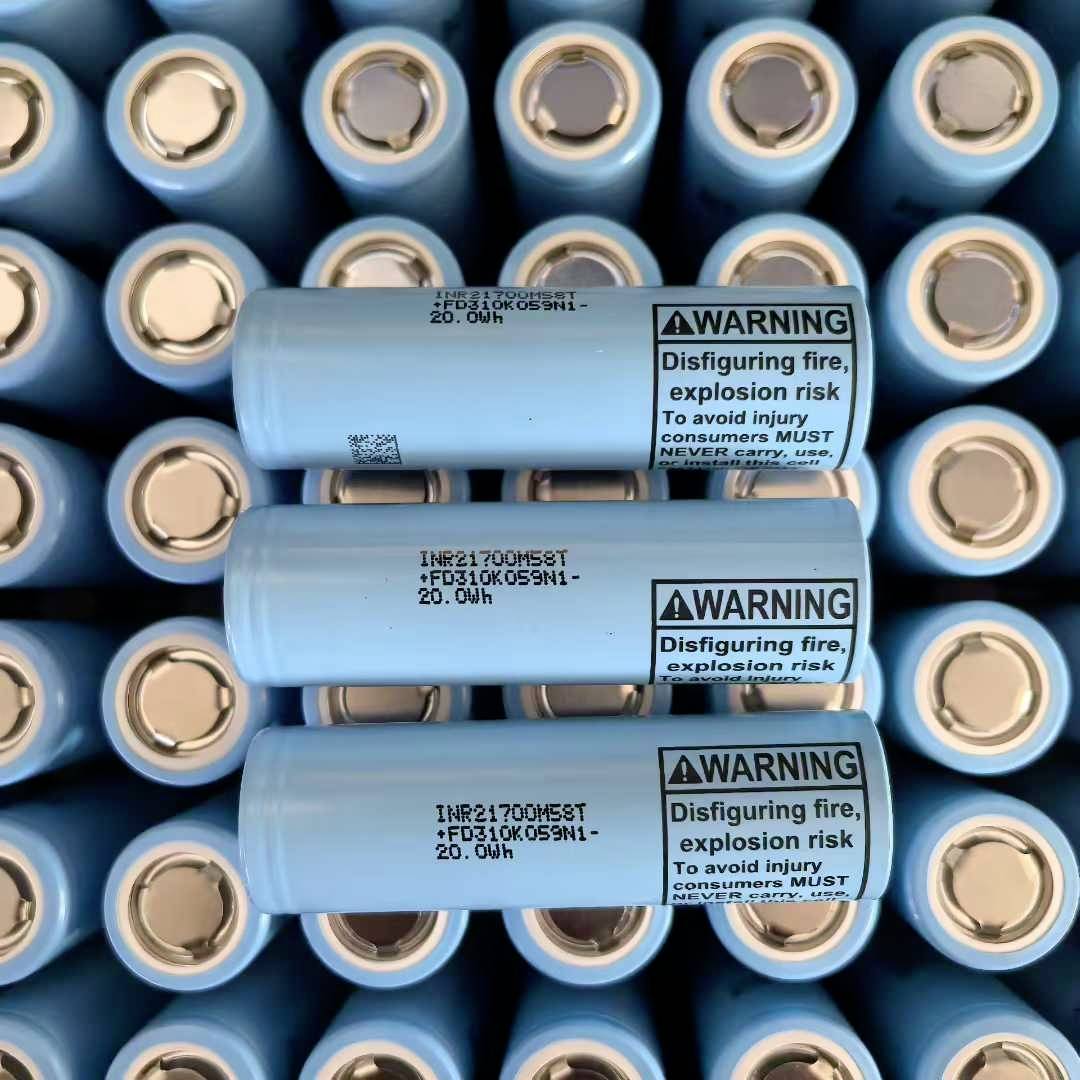

Close-up of stacked blue lithium-ion batteries with warning labels about fire and explosion risk.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LG INR21700M58T Li-ion 3.6V / 5.65Ah

High capacity: With nominal 5,800 mAh (typical 5,650 mAh according to the specification) one of the most powerful 21700 cells in the market.
Long-life & robust: Still achieves at least 80% of the output capacity even after 500 charge/discharge cycles.
Optimised for LEVs: Perfectly designed for use in electric bicycles (electric bikes), electric scooters and modern home storage systems (ESS).

Technical specifications

Size: 21700

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 21.8 mm x 71 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 5.65 Ah

Special-purpose battery features: Flat top

Max. charge voltage: 4.2 V

Max. charging current: 2.7 A

Terminal voltage: 2.5 V

Discharge current (max.): 15 A

Continuous discharge: 12.5 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 71 mm

(Ø): 21.8 mm

Weight: 73.2 g

Content: 1 pc(s)

Type: INR21700M58T

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768035 LG Electronics INR21700M58T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5.65 Ah 1 pc(s)

Information

Test Summary Report 3768035 LG Electronics INR21700M58T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5.65 Ah 1 pc(s)

Security datasheet

Security datasheet 3768035 LG Electronics INR21700M58T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5.65 Ah 1 pc(s)

Description

The LG INR21700M58T sets new standards in range and endurance. A true capacity wonder in a compact 21700 format, it provides maximum energy for demanding DIY battery packs, e-bikes and energy storage. Rely on OEM quality from LG Energy Solution for projects where every milliampere-hour value counts.
