Lian Li DAN Cases A3 Microtower PC casing White
EAN:
Part number:
Item no:
Highlights & Details
Lian Li DAN Cases A3 Microtower PC casing
- Lian Li Micro ATX housings in collaboration with DAN Cases

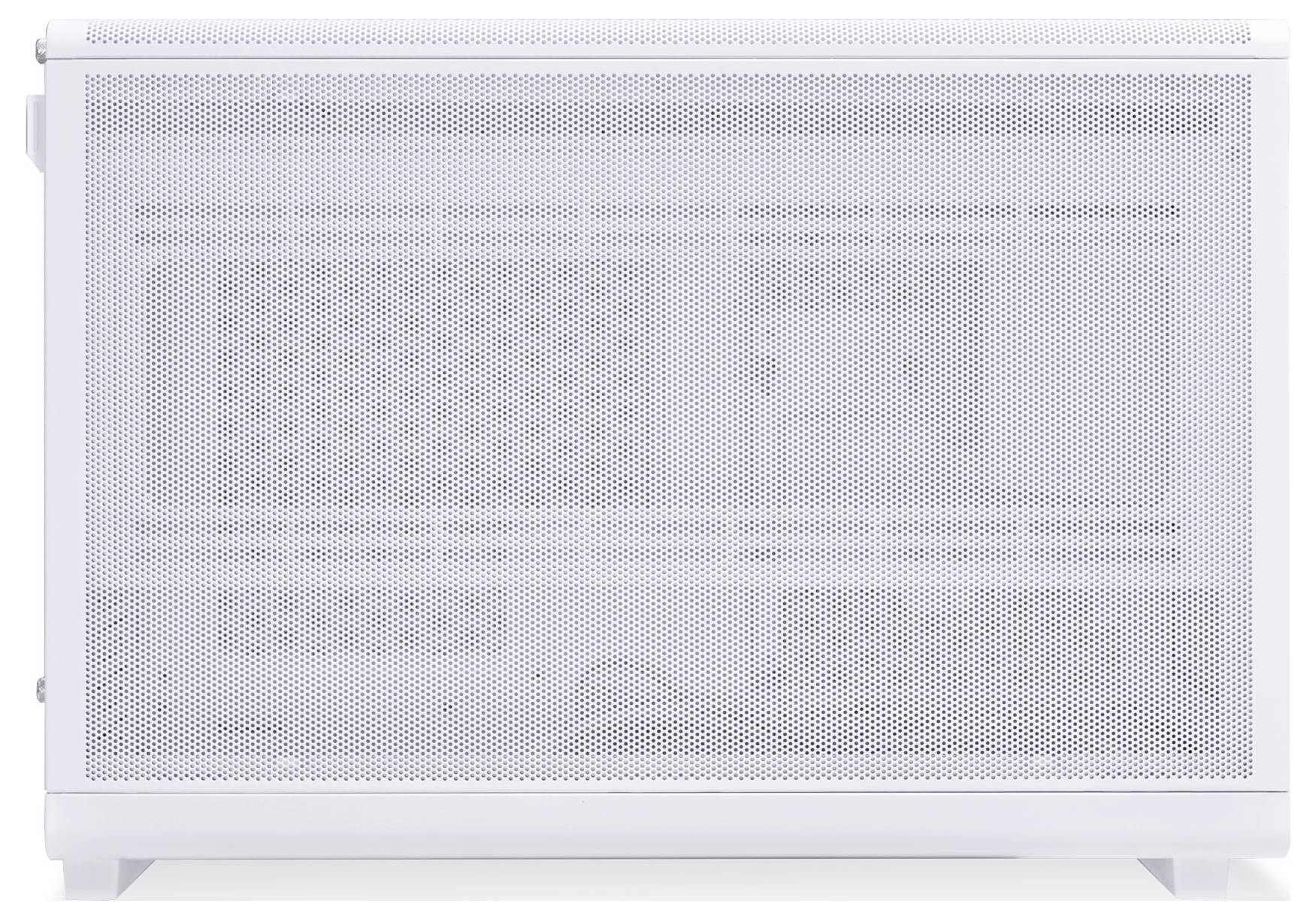

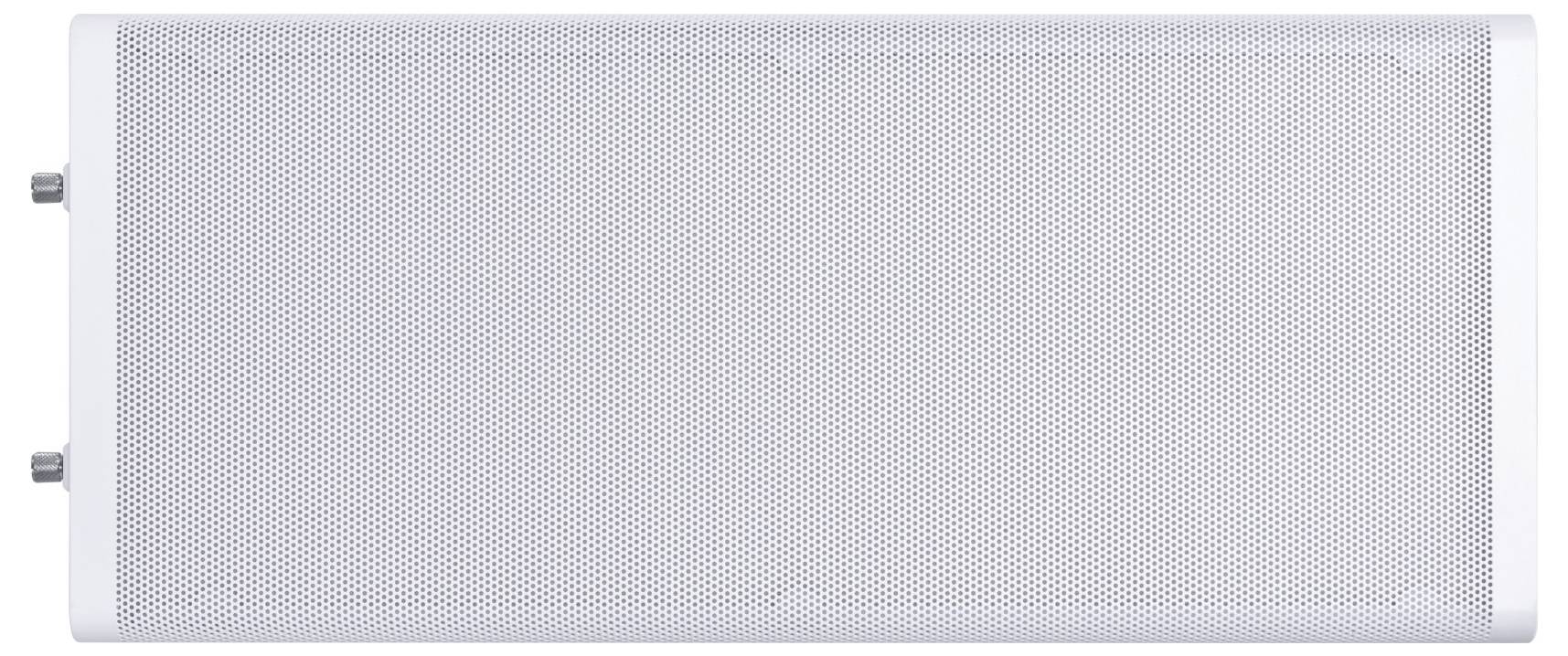

- Mesh panels on sides and cover for excellent airflow
- Flexible adaptable: Let your imagination run free
- Excellent cooling thanks to space for 360 mm radiators
- Suitable for Micro-ATX or Mini-ITX mainboards in form factor
- Supports different power supplies from SFX to ATX
Technical specifications
- Material: Steel, plastic
- Volume: 26.3 l
- Total possible fans:
- Cover: 3x 120 mm / 2x 140 mm
- Side: 3x 120 mm / 2x 140 mm
- Base: 3x 120 mm (max. GPU-height 3 slots/61 mm for 25-mm fans)
- Rear side 1x 120 mm
- Radiators possible:
- Cover: 1x 360 mm / 1x 280 mm / 1x 240 mm
- Side: 1x 360 mm / 1x 280 mm / 1x 240 mm
- Base: 1x 240 mm / 1x 360 mm (only when fan is mounted below radiator)
- Dust filter: Base
- Drive bays:
- 2x 2.5 inch (tray)
- 1x 3.5 / 2.5 in (base)
- Power supply: ATX / SFX / SFX-L (optional)

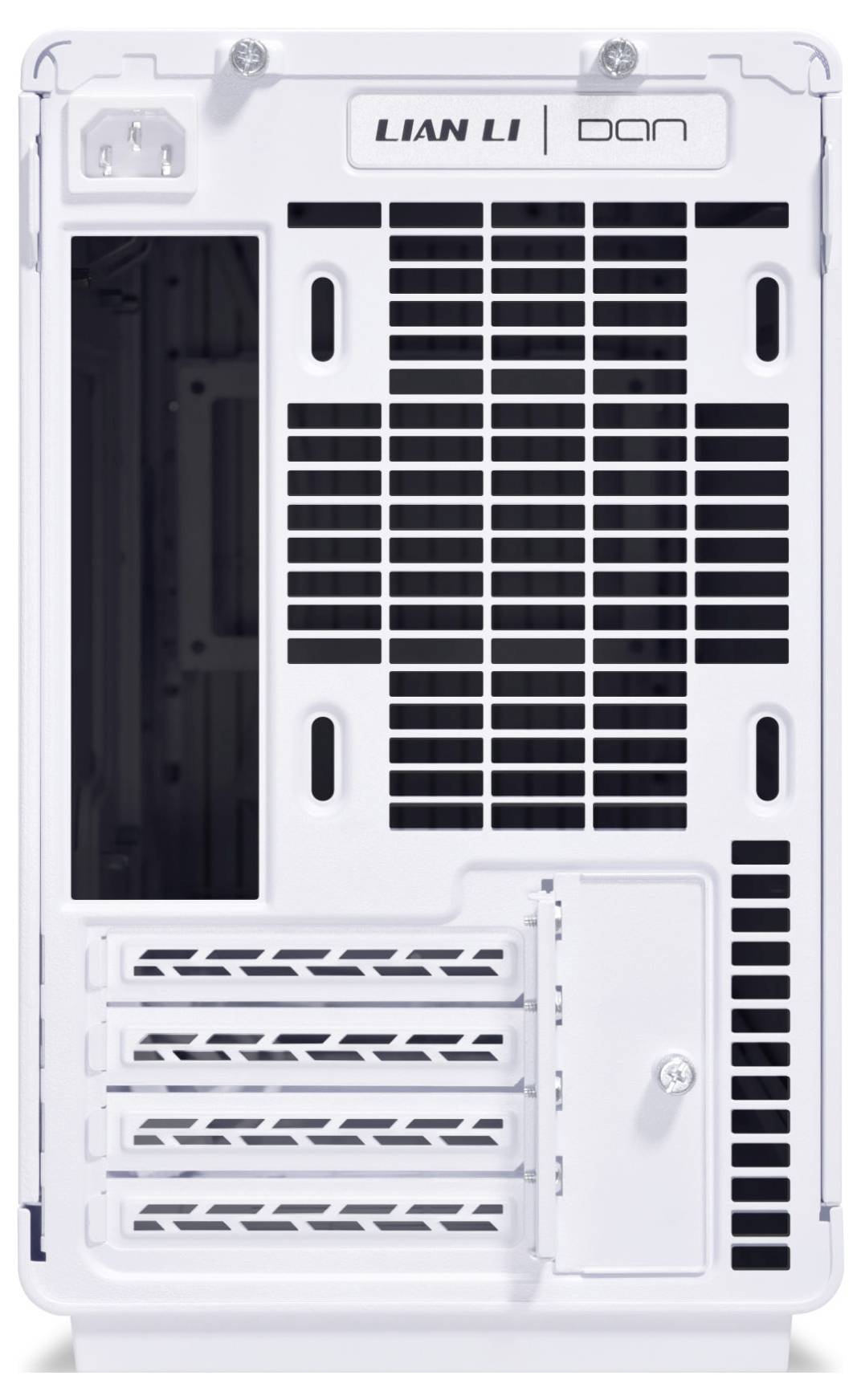

- Extension slots 4
- I/O-panel:
- 1x USB 3.1 (type C, USB 3.2 Gen 2, max. 10 Gbps, internal connection)
- 2x USB 3.0 (type A, USB 3.2 Gen 1, max. 5 Gbps, internal connection)
- 2 x 3.5 mm jack (audio in/out)
- Maximum CPU-cooler height 165 mm
- Maximum graphics card length 415 mm
- Maximum power supply length 220 mm
- Product type
PC casing
- Case type
Microtower
- Factory colour
White
- Interfaces (front)
Audio line in
Audio line out
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
1
- Width
194 mm
- Height
321.5 mm
- Depth
443 mm
- Weight
5000 g
- Form factor
Micro-ATX
Mini-ITX
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 194 x 321.5 x 443 mm
- Keyboard layout
German, QWERTZ
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339209 Lian Li DAN Cases A3 Microtower PC casing White
Description
Small case, large Power: The Lian Li DAN cases A3-mATX micro-ATX housing
If you're looking for a small form factor chassis for high-performance PC hardware, look at the Lian Li DAN Cases A3-mATX. With an approx. 26-liter capacity, this Micro ATX housing is compact and requires very little space on your desk. Nevertheless, this mini tower is suitable for high-end PC components and meets their cooling requirements.
Flexibility meets performance: The fan and cooling options of the Lian Li DAN Case A3-mATX
The Lian Li DAN cases A3-mATX offers space for up to 10 fans in the 120-mm format. These are distributed as follows: Three on the lid, three on the side, three on the floor and one on the back. Alternatively, two 140 mm fans can be mounted on the cover and the sides. With 25 mm thick fans on the casing floor, the height of the GPU is limited to 61 mm (3 slots). A maximum height of 165 mm is provided for CPU air cooler.
Lian Li and Daniel Hansen have also thought of water cooling while developing the A3-mATX: A radiator can be placed at three places in the housing: On the cover or the side there is maximum space for a 360 mm (triple radiator) or 280 mm (Dual radiator). You have to decide on one of the two positions. An additional 240 mm radiator can be installed on the floor. Mounted with the fans below the radiator, even a 360-mm radiator can be installed.
Customizable configuration: The versatile possibilities of the Lian Li DAN Cases A3-mATX
The Lian Li DAN Cases A3-mATX is suitable for a motherboard in the form factor Micro-ATX or Mini-ITX. Contrary to a mini-ITX housing, the PC-Case with 4 extension slots offers the possibility of a 4-slot high and take up to 415 mm long graphics card.

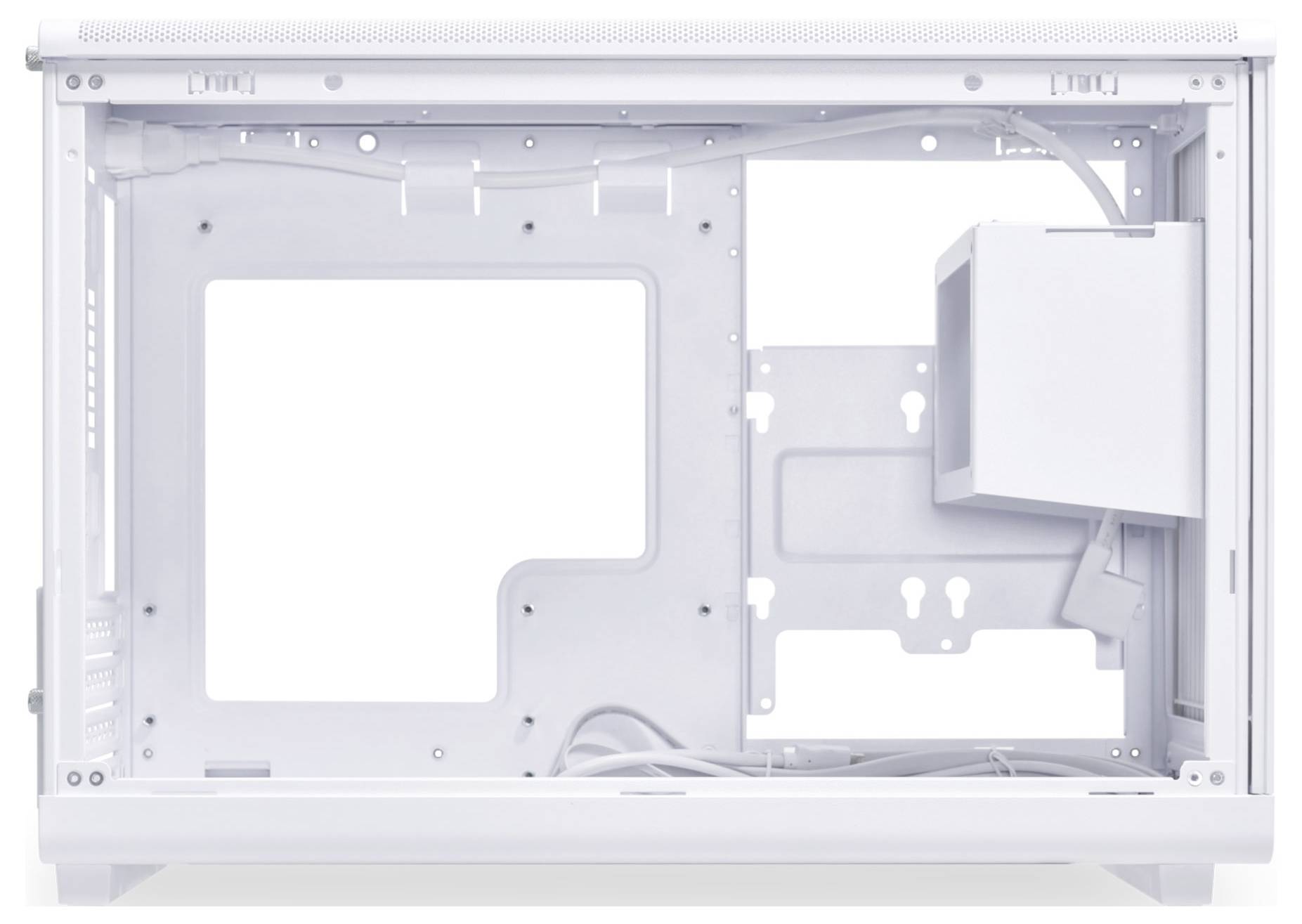

Two 2.5-inch SSDs can be installed on one bracket. Moreover, a 3.5-inch HDD or an additional 2.5-inch drive can be mounted at the bottom of the casing. For the power supply you have the choice between ATX, SFX-L and SFX. It can be mounted flexibly in the front or on the side, in order to create more space for graphics card or radiator - depending on your preferences. In general, the smaller the power supply, the more space for the other hardware.

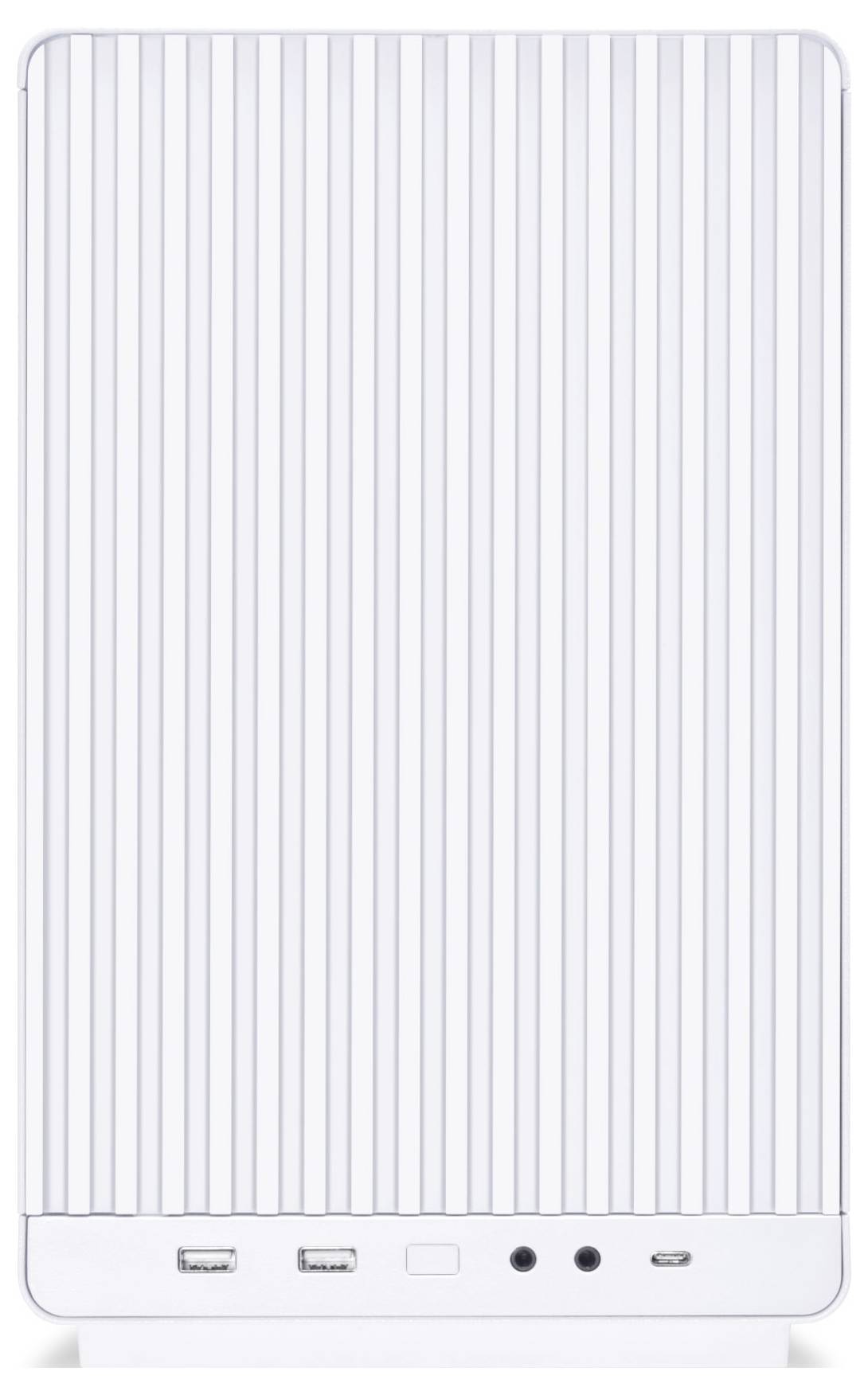

The I/O panel on the front of the Lian Li DAN Case A3-mATX offers two USB 3.0 type A, one USB 3.1 type C, two 3.5 mm jack sockets (mic-in/audio-out) and a Power button for power-on.
This text is machine translated.
Features
- Compact Micro ATX casing in black
- Made of steel and plastic
- For Micro-ATX or Mini-ITX mainboards
- Four-slot GPU up to 415 mm
- Suitable for 360 mm radiator
Hints
Note: The Lian Li DAN Cases A3-mATX has many configuration options, but the space in this enclosure is limited. The size and position of the power supply are decisive for the selection of the right PC components. Therefore, we recommend that you plan carefully in advance using the manual.
