Lian Li O11 Vision-M Microtower PC casing White Window

The Lian Li O11 Vision-M is a compact mATX PC-casing for latest hardware and a visually appealing showcase construction. Through the Dual-chamber design the power supply, drives and cables remain in the second chamber, while you have a view of the motherboard, graphics card and your cooler at the front. Three Tempered Glass panels provide a panoramic look, without any distracting brace blocking the view.

Lian Li O11 Vision-M mATX housing: Space for mini-ITX, micro ATX and high-end GPUs
The O11 Vision-M offers, despite its compact size, space for mini-ITX and micro ATX mainboards. With five PCIe-slots there is enough space for a large graphic card. Even long custom designs are no problem: GPUs up to 410 mm long are supported. In the second chamber you can hold an ATX power supply up to 182 mm. In addition, there is space for up to three drives - Ideal, in order to keep the power supply, memory and cable out of sight.

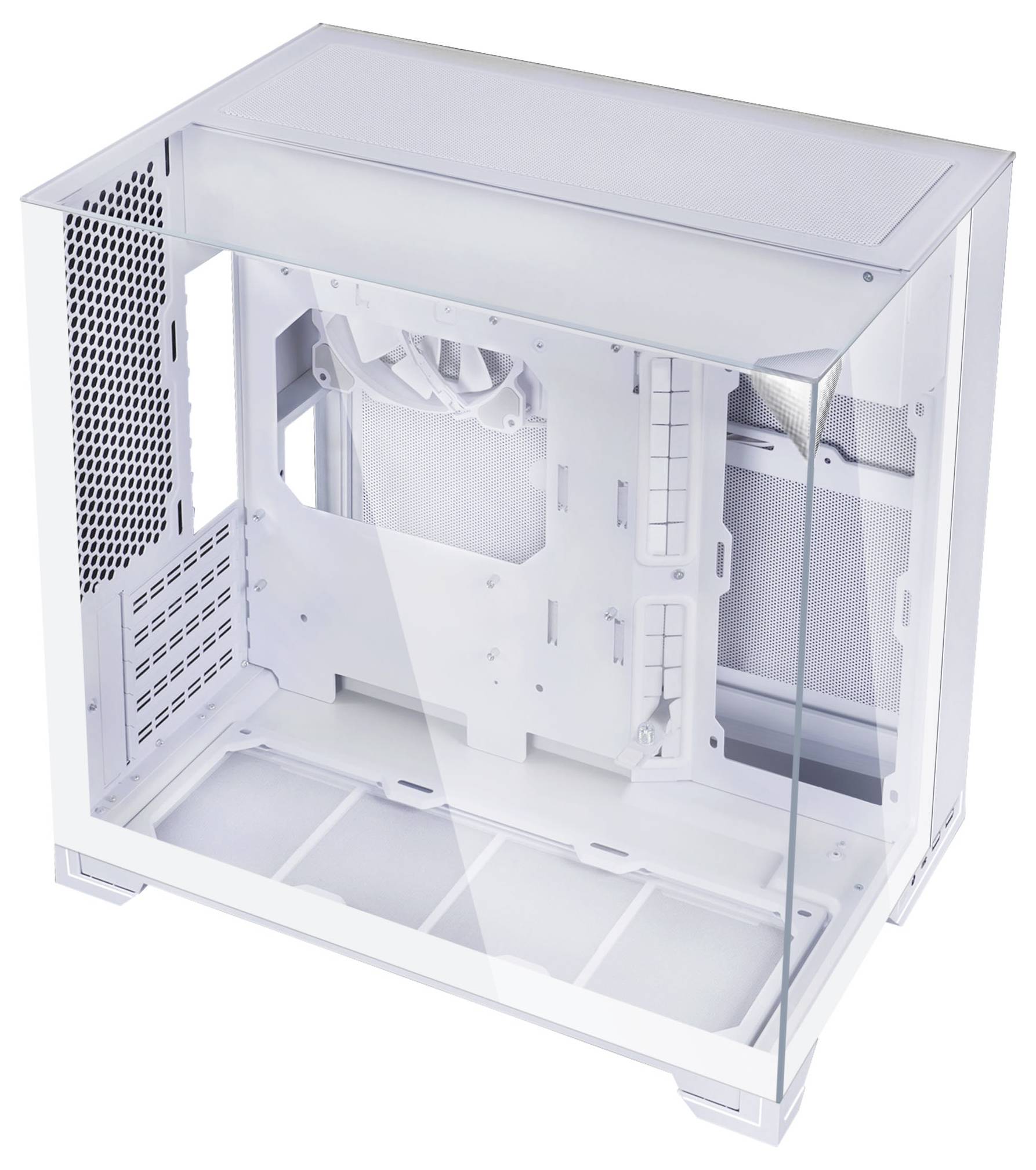

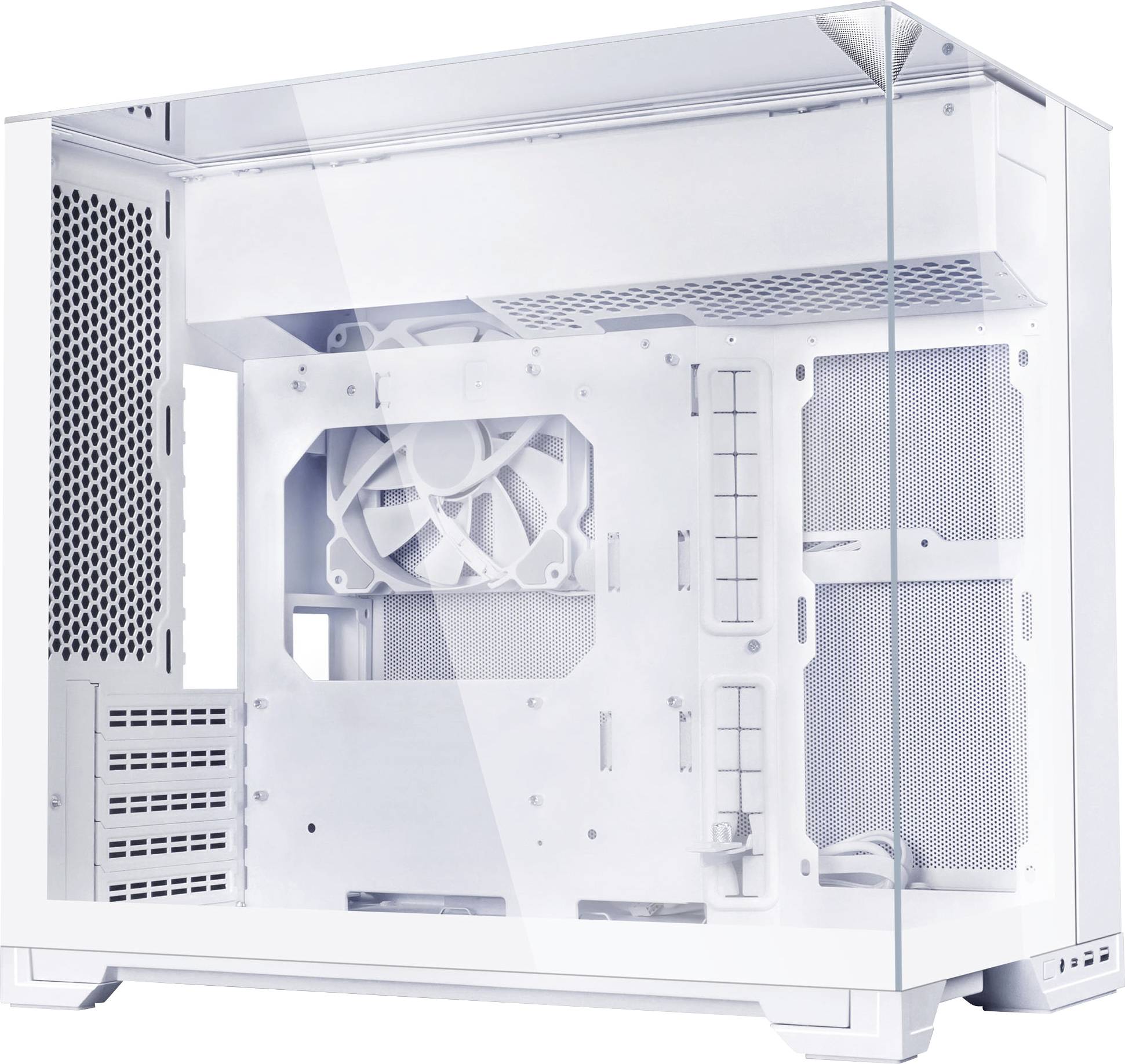

Triple Tempered Glass PC casing: Panoramic showcase with lock-and-key
Front, side and cover are made of Tempered Glass. The panels are locked together by means of a lock-and-key mechanism and do not require any additional supports in the corner. This way the interior looks open and you get a clear view of your components.

To prevent the lid from causing heat accumulation despite glass, it has a large mesh section. This range is intended for reliably discharging warm air upwards - particularly useful with fans or a radiator in the lid.

240/360-mm radiator in lid and well thought out hose management for AiOs
In the cover there is place for a 240 mm or 360 mm radiator. The radiator mount offers an integrated tube routing so that you can guide the tubes of your AiO up and over the motherboard. This leaves the GPU, RAM and the Showcase area free from horizontal hoses.

Airflow in the Lian Li O11 Vision-M: Up to 12 fans for strong cooling
· Up to 12 fans in total (distributed to the main and back chamber)
· Top 3x 120 mm (or 240/360 mm radiator)
· Bottom: 3x 120 mm
· Side: 2 fan seats
· Rear: 2 fan seats

When cooling your hardware, the O11 Vision-M sets many mounting points and a sensible distribution of the fans. Below you can use 3x 120 mm as intake in order to give the graphics card direct fresh air. Above 3x 120 mm are possible as Exhaust - or a radiator for CPU water cooling. The side and rear seats allow you to fine-tune the airflow depending on the build.

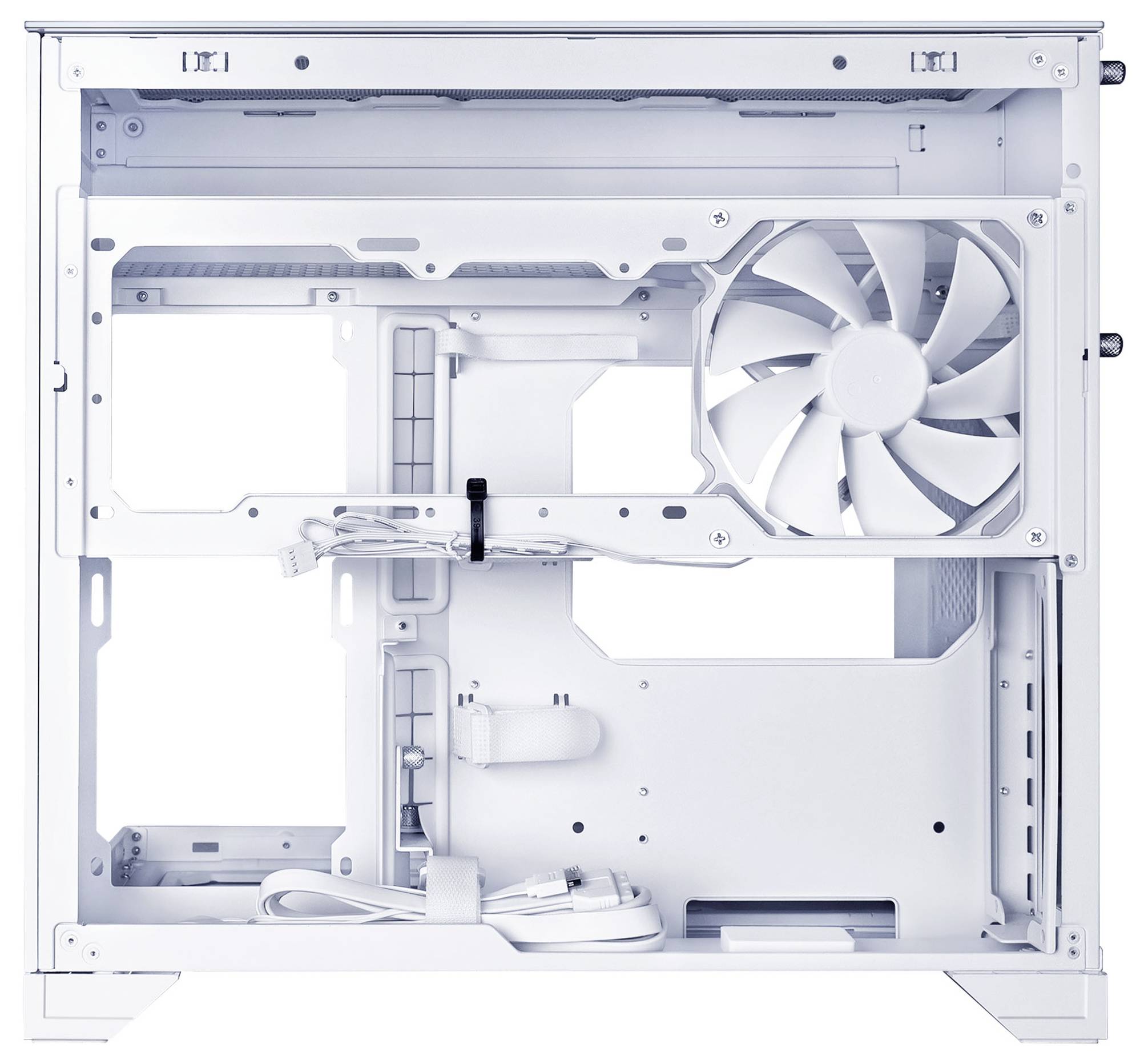

Rear-chamber cooling with pre-installed fan
Fan mounting brackets for three additional fans
In the rear chamber is a removable bracket, which can hold 1x 140 mm and 2x 120 mm fans simultaneously. This is useful if you want additional exhaust air or targeted air flow in the second chamber without changing the look of the main chamber.

Adjustable elements in the O11 Vision-M: Cover, screen options and 3D print divider
For individual builds, the housing offers a changeable layout and a removable cover that visually covers an AiO mounted on top. The cover is prepared so that you can integrate either a Lian Li 8.8-inch Universal Screen (sold separately) or any other slim display. Alternatively, you can exchange it for a Lian Li 9.2-inch LCD kit.

The screen/LCD options are configured via L-Connect 3, for example for system values or own animations, and can also be used as a second display if required. In addition, Lian Li provides a free STL file to create a 3D printable divider. This allows you to visually close the gap between the top edge of the mainboard and AiO and make your build work even more unified.
