Lian Li O11Dynamic XL Midi tower Game console casing Black Built-in lighting, Window, Dust filter
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
14-day return policy included
Lian Li O11Dynamic XL Midi tower Game console casing
Highlights & Details
- Elegant combination of aluminum, tempered glass and steel
- Space for mainboards with E-ATX, ATX, Micro-ATX or Mini-ITX form factor
- 6x 2.5" SSDs & 4x 3.5" HDDs including HDD hot-swap function
- Front panel with 4x USB 3.0 type A & 1x USB 3.1 type C
- Graphics cards up to 44.6 cm long
- Three built-in slots for 360 mm radiators
- Up to ten 120 mm fans possible
Technical specifications
- Product type
Game console casing
- Case type
Midi tower
- Factory colour
Black
- Interfaces (front)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
Headphone jack (3.5 mm)
Microphone (3.5 mm jack)
- 6.4 cm (2.5") internal slots
6
- 8.9 cm (3.5") internal slots
4
- Width
285 mm
- Height
513 mm
- Depth
471 mm
- Weight
10.1 kg
- Form factor
E-ATX
ATX
Micro-ATX
Mini-ITX
- No. of USB type A 3.0 ports
4 x
- Wireless charging
No
- Dim
(W x H x D) 285 x 513 x 471 mm
- Features
Built-in lighting
Window
Dust filter
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Keyboard layout
German, QWERTZ
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2205396 Lian Li O11Dynamic XL Midi tower Game console casing Black Built-in lighting, Window, Dust filter
User & Safety Instructions
User & Safety Instructions 2205396 Lian Li O11Dynamic XL Midi tower Game console casing Black Built-in lighting, Window, Dust filter
Description
Lian Li manages again to improve an already extremely functional and also smart housing. The Lian Li O11Dynamic XL (ROG Certified) MIDI-Tower combines brushed aluminum with temperglass elements. The dimensions of the housing have been adjusted so that even the huge SSI EEB motherboard ASUS ROG Dominus Extreme with Intel's C621 chipset and socket 3647 for Xeon processors can be comfortably accommodated in the case with the help of an optional extension rail. The wide two-chamber design of the MIDI tower remained, which offers much space for further advanced gaming components together with excellent cable management and enables the installation of an extensive air or custom water cooling.
This text is machine translated.
This text is machine translated.
Features
- Dimensions 285 x 513 x 471 mm (W x H x D)
- Material: Steel (interior), aluminum (cover, side panel, front, feet), temperature glass (front, side panel)
- Weight: approx. 10.1 kg
- Colour: Black
- Form factor: E-ATX, ATX, Micro-ATX, Mini-ITX (EEB with optional expansion rail)
- Total fan possible:
- 3x 120 mm / 2x 140 mm (bottom)
- 3x 120 mm / 2x 140 mm (lid)
- 3x 120 mm (side part, front side)
- 1x 120 mm (rear-side)
- Radiator mounts (no fan slots):
- 1x max. 360 mm / 280 mm (lid)
- 1x max. 360 mm / 280 mm (bottom)
- 1x max. 360 mm (side part, without SDD brackets)
- Filter: Bottom, cover, side part
- Drive bays:
- 4x 2.5/3.5-inch drives (internal)
- 6x 2.5-inch drives (internal)
- Power supply: 1x ATX (optional)
- Extension slots: 8

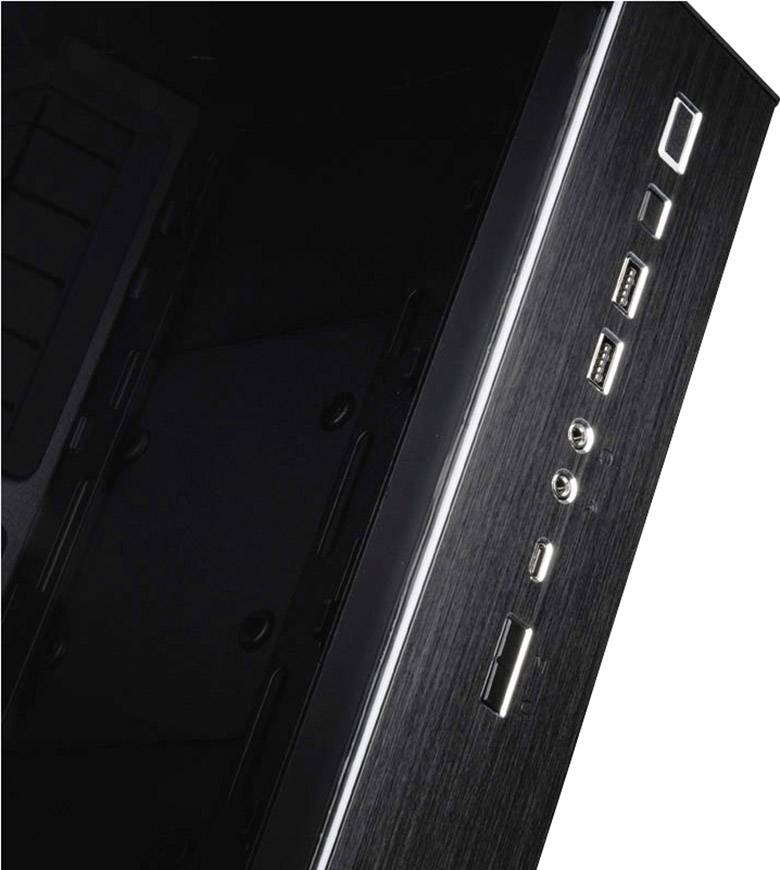

- I/O panel:
- 1x USB 3.1 type C (internal connection)
- 4x USB 3.0 type A (internal connection)
- 1x per audio in/out
- On/off switch
- Maximum graphics card length 446 mm
- Maximum CPU cooler height 167 mm
- Maximum power supply length 210 mm
