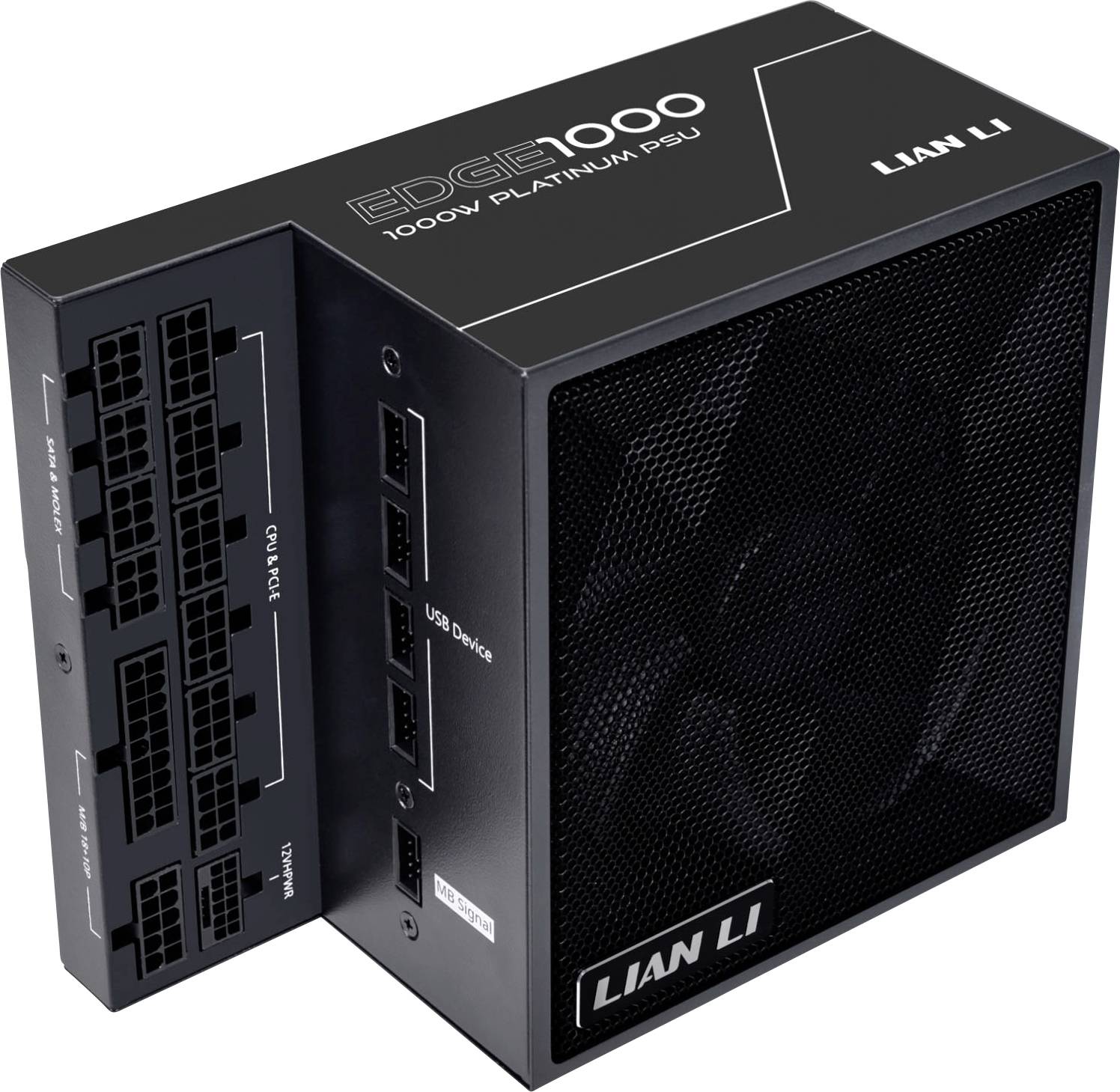

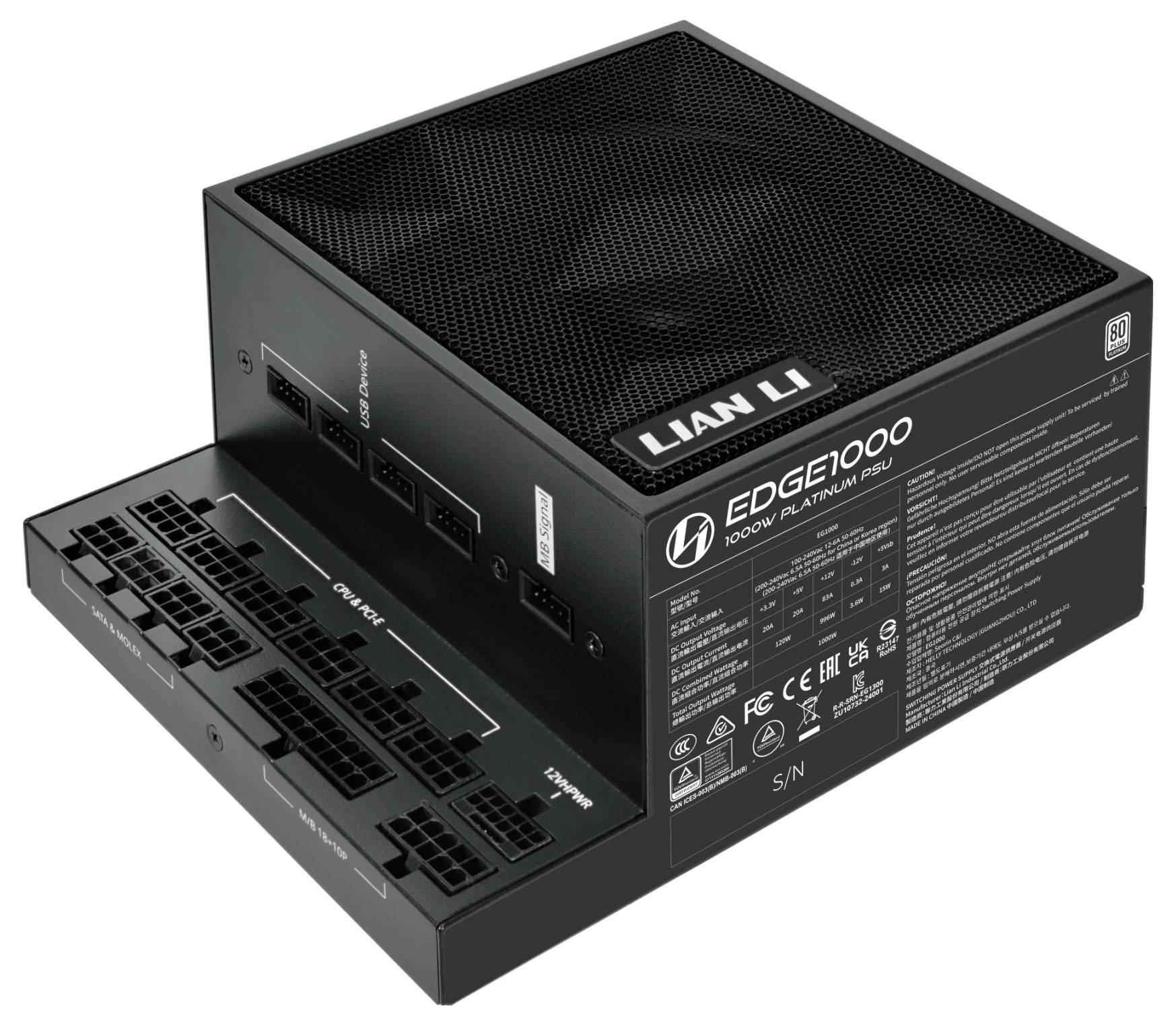

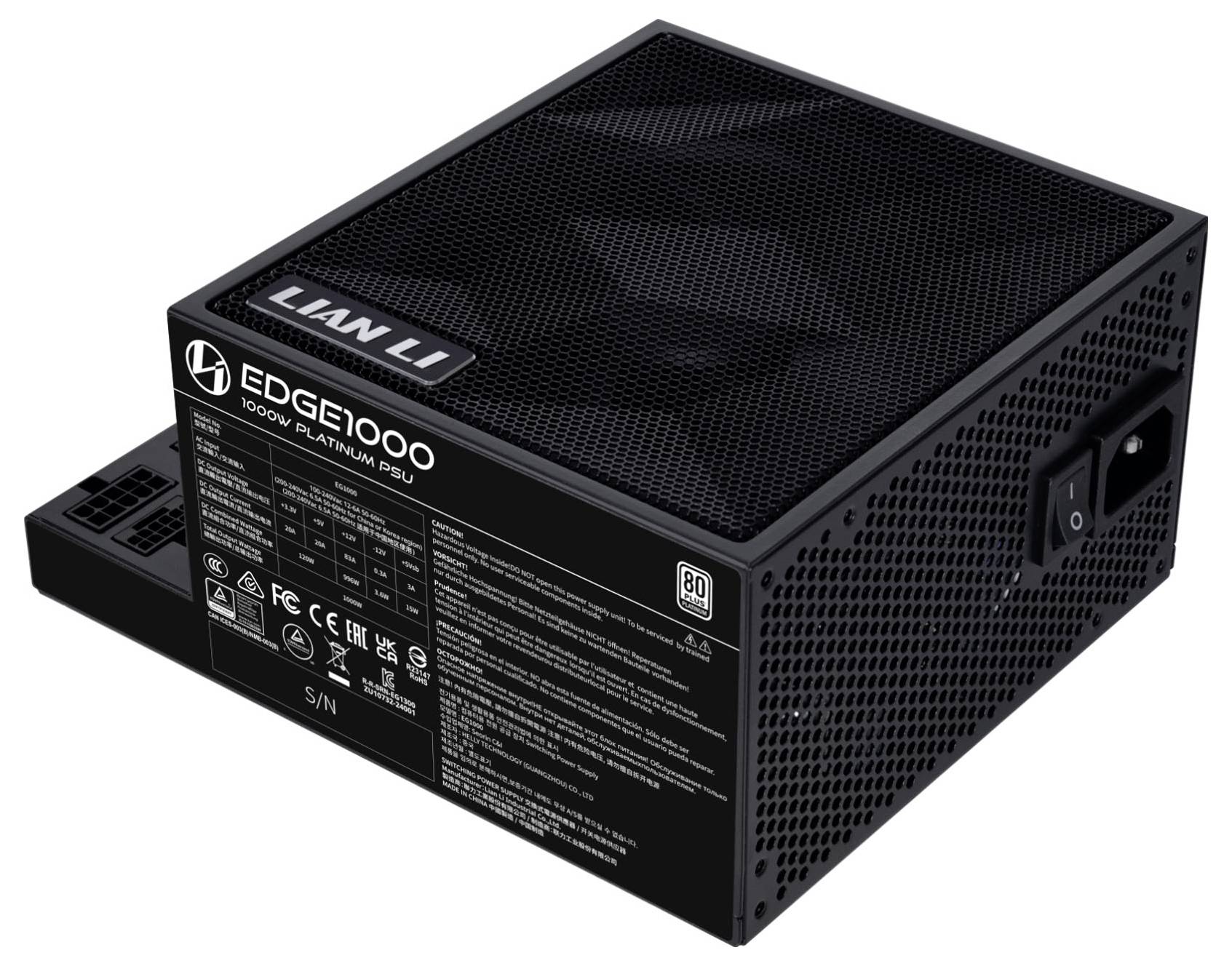

Lian Li PC power supply unit 1000 W SFX 80 PLUS Platinum
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
1000 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
SFX
Highlights & Details
Lian Li PC power supply unit
- Power supply unit output 1000 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Material: Steel
- Colour, black
- Fan:120 mm PWM (FDB / max. 33.6 dB(A) at 2,400 rpm)
- ATX 3.0/3.1 standard
- Efficiency: 92.36% at 50% load and 230 volt input voltage (80 PLUS Platinum / Cybeetics Platinum / PPLP Platinum)
- Formfactor: ATX
- Power: 1,000 W
- +3.3V:20 A/66 W
- +5V:20 A/100 W
- +3.3V & +5V: 120 W (COMBINED)
- +12V: 83 A / 996 W (COMBINED)
- -12V 0.3 A / 3.6 W
- +5Vsb 3/15 W

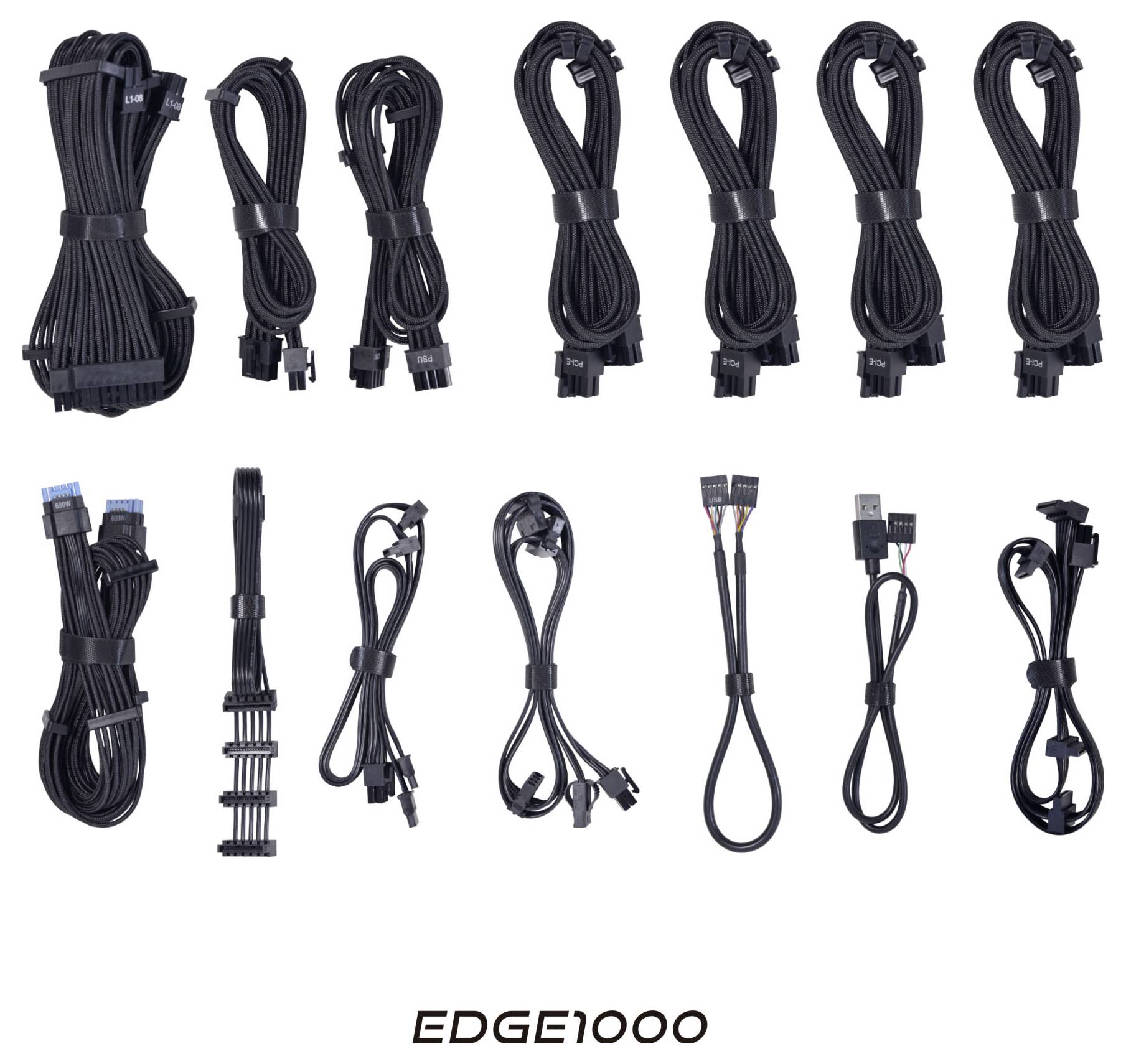

- Connections (modular):
- 1x 20+4-pin (500 mm)
- 1x 4+4-pin (550 mm)
- 1x 8-pin (550 mm)
- 4x 8- / 6+2-Pin PCIe (550 mm)
- 1x 12V-2x6 (550 mm)
- 1x 4x SATA (50 mm - 150 mm - 150 mm - 150 mm)
- 1x 4x SATA (255 mm - 15 mm - 15 mm - 15 mm)
- 1x 4x SATA, Y-splitter (275 mm - 125 mm)
- 4x 4-pin Molex (50 mm - 150 mm - 150 mm - 150 mm)
- 1x USB 9-pin to USB 9-pin (350 mm)
- 1x USB 9-pin to type A (550 mm)
- Protective circuits:
- OVP (protection against overvoltage and undervoltage)
- UVP (undervoltage protection)
- SCP (short-circuit protection)
- OPP (overload protection)
- OTP (excess temperature protection)
- OCP (over-current protection)
- Product type
PC power supply unit
- PSU output power
1000 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
SFX
- Factory colour
Black
- ATX version
ATX 3.0
- -12V / DC
0.3 A
- +12 V/DC (1)
83 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 8-pin 12 V
1
- 20+4-pin.
1
- 4-pin Molex
4
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
4
- 5-pin SATA
12
- Features
PCIe Gen 5.1
- Output rating > 500 W
1000 W
- Output rating > 700 W
1000 W
- Power rating
751 W -
- Fan size
120 mm
- 3.3V DC
20 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531828 Lian Li PC power supply unit 1000 W SFX 80 PLUS Platinum
Description
Powerful ATX-3.1 power supply with 1,000 watt, L-shaped design for Dual-chamber casing,
This text is machine translated.
This text is machine translated.
Features

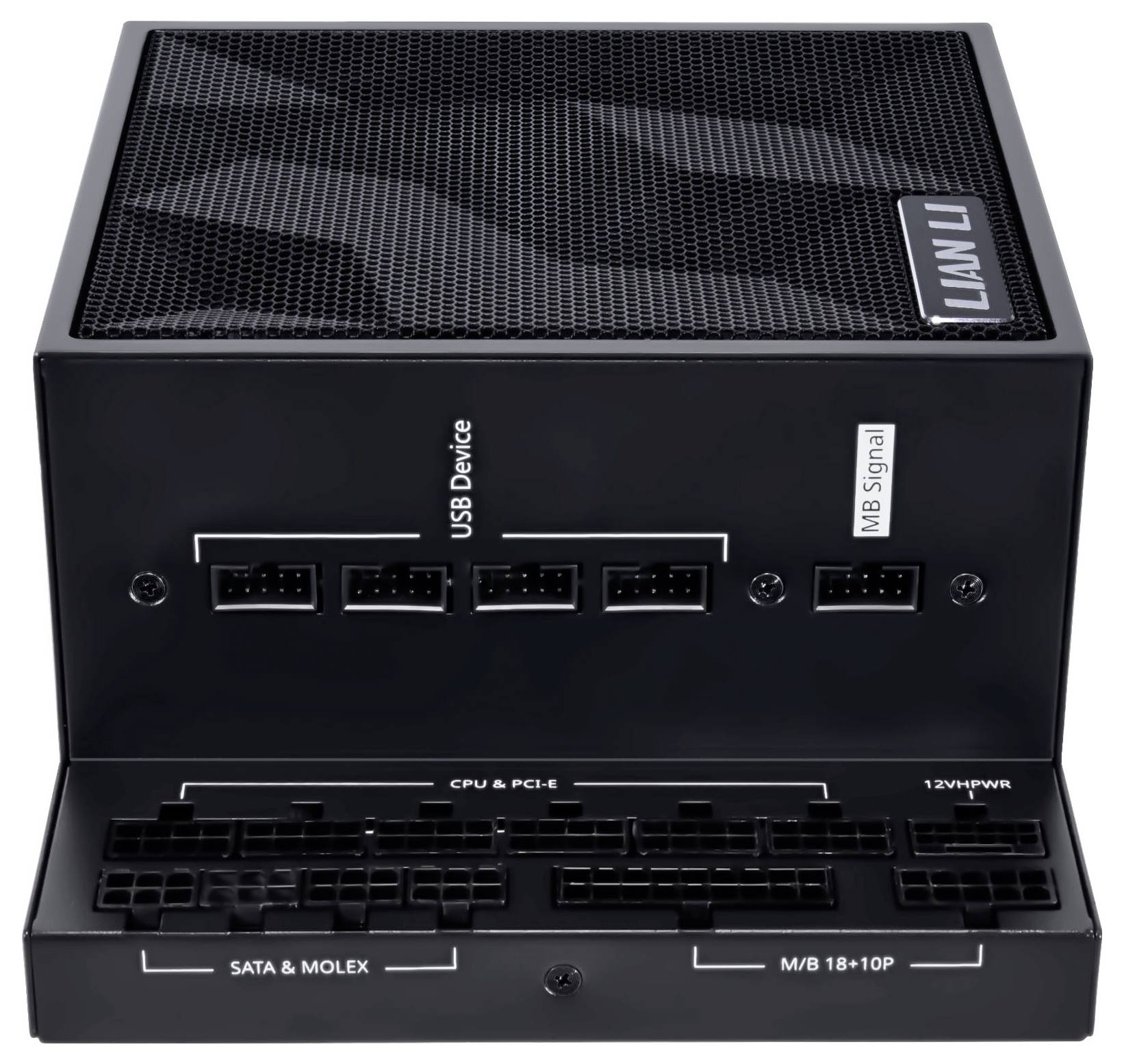

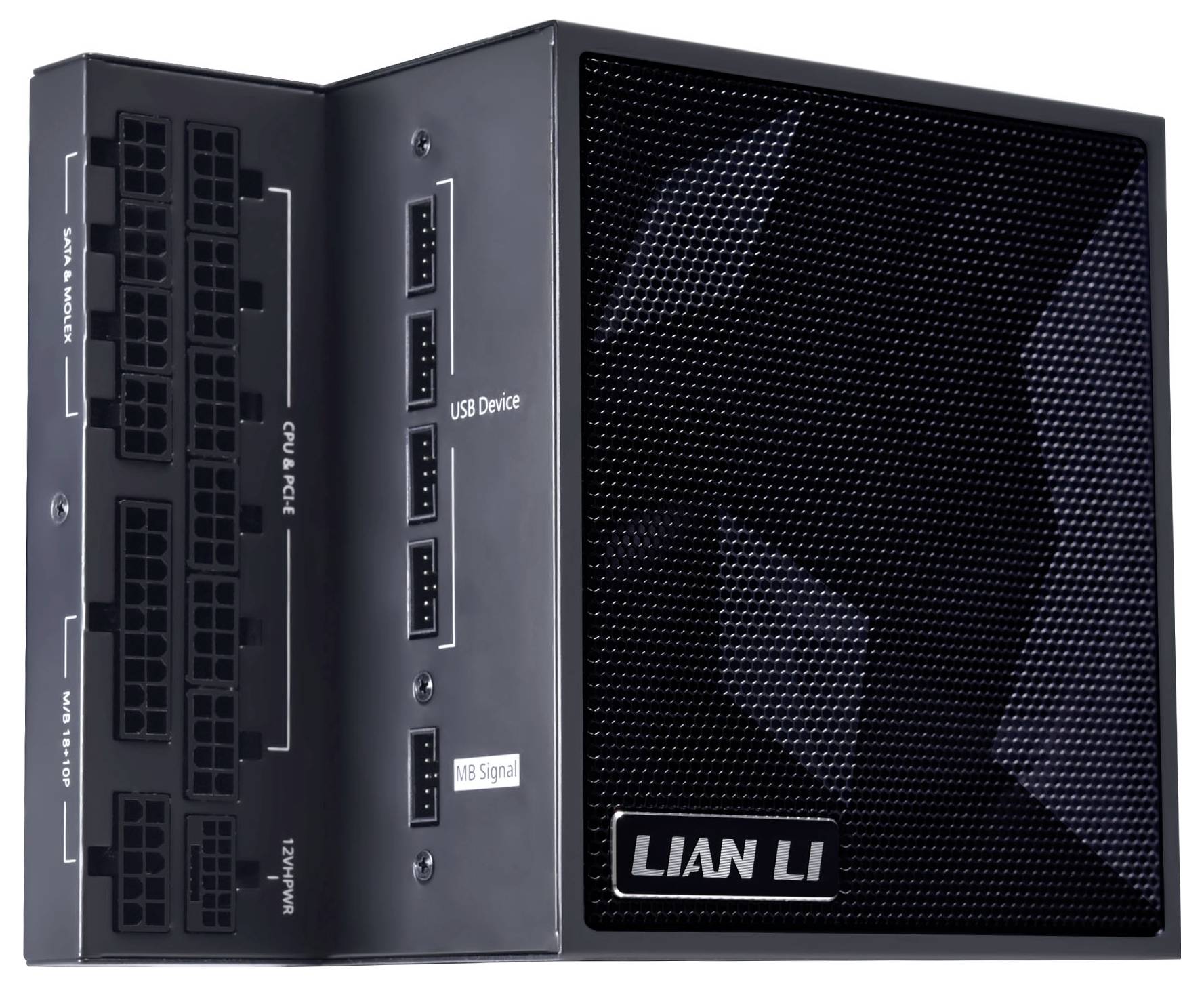

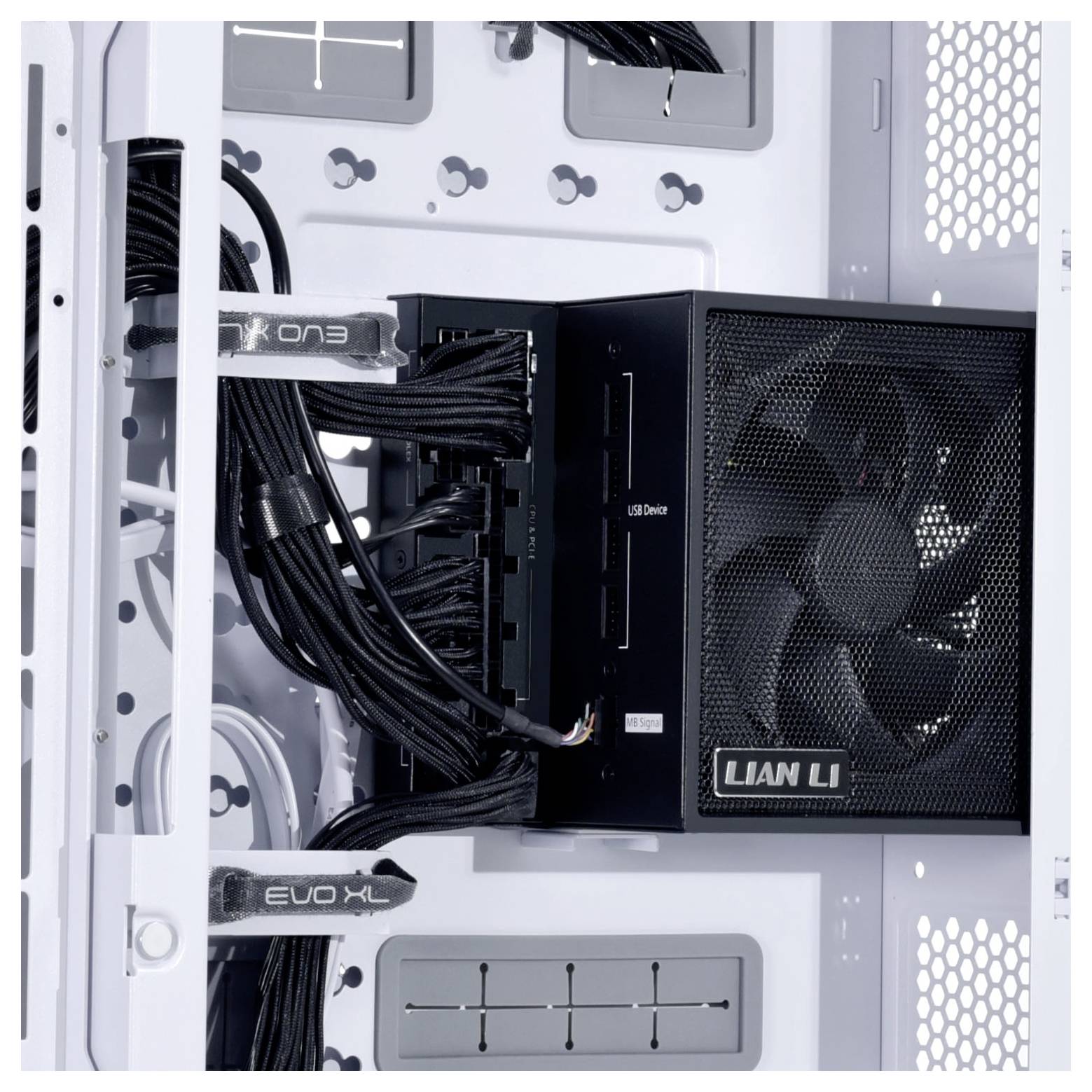

- L-shaped design simplifies cable management for Dual-chamber casings
- Integrated USB-hub with four headers for additional USB-devices
- Excellent efficiency with Platinum-certification

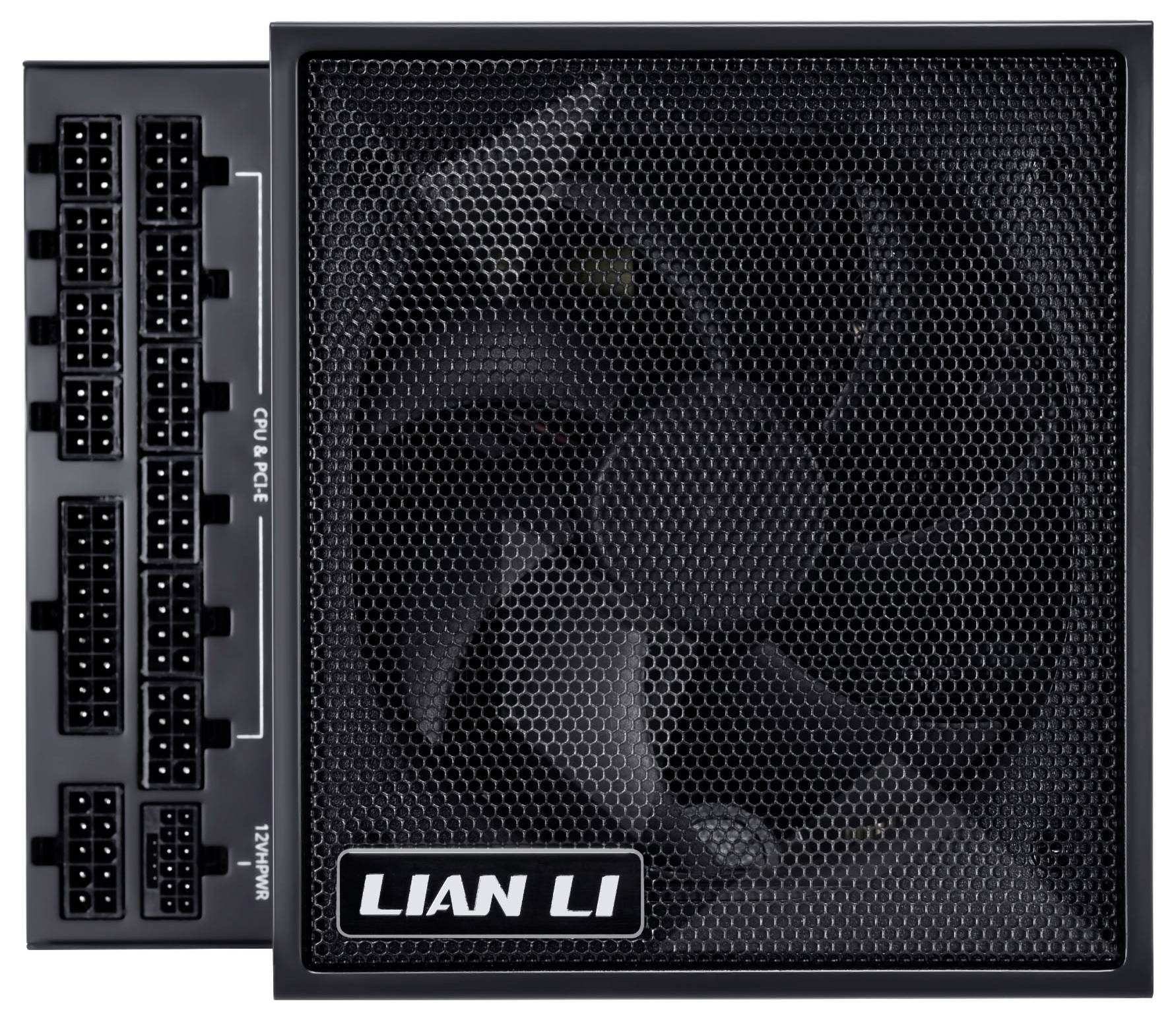

- Steel casing with mesh-panel and 120-mm fan for low-noise and cool operation
- Secure power supply, thanks to PCIe-5.1 standard for graphics cards with 12VHPWR
- Extensive protective circuits: OVP, UVP, SCP, OPP, OTP and OCP
- Fully modular, with individually sleeved connection cables and cable combs
