Lian Li x DAN Case B4 Wood Edition Microtower PC casing Black, Wood
EAN:
Part number:
Item no:
Highlights & Details
Lian Li x DAN Case B4 Wood Edition Microtower PC casing
- Micro ATX housing with real wood
- Graphics cards up to 358 mm
- CPU cooler up to 166.5 mm height
- ATX-power supplies up to 140 mm or SFX-power supply
- Motherboards to Micro ATX
Technical specifications
- max. CPU-cooler height 165 mm
- max. Graphics card length 358 mm
- max. Power supply length / depth 140 mm
- Fan slots (base): 120mm fan (3x), 140mm fan (2x)
- Fan slots (front side): 120mm fan (1x)
- Fan slots (rear): 120mm fan (1x)
- Fan slots (side): 120mm fan (3x), 140mm fan (2x)
- Fan slots (cover): 120mm fan (2x)
- max. Number of fans: 10
- max. Radiator compatibility 1x Triple (360 mm)
- Radiator/AiO Support (page): 240mm radiator, 360mm radiator
- Preinstalled fan 2x 120 mm
- Product type
PC casing
- Case type
Microtower
- Factory colour
Black
Wood
- Interfaces (front)
Audio line in
Audio line out
USB type A
USB C®
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
1
- Width
191 mm
- Height
207.5 mm
- Depth
406.95 mm
- Form factor
Micro-ATX
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 191 x 207.5 x 406.95 mm
- Illumination
no
- Built-in speaker(s)
no
- Cable management
yes
- On/off button
yes
yes
- Liquid cooling installed
no
- Capacity
21.3 l
- Anti-dust filter
yes
- Fan speed
0 - 1800 RPM
- Number of front fans supported (max)
1
- Number of side fans supported (max)
3
- Number of rear fans supported (max)
1
- Number of bottom fans supported (max)
3
- Built-in display
no
- Power supply included
no
- Side window
no
- Maximum CPU cooler height
16.2 cm
- Maximum graphics card length
35.8 cm
- Liquid cooling capability
yes
- Maximum PSU length
14 cm
- Combo headphone/mic port
yes
- Maximum airflow
64.2 cfm
- Maximum air pressure
2.4 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3796484 Lian Li x DAN Case B4 Wood Edition Microtower PC casing Black, Wood
Description
The Lian Li x DAN Case B4 Micro-ATX brings a lot of hardware support in a compact 21.3-liter format. It is suitable for builds that require little space but are not supposed to be a typical mini-PC solution. Micro ATX mainboard, long graphics card, ATX or SFX power supply and flexible cooling options fit in a casing, which can be set up vertically or horizontally. The Wooden Edition combines aluminum mesh panels with a front made of real walnut wood.
· Compact SFF format: 21.3 liter volume with Micro ATX support
· Plenty of space for GPUs: Graphics cards up to 358 mm possible
· Flexible power supply selection: Dedicated holders for ATX and SFX power supplies
· Airflow layout: Two addressable 120 mm fans are pre-installed
· Versatile positioning: Can be used horizontally or vertically
Lian Li x DAN B4 Micro-ATX Housing: 21.3 liter volume with lots of hardware support
The Lian Li x DAN B4 uses its 21.3-liter volume efficiently. It supports Micro ATX mainboards, graphics cards of a length up to 358 mm and CPU cooler up to 166.5 mm height. The casing is thus suitable for compact gaming and workstation systems, which contain more than basic hardware.
ATX or SFX: Power supply selection suitable for cooling
Depending on the cooling configuration you can install an ATX-power supply up to 140 mm or an SFX-power supply. Separate mounting brackets are provided for both variants. To test the enclosure for either maximum compatibility or more space for water cooling.
The power supply is prepared for different housing orientations. The rotating AC connection simplifies cable routing: In horizontal operation it points outwards, in vertical operation excess cable length can be accommodated in the housing.
Set up vertically or horizontally
The B4 can be used either vertically or horizontally, depending on the workplace and setup. For the vertical setup you can supplement the separately available Lian Li Vertical Aerodeck. It expands the fan capacity and creates a direct air path to the graphics card.
Cooling in Lian Li x DAN B4: Plan air and water cooling flexibly
· 2x 120-mm fans pre-installed
· Front fan can be used in connection with air cooler as intake
· Radiator up to 360 mm with SFX power supply or up to 140 mm with ATX power supply
The B4 has several air and water cooling options. Two 120 mm fans are already installed. In addition you can use 120-mm fans in the lower and front areas. The front fan sits on a removable holder and can also be aligned as intake when using an air cooler.
Radiator support depends on power supply configuration
For water cooling, the available space depends on the choice of power supply. With an SFX-power supply you can incorporate an 360-mm radiator. With an ATX-power supply a 140-mm radiator is possible. So you can specifically design the casing for air cooling, compact AiO-solutions or more radiator area.

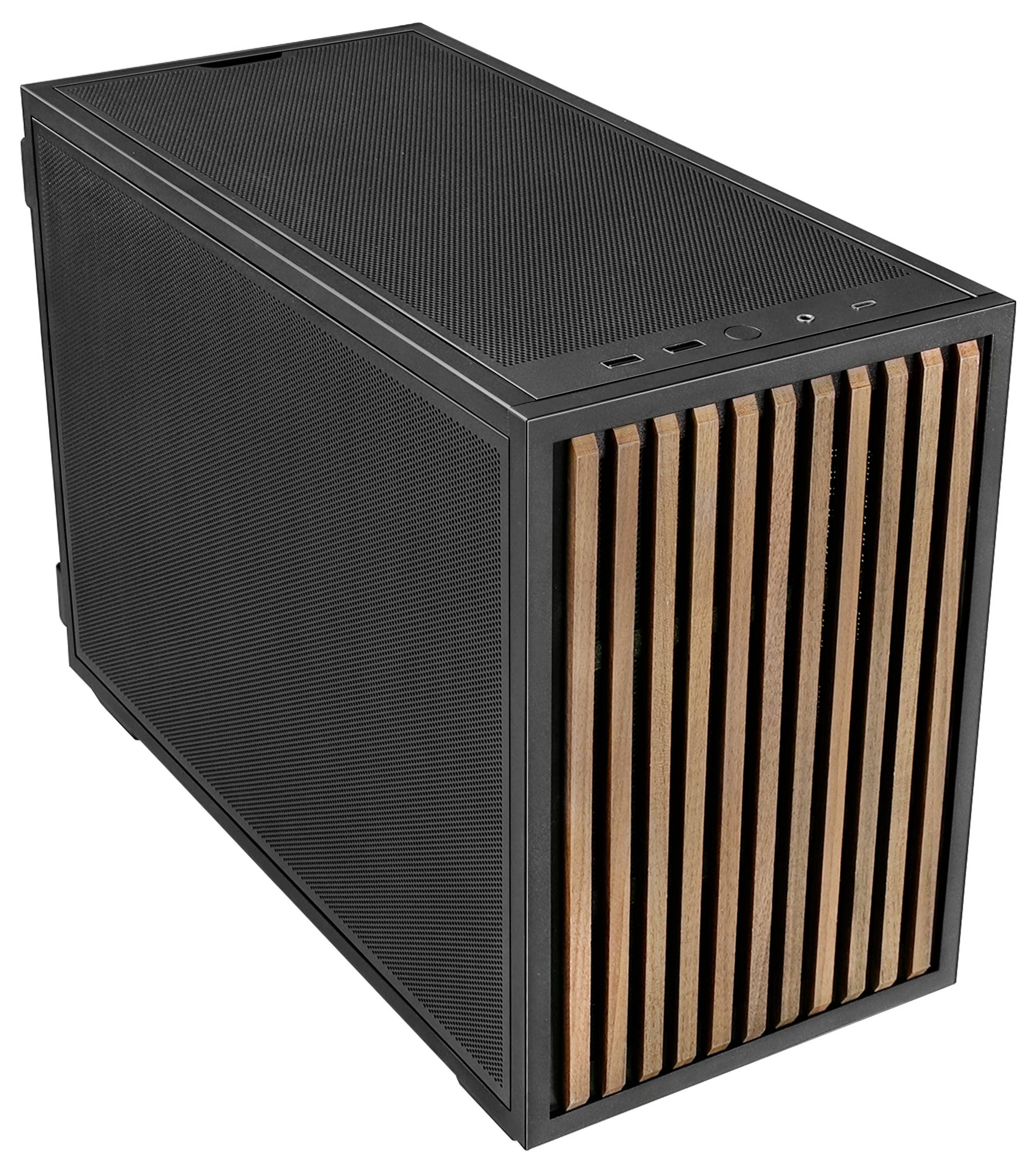

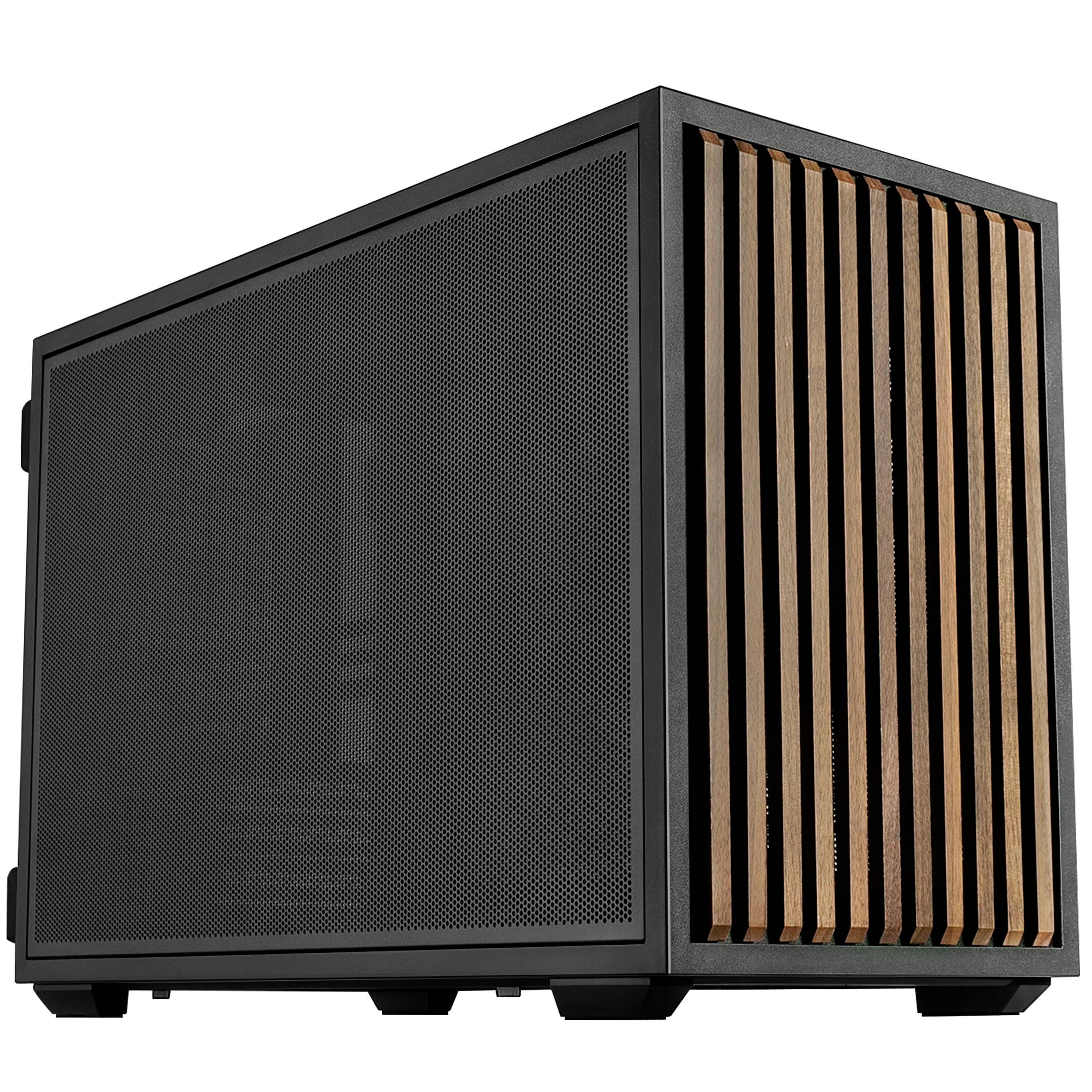

Black Walnut Edition: Mesh, steel frame and real walnut
The combination of mesh, steel and walnut wood ensures a high-quality appearance without losing sight of the function. The B4 m-ATX remains designed for air flow and the best cooling of your hardware in both directions - whether it is lying lying or standing on the table.
This text is machine translated.
