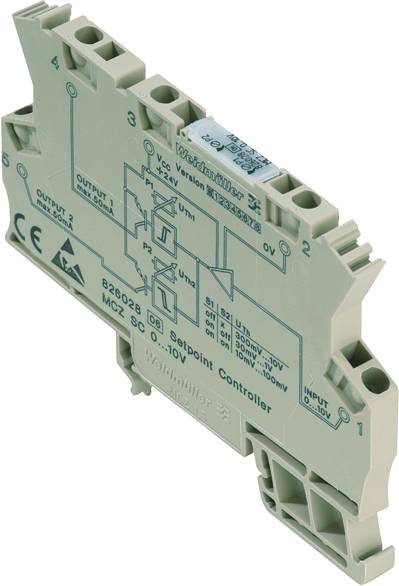

Limit switch Analogue Weidmüller MCZ SC 0-10V Package 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Limit switch
Functions
Voltage
Contact type
Analogue
Type
MCZ SC 0-10V
Datasheet (PDF)
Highlights & Details
Limit switch
- For analog voltage signals
- Industrial packaging, pack of 10
- This text is machine translated.
Technical specifications
- Mounting rail TS 35
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 1.5 mm²
- Number of inputs: 1
- Input voltage 0...10 V.
- Input resistance Voltage: 60 kΩ
- Number of outputs: 2
- Cut-off frequency (-3 dB): 100 Hz
- Power consumption: 15 mA
- Packaging type
Package
- Product type
Limit switch
- Type
MCZ SC 0-10V
- Functions
Voltage
- Operating voltage
24 V DC
- Contact type
Analogue
- Connection
Pull spring
- Min. temperature
0 °C
- Max. temperature
+50 °C
- Width
6 mm
- Depth
63.2 mm
- Dim
(L x W) 91 mm x 6 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
29.6 g
- Length
91 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391296 Limit switch Analogue Weidmüller MCZ SC 0-10V Package 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391296 Limit switch Analogue Weidmüller MCZ SC 0-10V Package 10 pc(s)
Description
MCZ SC monitoring module with external 24 VDC supply and spring-loaded connection. Two switching thresholds adjustable via potentiometers are available via transistor outputs. Thus, monitoring of an upper and lower limit value is possible on a width of only 6 mm. The 24 VDC supply voltage can be bridged on the module side via jumpers ZQV 4N.
This text is machine translated.
This text is machine translated.
