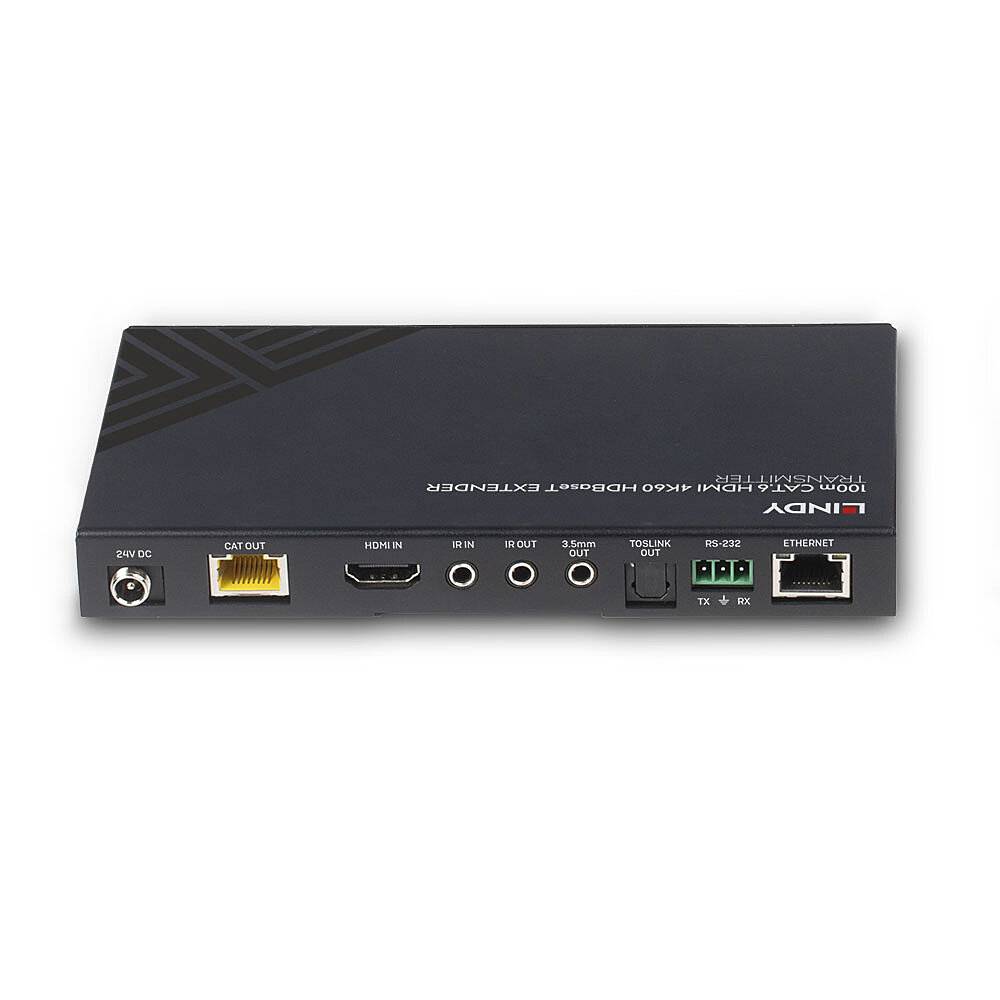

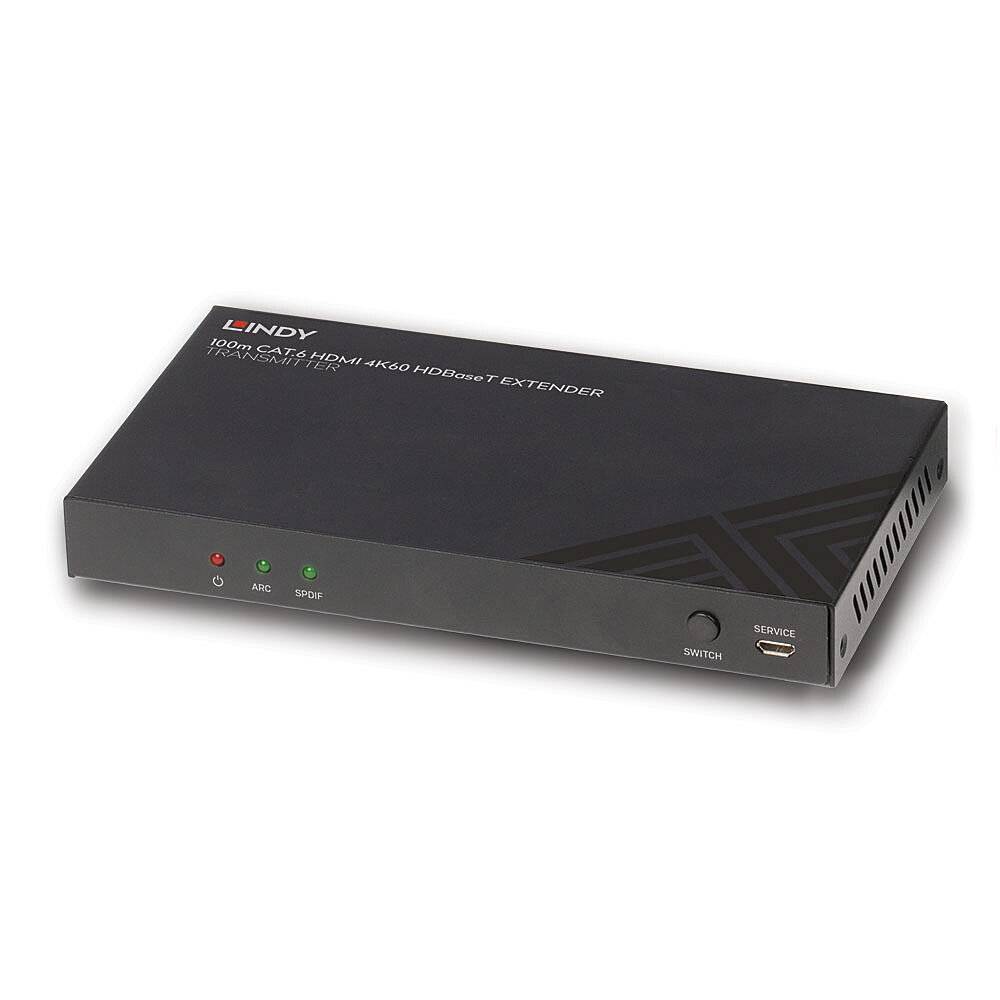

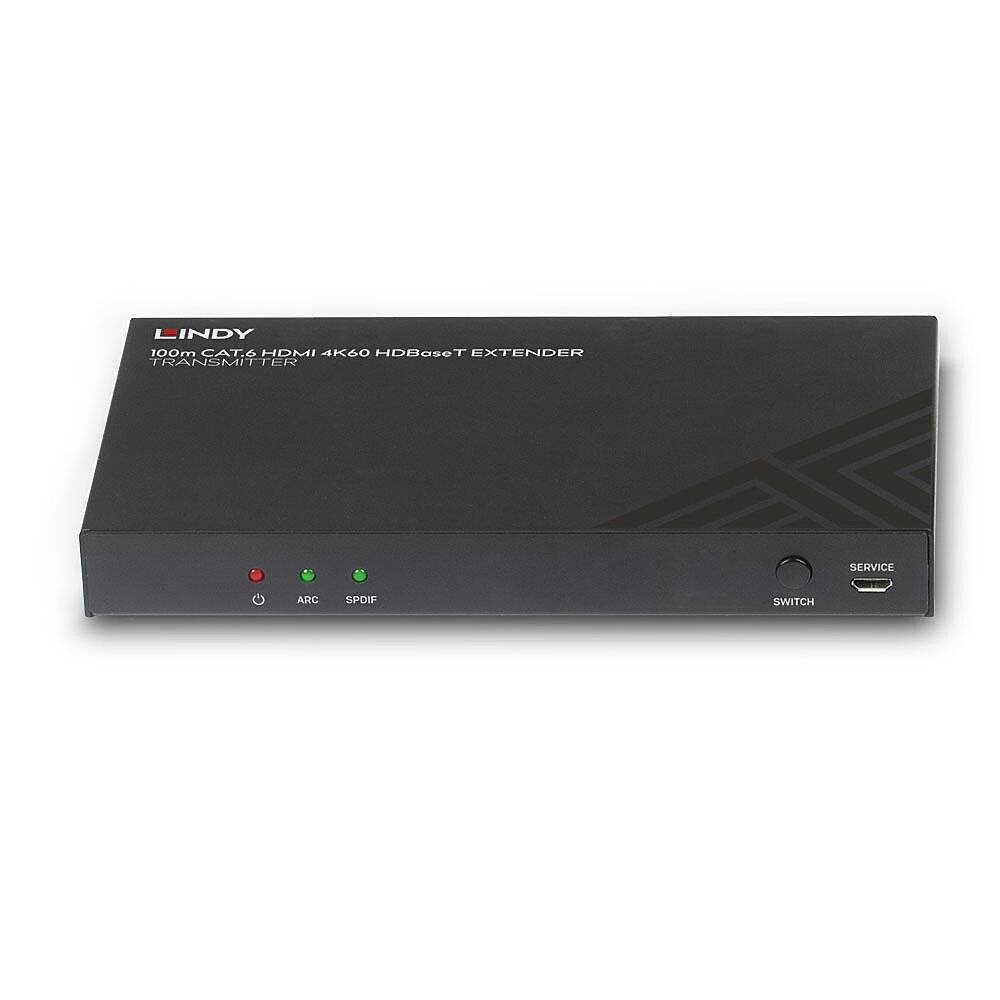

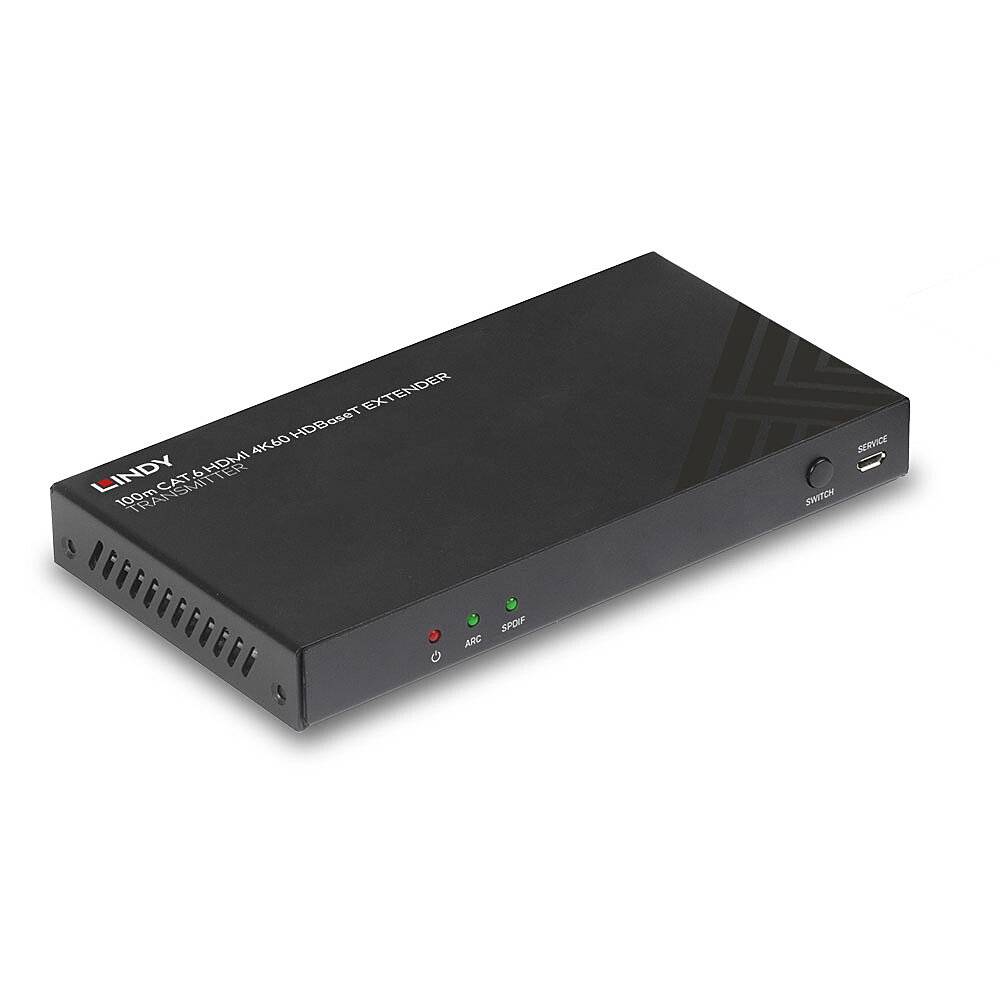

LINDY 38341 IR transmitter 100 m 3840 x 2160 Pixel

The LINDY 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Transmitter is the transmission unit of a powerful, reliable solution to the extension of the range of HDMI signals over long distances via Cat.6 network cables. Combining this transmitter unit with a compatible LINDY HDBaseT receiver provides this solution provides reliable transmission of up to 100 m.

One such receiver is, for example, the 100m Cat.6 HDBaseT Extender Receiver, Art. No. 38342

The following combinations of distance and resolution are possible when using a high quality Cat.6 U/UTP or F/UTP cable:

It supports resolutions of up to 4K Ultra HD for high-definition video playback. The additional support of HDR (High Dynamic Range) enables the display of contents with increased contrast range and a much larger color range. This provides a reliable solution for the set-up of conspicuous digital signage installations in the retail trade, immersive displays at events or appealing setups in larger conference rooms or lecture halls.

The ARC support via HDMI enables the feedback of audio content from the display to a connected amplifier or sound bar. Local audio extraction allows you to connect audio devices for multi-channel immersive sound . Digital audio embedding can either be used on the receiver side or for the source audio signal, WAS can easily be switched via the push-button on the main unit.

Power over cable (PoC) functionality offers additional flexibility. Thus, the power supply together with the data via the Cat.6 network cable can take place in a point-to-point connection between the transmitter and the receiver, so that only one power supply unit is required on the transmitter for the power supply of the entire system. Ideal, for example if only a few sockets are available on the receiver side of the installation. In addition, the power supply is secured via a screw-able DC-bushing against accidental loosening of the connection - perfect for professional installations, in which such interruptions could represent a big problem.

With bi-directional IR connections on both sides of the setup the source device can be easily controlled from the display side, as well as the display can be controlled from the HDMI source device side. In combination with the CEC control, which allows commands from a main remote control, this extension system allows complete and easy control of all components for the user. Bi-directional RS-232 and Ethernet connections also enable integration with larger control systems or connection to network switches and hubs with LAN access.

HDBaseT is a world-renowned standard for the high quality distribution of AV content and other signals, power and control over long distances over cost-effective Cat.6 or higher cables.

HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using another type of cable, inserting wall sockets, couplers or patch panels into the signal path reduces possible distances.

Please note: This product uses the DSC compression method to achieve 18G resolutions. If you are using another 18G HDBaseT product in combination with this, please ensure that both products support the same compression type.

This text is machine translated.
