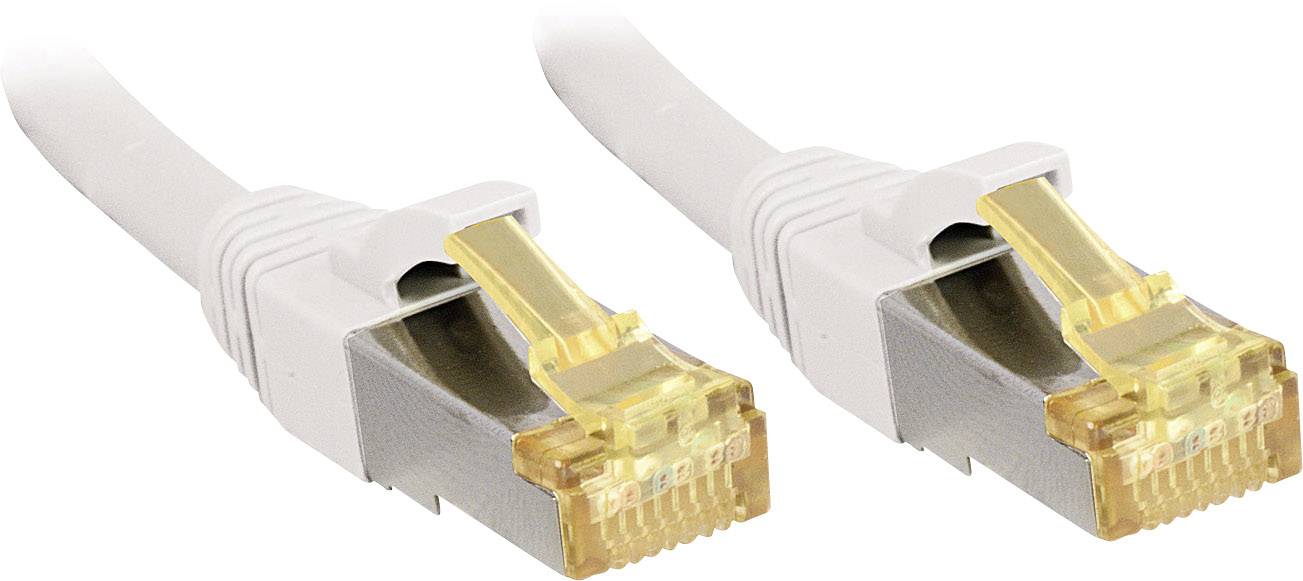

LINDY 47321 RJ45 Patch cable CAT 6a (CAT 7 cable) S/FTP 0.50 m White incl. detent 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6a (CAT 7 cable)
Shielding
S/FTP
Connection type
RJ45
Cable length
0.50 m
Datasheet (PDF)
Lindy 0.5m, RJ45 patch cable S/FTP, CAT 7 Rohkabel LSOH, white
Highlights & Details
- Plug: Cat 6A (RJ45) shielded, snagless (jack protection), gold-plated contacts (8 µm)
- Cable: Cat 7 Rohkabel, 26 AWG, 4 pairs (PIMF: pairs in metal foil), 600 Mhz, LSOH (halogen-free)
- 10/100/1000 Base-TX-support
- Gigabit compatible with 10GBase-T
- Corresponds to ANSI/TIA-568-C.2
- Assigned to the color code: TIA/EIA-568-B
- This text is machine translated.
Technical specifications
- Product type
Patch cable
CAT 6a (CAT 7 cable)
S/FTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45 plug
- No. of B connections
1 x
- Type B
RJ45 plug
- Cable length
0.50 m
- Factory colour
White
- Connector version
straight
- Cable features
incl. detent
- Cable use
Networks
- Version
Cable
- Max. frequency
500 MHz
- LAN transfer rate
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1835819 LINDY 47321 RJ45 Patch cable CAT 6a (CAT 7 cable) S/FTP 0.50 m White incl. detent 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1835819 LINDY 47321 RJ45 Patch cable CAT 6a (CAT 7 cable) S/FTP 0.50 m White incl. detent 1 pc(s)
Warranty Terms
Warranty Terms 1835819 LINDY 47321 RJ45 Patch cable CAT 6a (CAT 7 cable) S/FTP 0.50 m White incl. detent 1 pc(s)
Description
Hints
This Cable Cat 7-Rohkabel (600 Mhz) and Cat 6A plug.
For legal reasons, the cable imprint therefore "Cat 6A S/FTP patch cords mit 600 MHz raw cable".
