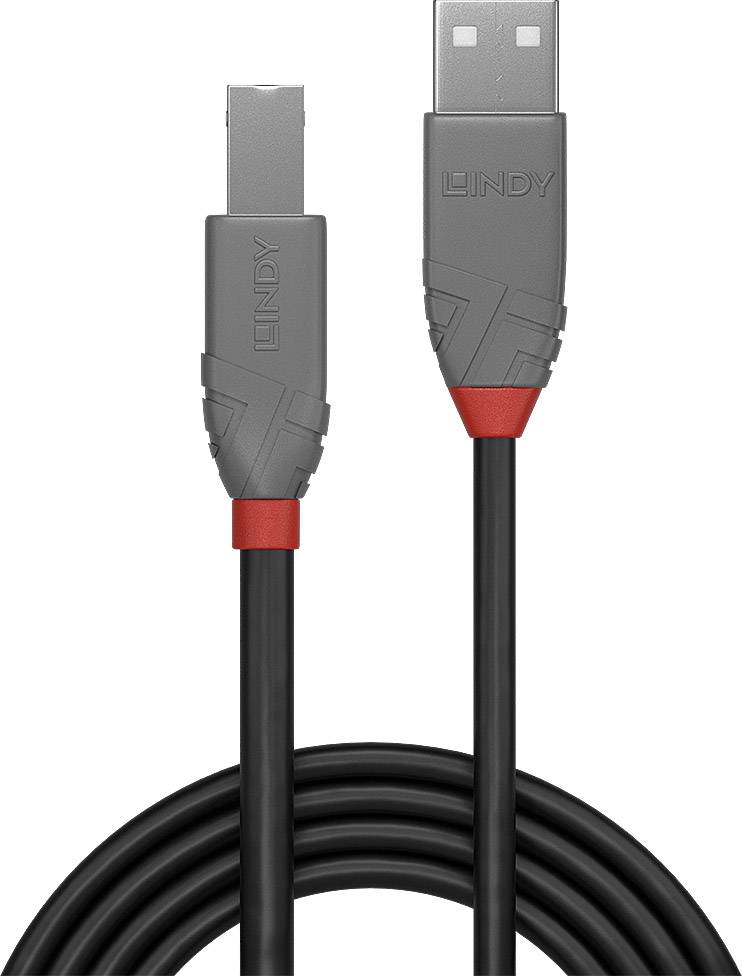

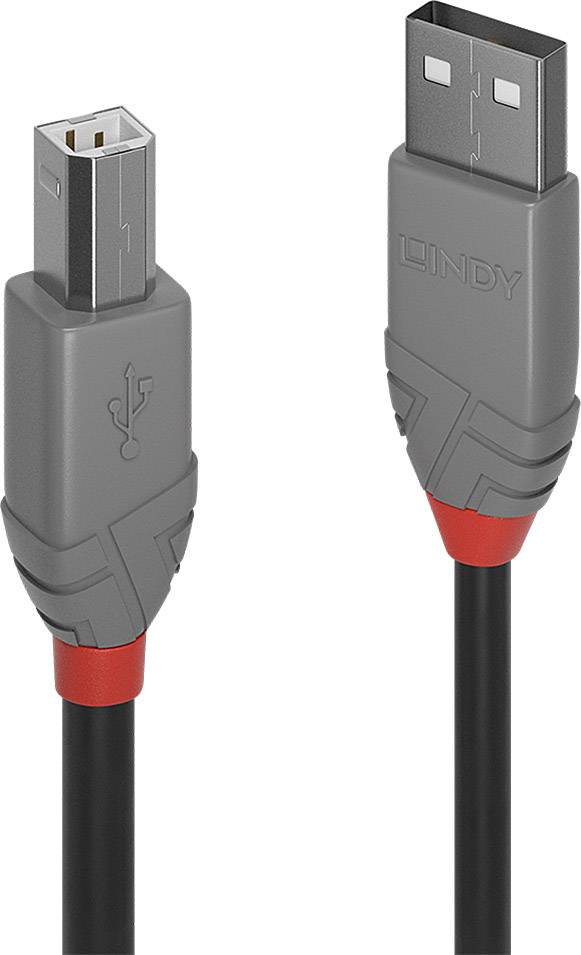

LINDY USB cable USB 2.0 USB-A plug, USB-B plug 7.50 m Black 36676
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 2.0
Version
Cable
Connection type
USB-A to USB-B
Connections
USB-A plug
USB-B plug
Datasheet (PDF)
Lindy 7.5m USB 2.0 type A to B cable, Anthra Line
Highlights & Details
- Professional USB 2.0 type A connector on B plug cable for high-performance commercial AV and IT applications
- Supports data rates of up to 480 Mbit/s
- Robust PVC housing with gold-plated contacts and nickel-plated plug
- 2-way shielded cable with corrosion-resistant, tin-plated copper conductor
- USB 2.0, 480 Mbit/s
Technical specifications
- Product type
USB cable
- Cable specs
USB 2.0
- Version
Cable
- Connection type
USB-A to USB-B
- Connections
USB-A plug
USB-B plug
- Factory colour
Black
- Cable length
7.50 m
- Connection type
USB
- Type A
USB 2.0 connector A
- Type B
USB 2.0 connector B
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
PC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1848228 LINDY USB cable USB 2.0 USB-A plug, USB-B plug 7.50 m Black 36676
User & Safety Instructions
User & Safety Instructions 1848228 LINDY USB cable USB 2.0 USB-A plug, USB-B plug 7.50 m Black 36676
Warranty Terms
Warranty Terms 1848228 LINDY USB cable USB 2.0 USB-A plug, USB-B plug 7.50 m Black 36676
Description
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 2.0 type A connector on B plug from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.
The Anthra Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and nickel-plated plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
The Anthra Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and nickel-plated plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
Features
- Connector A: USB 2.0 plug type A
- Connector B: USB 2.0 connector type B
- Housing material: PVC
- Coating of connector: Nickel
- Pin Design: copper
- Coating of the Pins: Gold.
- Standard: USB 2.0
- Colour: Black
- Type: round
- Sheath diameter: 4.4mm (0.17 in)
- Sheath material: PVC
- Conductor material: tin-plated copper
- Conductor dimensions: 26/28 AWG
- Shielding: aluminum magnesium braid
- Supported Tape width: 480 Mbit/s
- Nominal Attenuation: 7.5m: 0.5-400 MHz< 8.11 db
- Minimum bend radius: 16 mm (0.63 in)
- Operating temperature: 0°C - 60°C (32°F - 140°F)
- Storage temperature: 0 °C - 60°C (32°F - 140°F)
