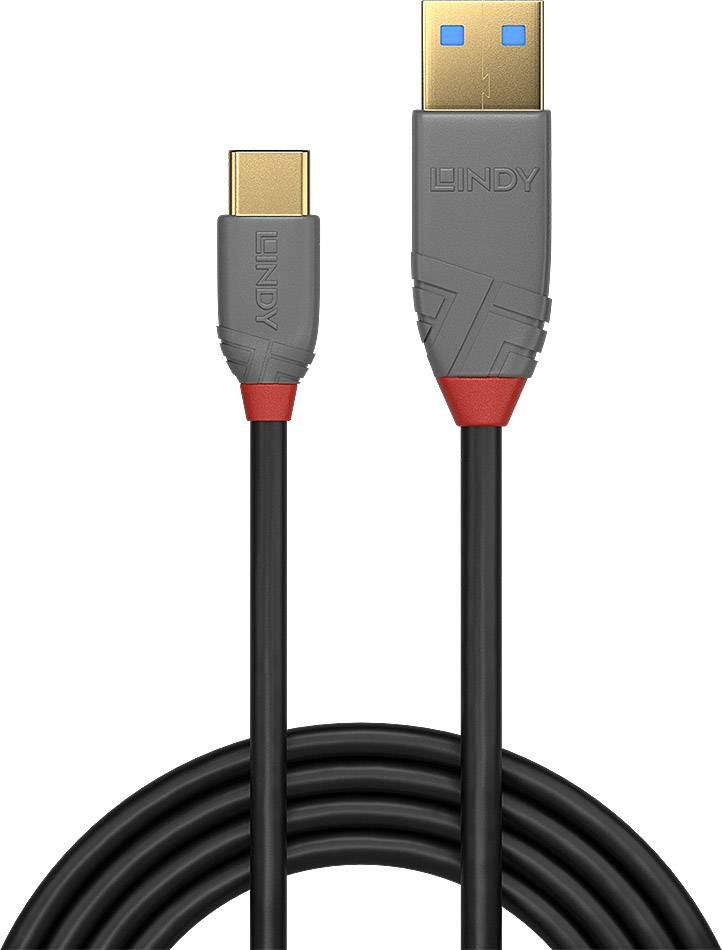

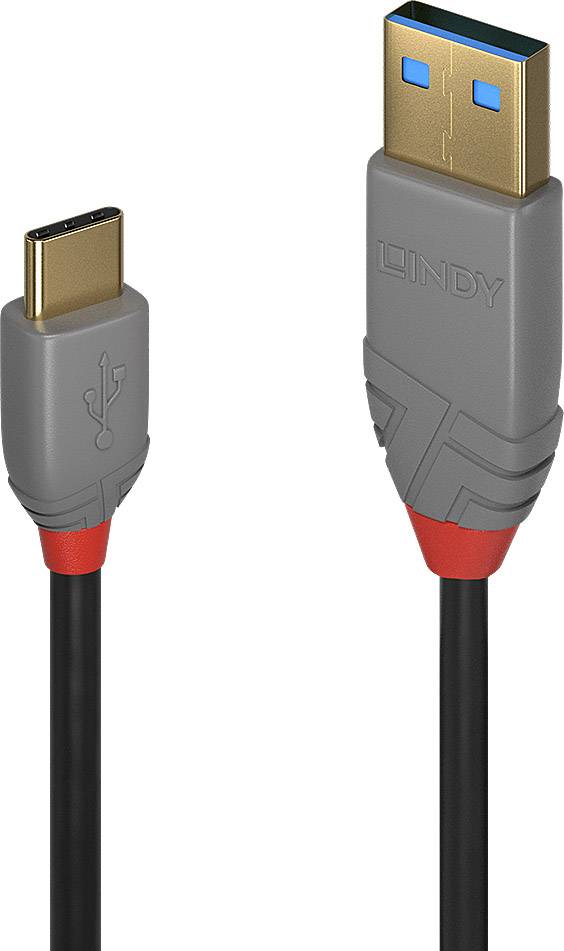

LINDY USB cable USB 2.0 USB-A plug, USB-C® plug 0.50 m Black 36885
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 2.0
Version
Cable
Connection type
USB-A to USB-C®
Connections
USB-A plug
USB-C® plug
Datasheet (PDF)
Lindy 0.5m USB 2.0 type A to C cable, Anthra Line
Highlights & Details
- Professional USB 2.0 Type C plugs to a connector cable for high-performance commercial AV and IT applications
- Supports data rates of up to 480 Mbit/s
- Robust PVC housing with gold-plated contacts and plug-in sleeves
- 2-way shielded cable with corrosion-resistant, tin-plated copper conductor
- USB 2.0, 480 Mbit/s
Technical specifications
- Product type
USB cable
- Cable specs
USB 2.0
- Version
Cable
- Connection type
USB-A to USB-C®
- Connections
USB-A plug
USB-C® plug
- Factory colour
Black
- Cable length
0.50 m
- Connection type
USB
- Type A
USB 2.0 connector A
- Type B
USB-C® plug
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
PC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1848276 LINDY USB cable USB 2.0 USB-A plug, USB-C® plug 0.50 m Black 36885
User & Safety Instructions
User & Safety Instructions 1848276 LINDY USB cable USB 2.0 USB-A plug, USB-C® plug 0.50 m Black 36885
Warranty Terms
Warranty Terms 1848276 LINDY USB cable USB 2.0 USB-A plug, USB-C® plug 0.50 m Black 36885
Description
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 2.0 Type C plugs to a connector cable from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.
No more problems when connecting: USB type C has a punktsymetrischen plug and is independent of the direction of rotation in the ports of source or target device.
The Anthra Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
No more problems when connecting: USB type C has a punktsymetrischen plug and is independent of the direction of rotation in the ports of source or target device.
The Anthra Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
Features
- Connector A: USB-plug type C
- Connector B: a type A USB plug
- Housing material: PVC
- Coating of the connector: 24K Gold
- Pin Design: phosphor bronze
- Coating of pins: 24K Gold
- Dimensions (approx.) wxdxh:
- A: 15.5 x 35 x 7.8 mm (0.81x 1.38 x 0.31 in)
- C: 11.0 x 21.65 (0.43x 0.85 x 0.29 in) x7.3mm
- Standard: USB 2.0
- Colour: Black
- Type: round
- Sheath diameter: 3.5 mm (0.14 in)
- Sheath material: PVC
- Conductor material: tin-plated copper
- Conductor dimensions: 28/28 AWG
- Shielding: copper braid 60%
- Supported Tape width: 480 Mbit/s
- Nominal damping:< 5.8db 0.5Mhz - 400 Mhz
- Minimum bend radius: 35 mm (1.38 in)
- Operating temperature: -20°C - 80°C (-4°F - 176°F)
- Storage temperature: -25°C - 85°C (-13°F - 185°F)
