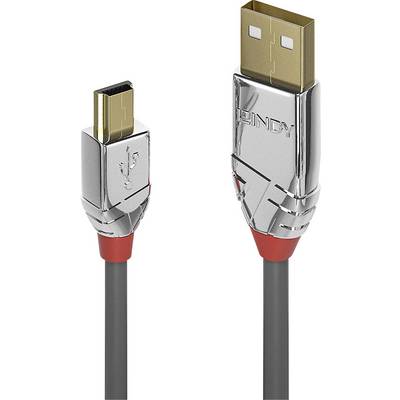

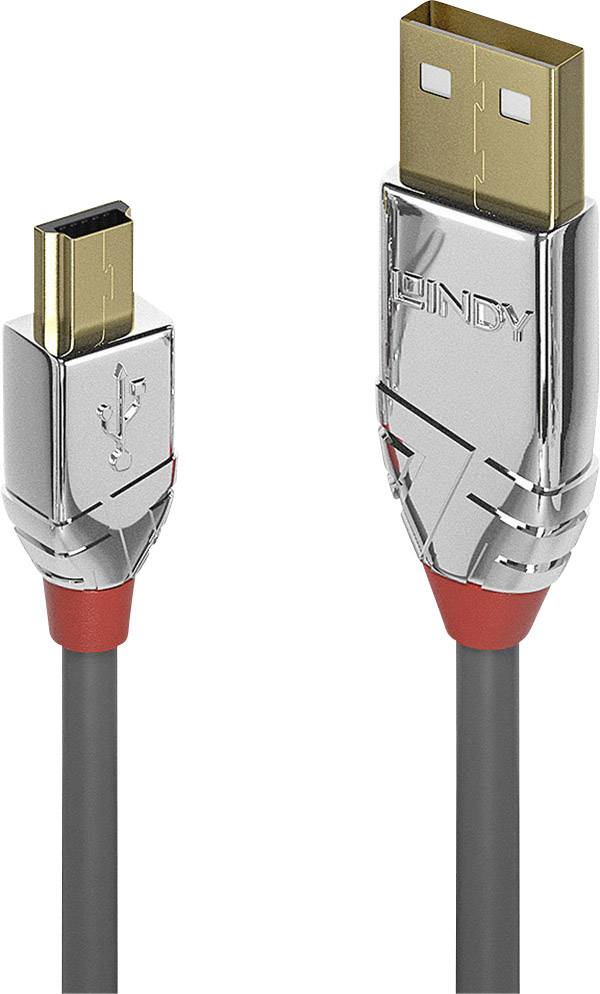

LINDY USB cable USB 2.0 USB-A plug, USB-Mini-B plug 2.00 m Grey double shielding 36632
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 2.0
Version
Cable
Connection type
USB-A to USB Mini-B
Connections
USB-A plug
USB-Mini-B plug
Datasheet (PDF)
Lindy 2m USB 2.0 type A to mini-B cable, the Cromo Line
Highlights & Details
- High-performance, functional and design-oriented USB 2.0 type A plug to mini-B plug cable
- Supports data rates of up to 480 Mbit/s
- Robust ABS housing with 24K gold-plated contacts and plug-in sleeves
- 2-way shielded cable with corrosion-resistant, tin-plated copper conductor
- USB 2.0, 480 Mbps
Technical specifications
- Product type
USB cable
- Cable specs
USB 2.0
- Version
Cable
- Connection type
USB-A to USB Mini-B
- Connections
USB-A plug
USB-Mini-B plug
- Factory colour
Grey
- Cable length
2.00 m
- Shielding
Braid shielding
- Cable features
double shielding
24/28AWG
- Cable design
Round
- Connector version
straight
Tin plated copper
- Transfer rate (max.)
480 MBit/s
- Connection type
USB
- Cable type
USB cable
- Type A
USB 2.0 connector A
- Type B
USB 2.0 connector Mini B
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
PC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1848286 LINDY USB cable USB 2.0 USB-A plug, USB-Mini-B plug 2.00 m Grey double shielding 36632
User & Safety Instructions
User & Safety Instructions 1848286 LINDY USB cable USB 2.0 USB-A plug, USB-Mini-B plug 2.00 m Grey double shielding 36632
Warranty Terms
Warranty Terms 1848286 LINDY USB cable USB 2.0 USB-A plug, USB-Mini-B plug 2.00 m Grey double shielding 36632
Description
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Cromo Line USB 2.0 type A plug to mini-B plug cable from the cable line concept are high-performance, functional and design-oriented connection solutions, combined with the highest quality materials of construction and a distinctive plug-in architecture.
The Cromo Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and high reliability ensure the high quality of manufactured, 24K gold-plated contacts and plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
The Cromo Line USB 2.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and high reliability ensure the high quality of manufactured, 24K gold-plated contacts and plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 480 Mbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
Features
- Connector A: USB 2.0 plug type A
- Connector B: USB 2.0 plug type Mini-B
- Housing material: ABS, chrome-plated
- Coating of connector: Gold 1µm
- Pin Design: phosphor bronze
- Coating of pins: 24K Gold 3µm
- Dimensions (approx.) wxdxh:
- A: 15.5 x 35 x 7.8 mm (0.81x 1.38 x 0.31 in)
- Mini-B: 10 x 24X7.5MM (0.39 x 0.95 x 0.30 in
- Standard: USB 2.0
- Colour: grey.
- Type: round
- Sheath diameter: 4.0mm (0.16 in)
- Sheath material: PVC
- Conductor material: tin-plated copper
- Conductor dimensions: 24 / 28 AWG
- Shielding: copper braid, 70%
- Supported Tape width: 480 Mbit/s
- Nominal Attenuation: 0.5-5 m: 0.5-400 MHz< 5.8db 7.5m:< 7.0db 0.5-400 MHz
- Minimum bend radius: 55 mm (2.2in)
- Operating temperature: -20°C - 80°C (-4°F - 176°F)
- Storage temperature: -25°C - 85°C (-13°F - 185°F)
