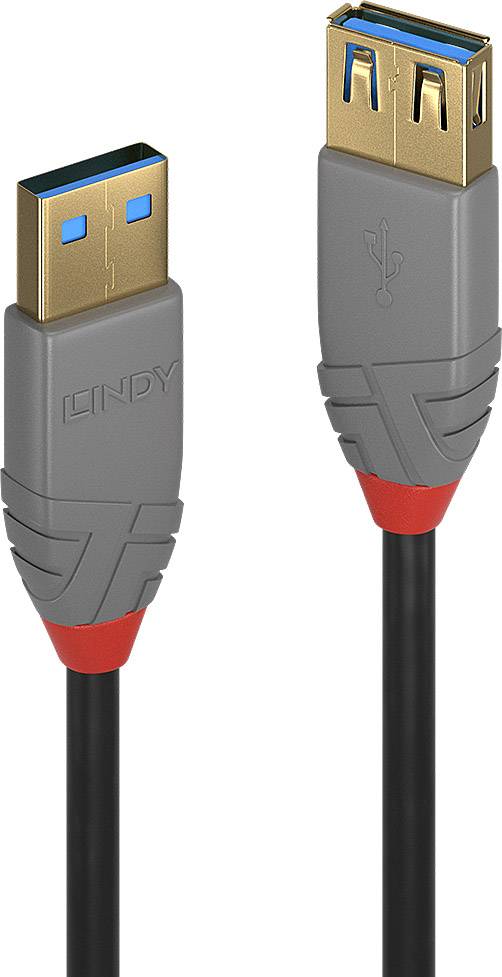

LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 3.00 m Black double shielding 36763
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 3.2 1st Gen
Version
Cable extension
Connection type
USB-A to USB-A
Connections
USB-A plug
USB-A socket
Datasheet (PDF)
Lindy 3m USB 3.0 type A extension cable, Anthra Line
Highlights & Details
- Professional USB 3.0 type A extension cable for high-performance commercial AV and IT applications
- Supports data rates of up to 5 Gbit/s
- Robust PVC housing with gold-plated contacts and plug-in sleeves
- 2-way shielded cable with corrosion-resistant, tin-plated copper conductor
- Super-speed, USB 3.0, 5 Gbit/s
Technical specifications
- Product type
USB cable
- Cable specs
USB 3.2 1st Gen
- Version
Cable extension
- Connection type
USB-A to USB-A
- Connections
USB-A plug
USB-A socket
- Factory colour
Black
- Cable length
3.00 m
- Shielding
Braid shielding
- Cable features
double shielding
24AWG. 28AWG
- Cable design
Round
Tin plated copper
- Transfer rate (max.)
5 GBit/s
- Connection type
USB
- Cable type
USB cable
- Type A
USB 3.2 1st Gen connector A (USB 3.0)
- Type B
USB 3.2 1st Gen port A (USB 3.0)
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
USB 3.2 1st Gen (USB 3.0)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1848269 LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 3.00 m Black double shielding 36763
User & Safety Instructions
User & Safety Instructions 1848269 LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 3.00 m Black double shielding 36763
Warranty Terms
Warranty Terms 1848269 LINDY USB cable USB 3.2 1st Gen USB-A plug, USB-A socket 3.00 m Black double shielding 36763
Description
Cable lines stands for the concept of contemporary, wired connectivity solutions from lindy. The Anthra Line USB 3.0 type A extension cable from the cable line concept are the professional choice when it comes to connections for high resolutions in commercial AV and IT applications can be realized.
The Anthra Line USB 3.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 5 Gbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
The Anthra Line USB 3.0 cables have a 2-fold shielding and tin-plated copper conductor for maximum and loss-free transmission power. Long-term corrosion resistance and maximum reliability ensure the high quality of manufactured, gold-plated contacts and plug-in sleeves.
Datenubertragungsgeschwindgkeiten of up to 5 Gbit/s enables a quick and smooth transfer large data volume.
This text is machine translated.
Features
- Connector A: USB 3.0 plug type A
- Connector B: USB 3.0 socket type A
- Housing material: PVC
- Coating of connector: Gold.
- Pin Design: copper
- Coating of the Pins: Gold.
- Dimensions (approx.) wxdxh:
- On: 12.0 x 20 x 0.79 x 0.18in) x4.5mm (0.47
- AF: 14.7 x 18.6 x7.0mm (0.58 x 0.73 x 28 in)
- Standard: USB 3.0
- Colour: Black
- Type: round
- Sheath diameter: 5.5mm (0.22 in)
- Sheath material: PVC
- Conductor material: tin-plated copper
- Conductor dimensions: 24/28/30 AWG
- Shielding: aluminum braid 85%
- Supported Tape width: 5 Gbit/s
- Nominal Attenuation: 0.5MHz-7.5 GHz< 25 DB
- Minimum bend radius: 48 mm (1.01 in)
- Operating temperature: 0°C - 60°C (32°F - 140°F)
- Storage temperature: 0 °C - 60°C (32°F - 140°F)
