LINDY USB cable USB 3.2 2x 2nd Gen USB-C® plug, USB-C® plug 1.00 m Black Duplex use connector 36906
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 3.2 2x 2nd Gen
Version
Cable
Connection type
USB-C® to USB-C®
Connections
USB-C® plug
USB-C® plug
Datasheet (PDF)

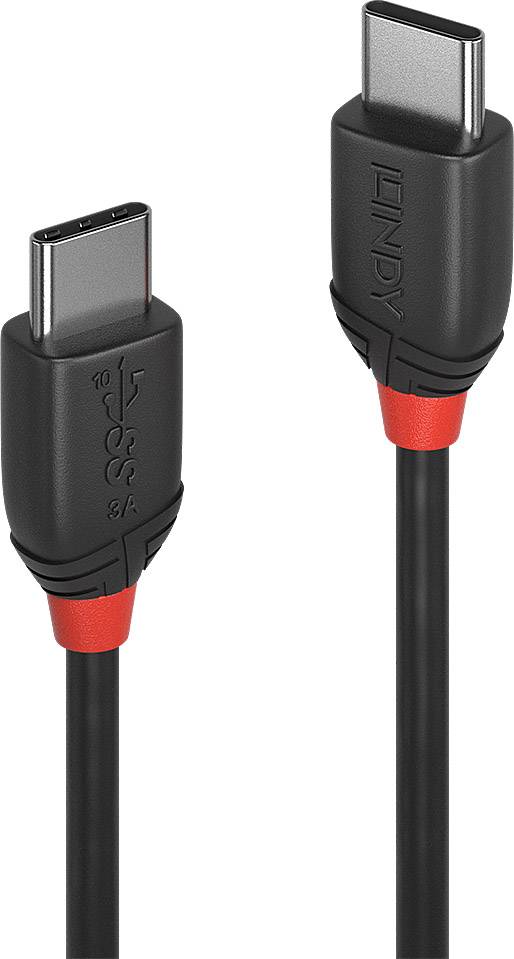

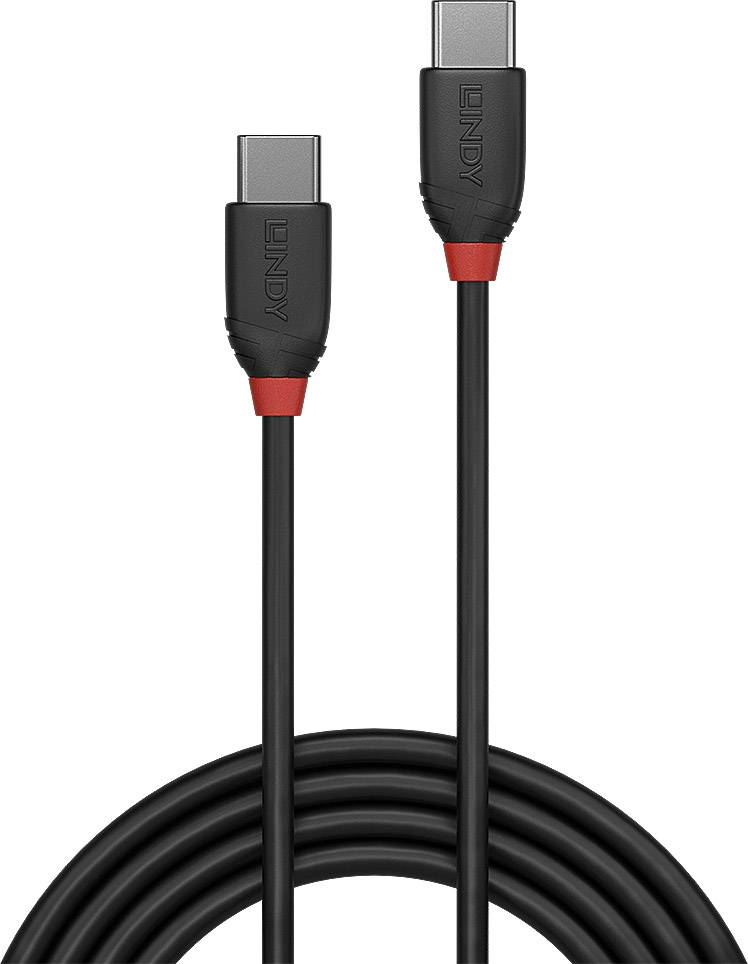

LINDY 1m USB 3.2 type C cable, 20 GBit/s, Black Line
Highlights & Details
- USB 3.2 2x 2nd Gen cable, type C to C, 3A (60W), for home and office useSuperSpeed USB 20Gbps – supports data transfer rates of up to 20GbpsRobust PVC connector housing, nickel connector sleeves and gold-plated contactsThree-way shielded cable, corrosion-resistant tinned copper conductors
Technical specifications
- Product type
USB cable
- Cable specs
USB 3.2 2x 2nd Gen
- Version
Cable
- Connection type
USB-C® to USB-C®
- Connections
USB-C® plug
USB-C® plug
- Factory colour
Black
- Cable length
1.00 m
- Signal flow
Bidirectional (A↔B)
- Shielding
Braid shielding
- Cable features
Duplex use connector
32
- Cable design
Round
- Connector version
straight
Tin plated copper
- Transfer rate (max.)
20 GBit/s
- Max. power
60 W @ 20 V / 3.0 A
- Connection type
USB
- Type A
USB-C® plug
- Type B
USB-C® plug
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
USB 3.2 (2x 2nd Gen)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1848236 LINDY USB cable USB 3.2 2x 2nd Gen USB-C® plug, USB-C® plug 1.00 m Black Duplex use connector 36906
User & Safety Instructions
User & Safety Instructions 1848236 LINDY USB cable USB 3.2 2x 2nd Gen USB-C® plug, USB-C® plug 1.00 m Black Duplex use connector 36906
Warranty Terms
Warranty Terms 1848236 LINDY USB cable USB 3.2 2x 2nd Gen USB-C® plug, USB-C® plug 1.00 m Black Duplex use connector 36906
Description
The USB 3.2 cables of the black line from the LINDY cable lines concept are fully equipped, high-resolution AVtransfer cables,Perfect for use at home and in small offices.Black Line USB 3.2 type C to C cables have a triple shielded cable structure with tin-plated copper wires for first-class performance and corrosion resistance. Nickel connectors and gold-plated contacts ensure signal integrity and reliability in the connectors.USB bandwidths of up to 20 GBit/s are supported for fast transfer of large data sets.USB type C has a reversible plug which can be inserted independent of the plug orientation. It enables a fully bi-directional cable with automatic negotiation of the connection parameters and direction between the host and the device.The Black Line USB 3.2 type C to C cables are available in lengths: 0.5 m, 1 m and 1.5 m.We have adapted the name of our USB 3 cables to the updated USB specification.USB 3.0 aka USB 3.1 Gen 1 with support for data rates up to 5GBit/s is now called USB 3.2 Gen 1.USB 3.1 or USB 3.1 Gen 2 with support for data rates up to 10GBit/s is now called USB 3.2 Gen 2.The latest USB 3.2 standard with support for data rates up to 20GBit/s is called USB 3.2 2x 2nd Gen.PCs, cables, and peripherals for USB 3.0, USB 3.1, and 3.2 are all compatible with each other in conjunction with eitherWith a type A or C USB host
This text is machine translated.
This text is machine translated.
Features
- ConnectivityConnector A: USB 3.2 connector type CConnector B: USB 3.2 connector type CHousing material: PVCConnector coating: NickelPin design: Phosphor bronzeCoating of pins: 24K goldDimensions (approx.) WxDxH: 11.0 x 25.5x7.3 mmCable constructionLength: 1 mUSB 3.2 2x 2nd Gen standardColour, blackType: RoundSheath diameter: 4.5mm (0.18in)Jacket material PVCConductor material: Tin-plated copperConductor size Power 26AWGConductor dimensions Data: 32AWGShielding: Copper braid 75%SpecificationsSupported bandwidth: 20Gbps
