Name: Liontron LISMART2420LX Non-standard battery (rechargeable) LiFePo PP3 LiFePO4 25.6 V 20 Ah 1 pc(s)
Brand: Liontron
SKU: 2491012

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

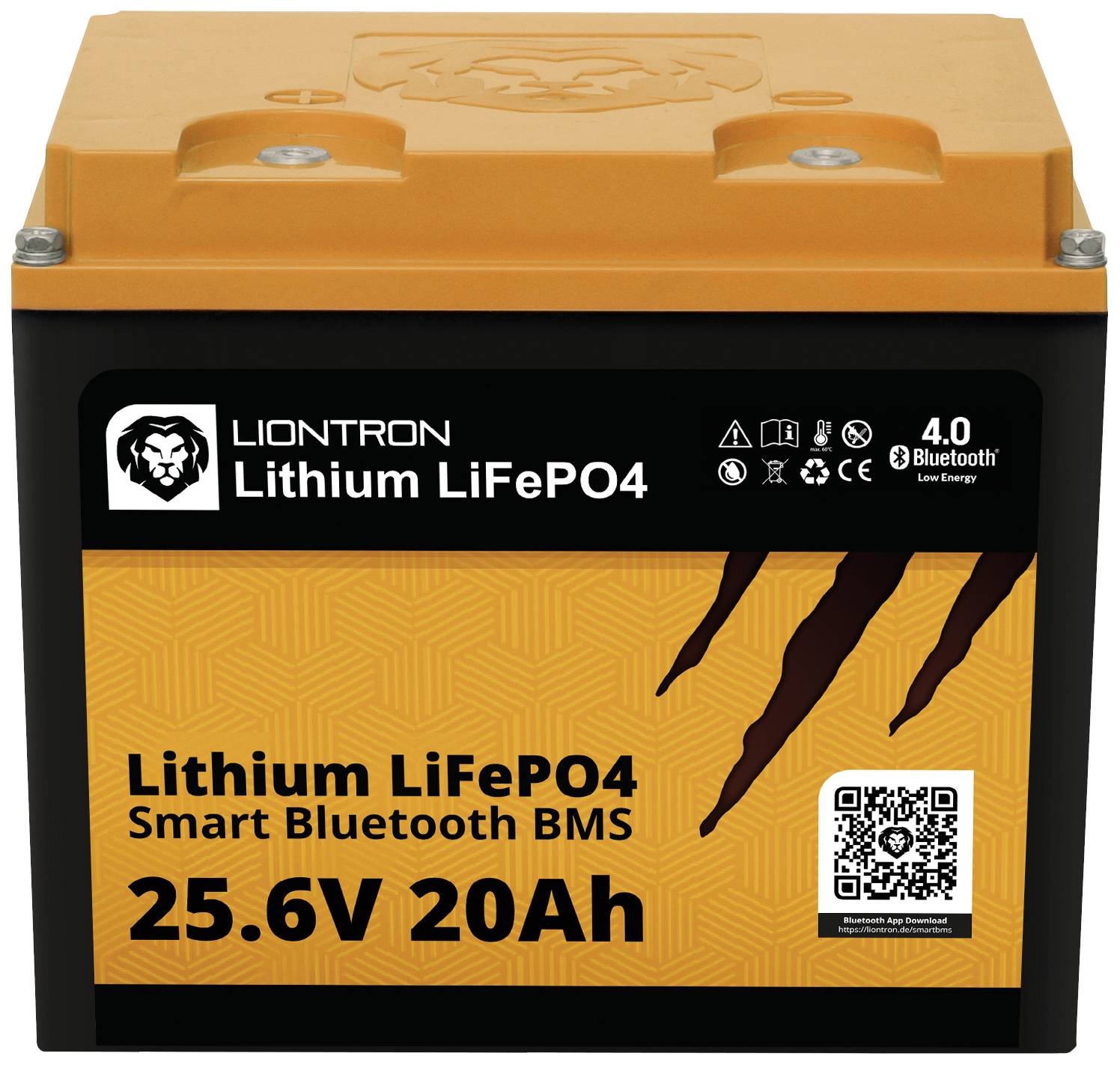

Liontron LiFePO4 LX battery 25.6 V;20 Ah With smart BMS

Fully-fledged lead-acid battery replacement with maximum service lifeBluetooth monitoringSafest lithium technology

Technical specifications

Size: LiFePo PP3

Product type: Non-standard battery (rechargeable)

Technology: LiFePO4

Dim: (W x H x D) 148 x 175 x 193 mm

Voltage: 25.6 V

Capacity (mAh, Ah): 20 Ah

Max. charge voltage: 29.2 V

Discharge current (max.): 40 A

Continuous discharge: 20 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Width: 148 mm

Height: 175 mm

Depth: 193 mm

Weight: 5900 g

Content: 1 pc(s)

Type: LISMART2420LX

Rechargeable: Yes

Integrated surge protection: Yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2491012 Liontron LISMART2420LX Non-standard battery (rechargeable) LiFePo PP3 LiFePO4 25.6 V 20 Ah 1 pc(s)

Information

Test Summary Report 2491012 Liontron LISMART2420LX Non-standard battery (rechargeable) LiFePo PP3 LiFePO4 25.6 V 20 Ah 1 pc(s)

Security datasheet

Security datasheet 2491012 Liontron LISMART2420LX Non-standard battery (rechargeable) LiFePo PP3 LiFePO4 25.6 V 20 Ah 1 pc(s)

Warranty Terms

Warranty Terms 2491012 Liontron LISMART2420LX Non-standard battery (rechargeable) LiFePo PP3 LiFePO4 25.6 V 20 Ah 1 pc(s)

Description

Liontron LiFePO4 battery with lithium iron phosphate. Offers a significant weight reduction, enormous energy reserves and stable voltage even under extreme loads. The memory was developed especially for meeting the high demands of a storage battery today. Highest safety and a long service life are also possible with regularly deep discharge thanks to lithium technology. It enables an extremely long cycle life (over 3000 cycles at 90% DoD) and makes the batteries the optimal traction battery. A parallel connection is possible to increase the capacity.

This text is machine translated.
