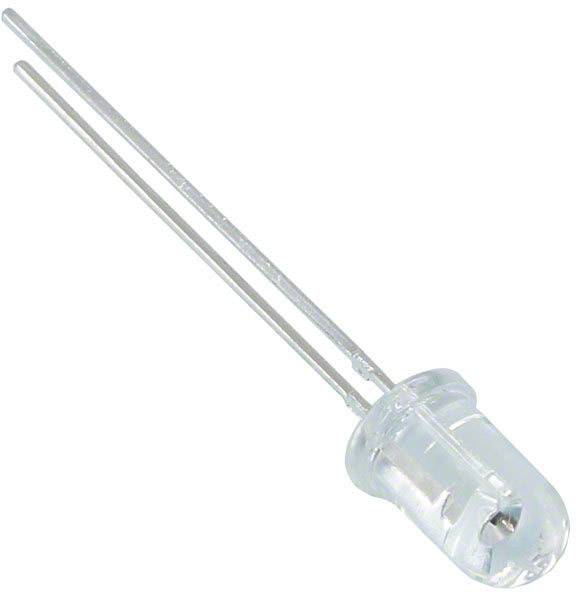

Lite-On LTE-3959 B IR emitter 940 nm 50 ° 5 mm circular Radial lead
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.25
50
8% = € 0.02
€ 0.23
100
12% = € 0.03
€ 0.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.25 / piece)
€ 0.25
plus VAT.
Technical specifications
- Type
LTE-3959 B
- Casing
5 mm
- Type (LEDs)
White
Water clear
- Type
Radial lead
- Type
circular
- Forward voltage U(F)
1.25 V
- Forward current I(F)
100 mA
- Radiation angle
50°
- Beam intensity I(e)
6 mW/sr
150 mW
- Wavelength
940 nm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Dim
(L x W x H) 33.1 x 5.8 x 5.4 mm
- Height
5.4 mm
- Length
33.1 mm
- Width
5.8 mm
- Manufacturer
Lite-On
- Product type
IR emitter
Documents & Downloads
Datasheet
Datasheet 1127656 Lite-On LTE-3959 B IR emitter 940 nm 50 ° 5 mm circular Radial lead
User & Safety Instructions
User & Safety Instructions 1127656 Lite-On LTE-3959 B IR emitter 940 nm 50 ° 5 mm circular Radial lead
Description
Hints
Unless LED chips come with a built-in current limiter, they need to be protected by a current-limitung resistor or constant current source. Infrared light wavelengths are invisible to the human eye.
