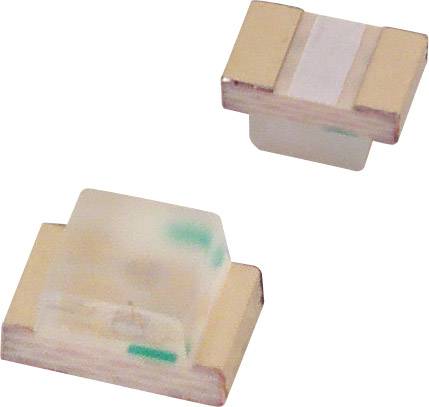

Lite-On LTST-C170KSKT SMD LED 2012 Yellow 70 mcd 130 ° 20 mA 2.1 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2.1 V
Forward current I(F)
20 mA
Type
SMD
Type
2012
Datasheet (PDF)
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 0.03 / piece)
€ 3.00
plus VAT.
Technical specifications
- Product type
SMD LED
- Type
LTST-C170 KSKT
- Factory colour
Yellow
- Forward voltage U(F)
2.1 V
- Forward current I(F)
20 mA
- Type
SMD
- Type
2012
- Light intensity I(V)
70 mcd
- Wavelength
591 nm
- Radiation angle
130°
- Type
Clear
- Dim
(L x W x H) 2 x 1.25 x 1.1 mm
- Length
2 mm
- Technology
AlInGaP
- Width
1.25 mm
- Min. temperature
-55 °C
- Height
1.1 mm
- Max. temperature
+85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127448 Lite-On LTST-C170KSKT SMD LED 2012 Yellow 70 mcd 130 ° 20 mA 2.1 V
User & Safety Instructions
User & Safety Instructions 1127448 Lite-On LTST-C170KSKT SMD LED 2012 Yellow 70 mcd 130 ° 20 mA 2.1 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
