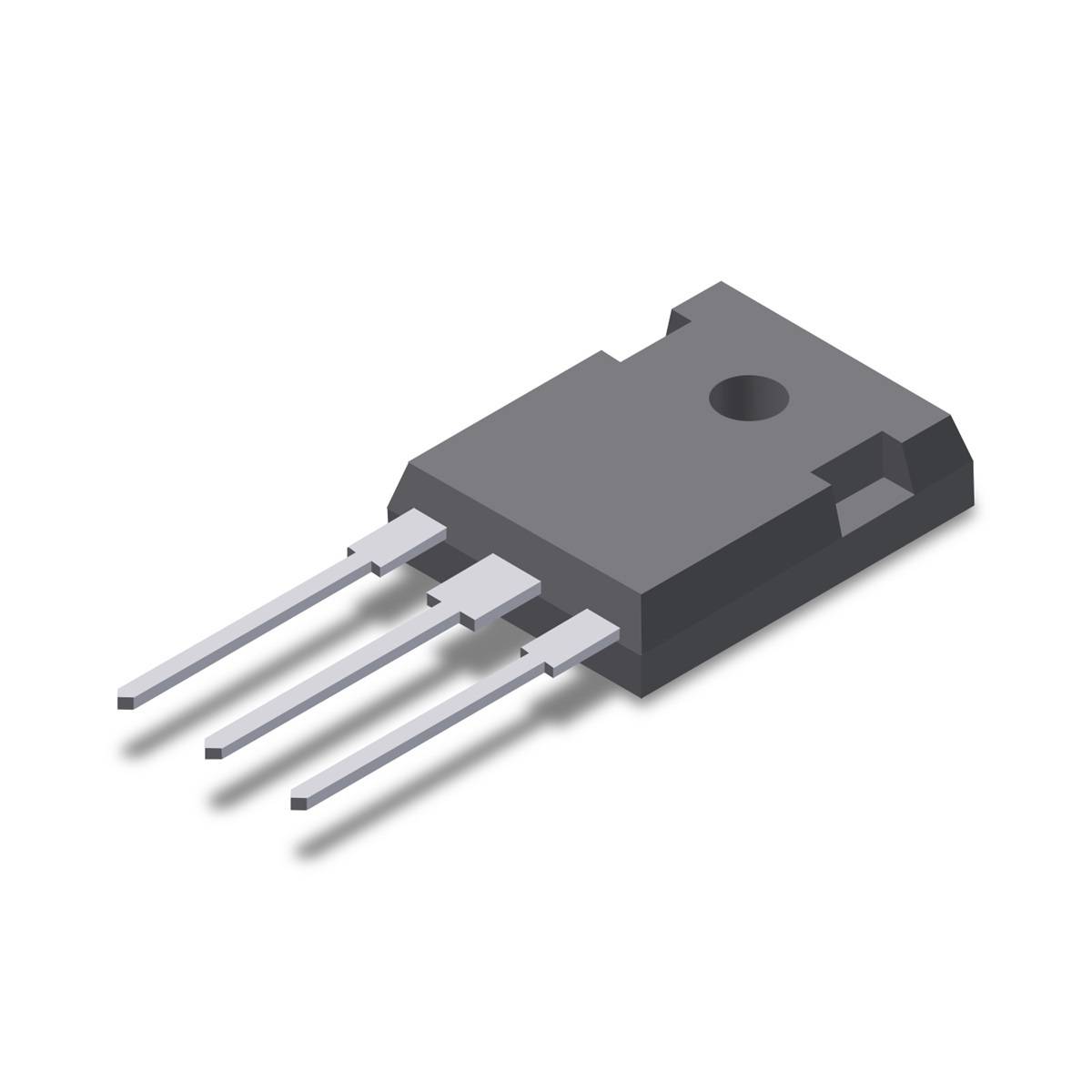

Littelfuse IXA12IF1200HB IGBT TO 247AD 1200 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO 247AD
Collector current
20 A
Type
IXA12IF1200HB
Technical specifications
- Package type TO-247AD
- VCES - Collector emitter voltage (V) 1200 V
- Current collector @ 25 ℃ (A) 20 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 1.8 V
- Configuration: Copack (Sonic-FRD)
- Thermal resistance [junction-case] [IGBT] (K/W): 1.5 K/W.
- Current collector @ 110 ℃ (A) 13 A
- Turn-off energy @ 125 ℃ (mJ): 1.1 mJ
- Thermal resistance [junction-case] [Diode] (K/W): 1.8 K/W.
- Forward current @ 110 ℃ (A): 14 A
- Packaging type
Tube
- Type
IXA12IF1200HB
- Product type
IGBT
- Enclosure
TO 247AD
- Manufacturer
Littelfuse
- Collector emitter reverse voltage U(CES)
1200 V
- Collector current
20 A
- Collector-emitter saturation voltage (max.)
1.8 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2960572 Littelfuse IXA12IF1200HB IGBT TO 247AD 1200 V Tube
