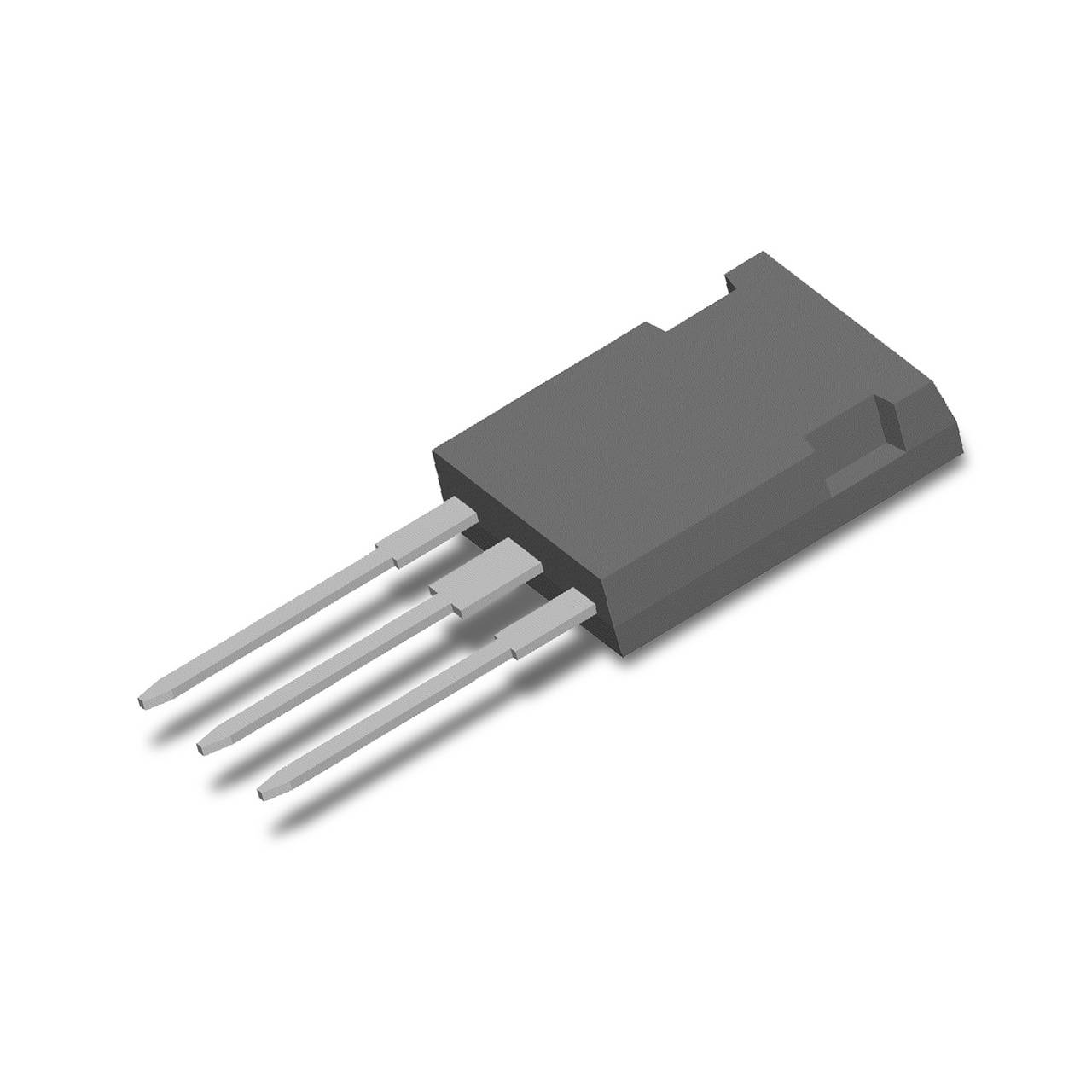

Littelfuse IXA17IF1200HJ IGBT ISOPLUS247 1200 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
ISOPLUS247
Collector current
28 A
Type
IXA17IF1200HJ
Technical specifications
- Package type ISOPLUS247
- VCES - Collector emitter voltage (V) 1200 V
- Current collector @ 25 ℃ (A) 28 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 1.8 V
- Case Time [Inductive Load] (ns): 100 ns
- Configuration: Copack (Sonic-FRD)
- Thermal resistance [junction-case] [IGBT] (K/W): 1.26 K/W.
- Current collector @ 90 ℃ (A) 18 A
- Turn-off energy @ 125 ℃ (mJ): 1.7 mJ
- Thermal resistance [junction-case] [Diode] (K/W): 1.5 K/W.
- Forward current @ 90 ℃ (A): 19 A
- Packaging type
Tube
- Type
IXA17IF1200HJ
- Product type
IGBT
- Enclosure
ISOPLUS247
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Collector emitter reverse voltage U(CES)
1200 V
- Collector current
28 A
- Collector-emitter saturation voltage (max.)
1.8 V
- Type
IGBT
