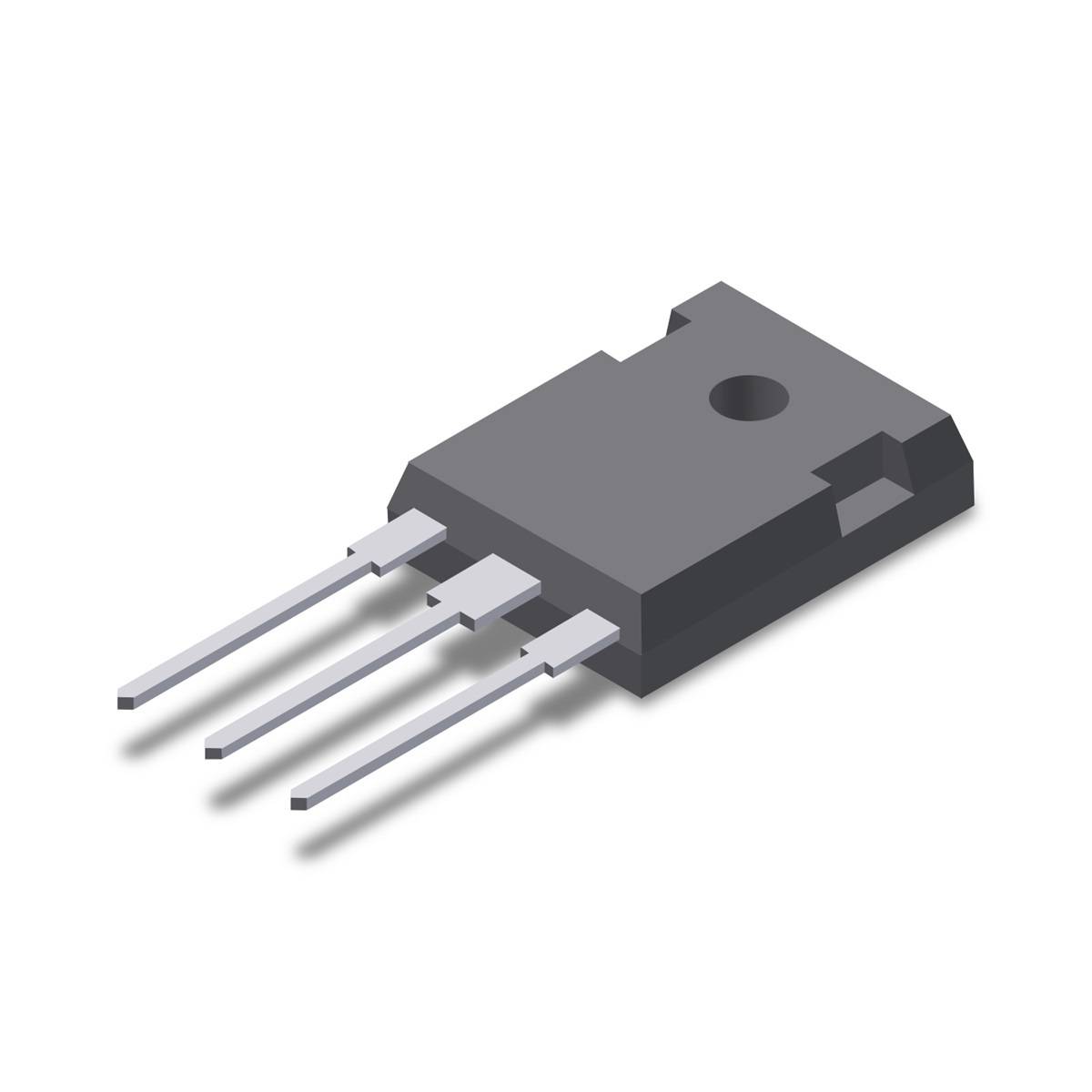

Littelfuse IXA45IF1200HB IGBT TO 247AD 1200 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO 247AD
Collector current
78 A
Type
IXA45IF1200HB
Technical specifications
- Package type TO-247AD
- VCES - Collector emitter voltage (V) 1200 V
- Current collector @ 25 ℃ (A) 78 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 1.8 V
- Case Time [Inductive Load] (ns): 100 ns
- Configuration: Copack (Sonic-FRD)
- Thermal resistance [junction-case] [IGBT] (K/W): 0.38 K/W.
- Current collector @ 90 ℃ (A) 45 A
- Turn-off energy @ 125 ℃ (mJ): 4.1 mJ
- Thermal resistance [junction-case] [Diode] (K/W): 0.7 K/W.
- Forward current @ 90 ℃ (A): 33 A
- Packaging type
Tube
- Type
IXA45IF1200HB
- Product type
IGBT
- Enclosure
TO 247AD
- Manufacturer
Littelfuse
- Collector emitter reverse voltage U(CES)
1200 V
- Collector current
78 A
- Collector-emitter saturation voltage (max.)
1.8 V
- Type
IGBT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2960595 Littelfuse IXA45IF1200HB IGBT TO 247AD 1200 V Tube
