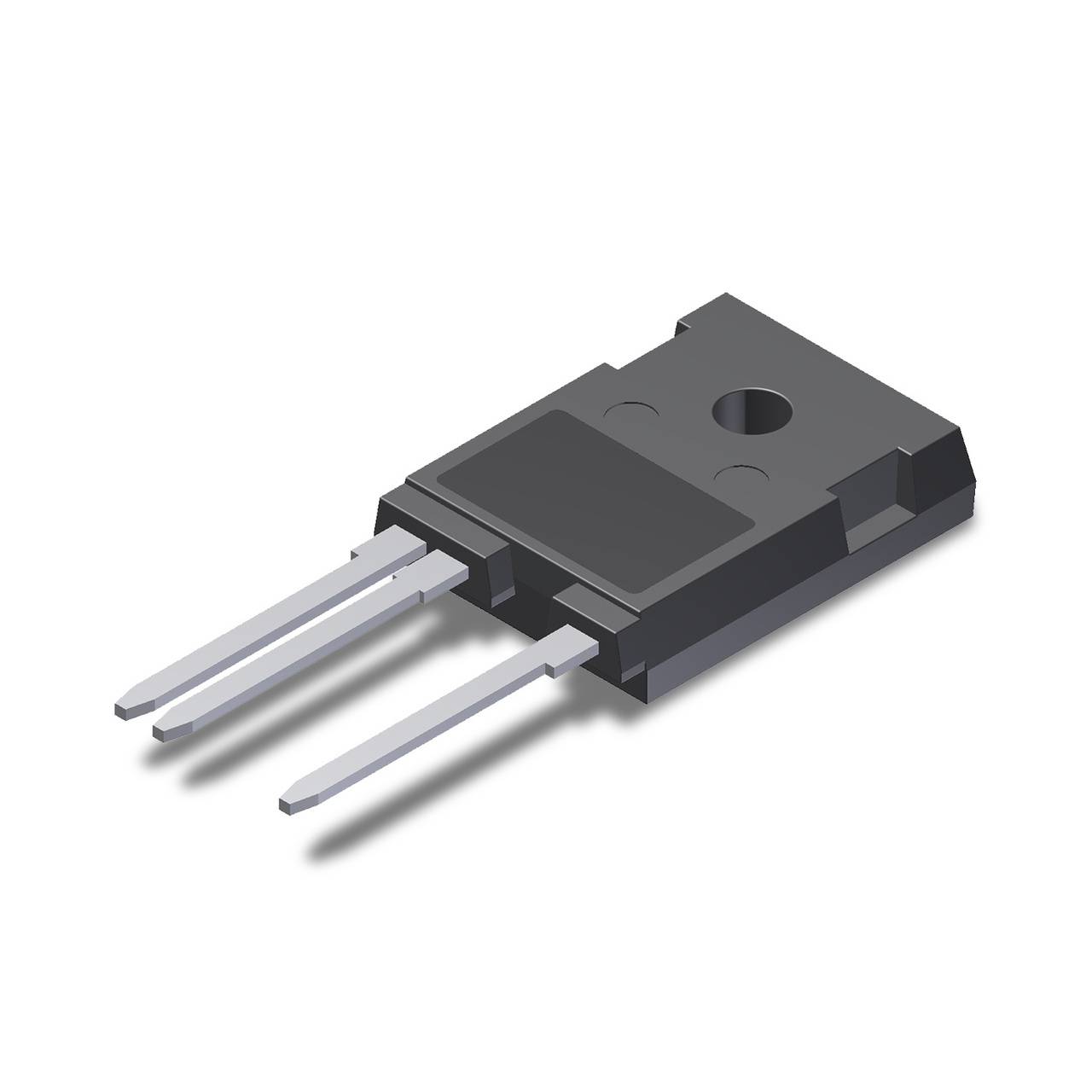

Littelfuse IXBH14N300HV IGBT TO-247HV 3000 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO-247HV
Collector current
38 A
Type
IXBH14N300HV
Technical specifications
- Package type TO-247HV
- VCES - Collector emitter voltage (V) 3000 V
- Current collector @ 25 ℃ (A) 38 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 2.7 V
- Configuration: Copack (FRED)
- Case Time [Resistive Load] (ns): 1900 ns
- Thermal resistance (junction-case) (K/W): 0.62 K/W.
- Driving Voltages (V): 15 V
- Current collector @ 110 ℃ (A) 14 A
- Packaging type
Tube
- Type
IXBH14N300HV
- Product type
IGBT
- Enclosure
TO-247HV
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Collector emitter reverse voltage U(CES)
3000 V
- Collector current
38 A
- Collector-emitter saturation voltage (max.)
2.7 V
- Type
IGBT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2960618 Littelfuse IXBH14N300HV IGBT TO-247HV 3000 V Tube
