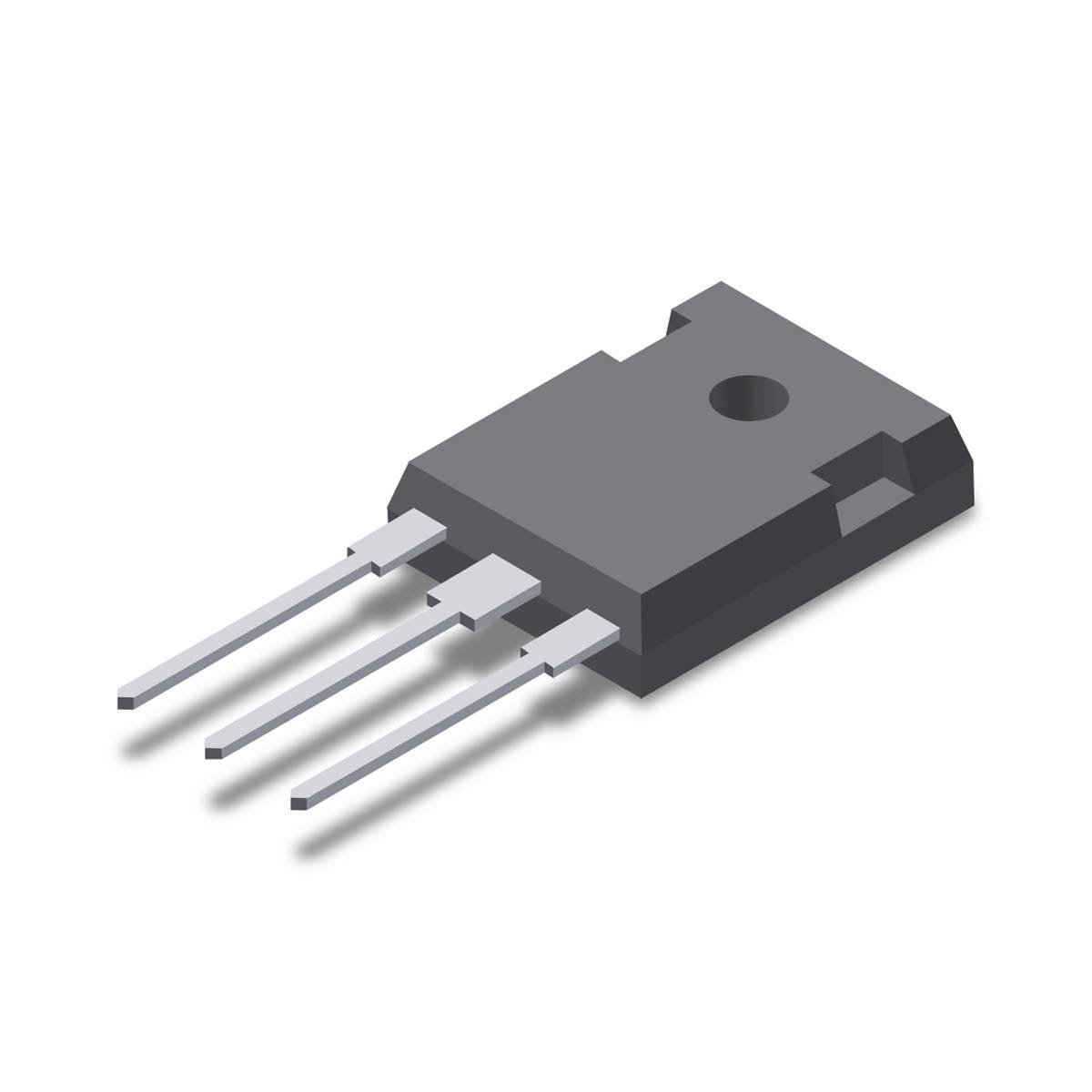

Littelfuse IXGH48N60B3D1 IGBT TO 247 600 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO 247
Type
IXGH48N60B3D1
Manufacturer
Littelfuse
Technical specifications
- Package type TO-247
- VCES - Collector emitter voltage (V) 600 V
- VCE(sat) - Collector emitter Saturation Voltage (V) 1.8 V
- Case Time [Inductive Load] (ns): 116 ns
- Configuration: Copack (FRED)
- Thermal resistance [junction-case] [IGBT] (K/W): 0.42 K/W.
- Current collector @ 110 ℃ (A) 48 A
- Turn-off energy @ 125 ℃ (mJ): 1.3 mJ
- Thermal resistance [junction-case] [Diode] (K/W): 1.5 K/W.
- Packaging type
Tube
- Type
IXGH48N60B3D1
- Product type
IGBT
- Enclosure
TO 247
- Manufacturer
Littelfuse
- Collector emitter reverse voltage U(CES)
600 V
- Collector-emitter saturation voltage (max.)
1.8 V
