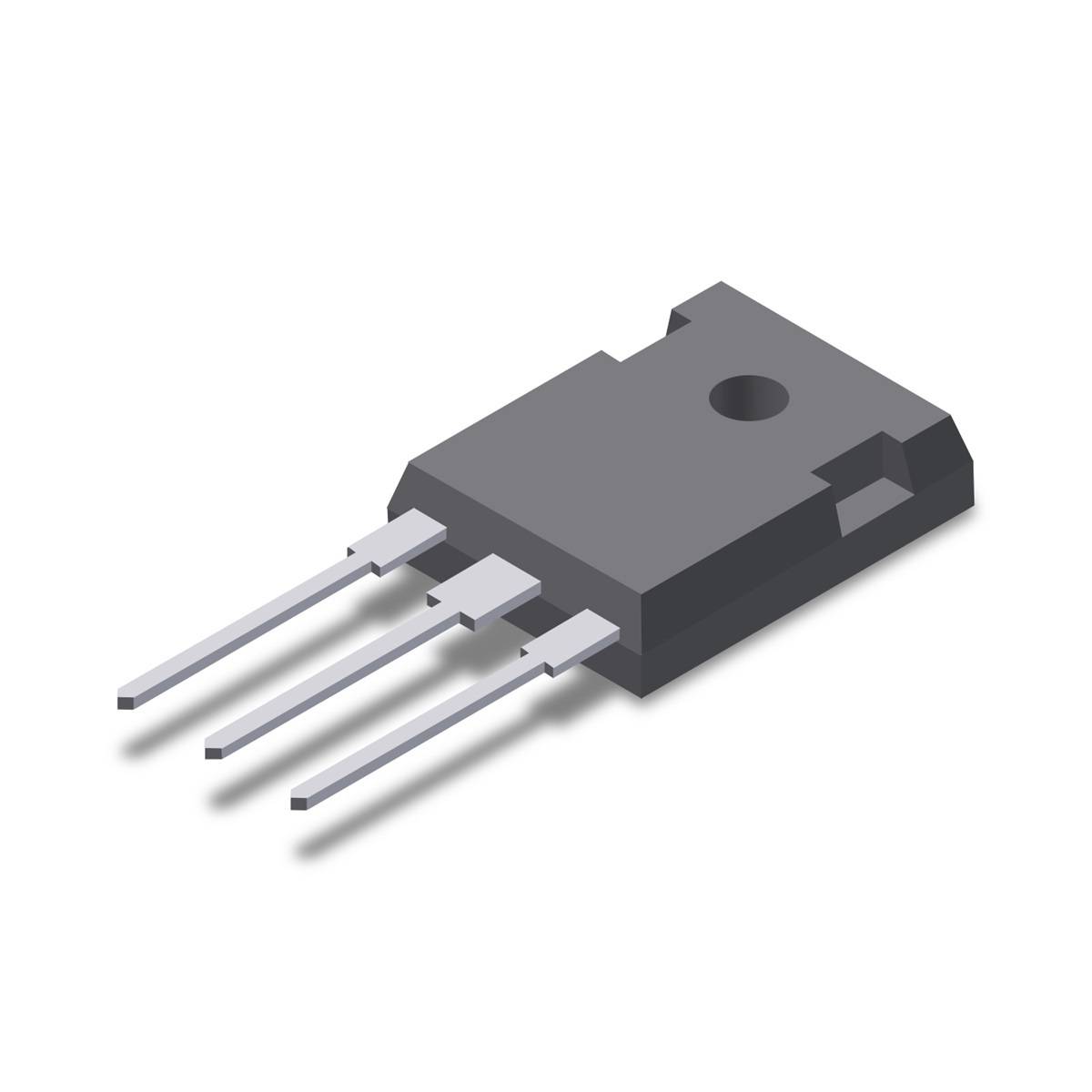

Littelfuse IXXH75N60C3D1 IGBT TO-247U 600 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO-247U
Collector current
150 A
Type
IXXH75N60C3D1
Technical specifications
- Package type TO-247U
- VCES - Collector emitter voltage (V) 600 V
- Current collector @ 25 ℃ (A) 150 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 2.3 V
- Case Time [Inductive Load] (ns): 75 ns
- Configuration: Copack (FRED)
- Thermal resistance [junction-case] [IGBT] (K/W): 0.2 K/W.
- Current collector @ 110 ℃ (A) 75 A
- Thermal resistance [junction-case] [Diode] (K/W): 0.9 K/W.
- Forward current @ 110 ℃ (A): 30 A
- Turn-off energy @ 150 ℃ (mJ): 1.07 mJ
- Packaging type
Tube
- Type
IXXH75N60C3D1
- Product type
IGBT
- Enclosure
TO-247U
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Collector emitter reverse voltage U(CES)
600 V
- Collector current
150 A
- Collector-emitter saturation voltage (max.)
2.3 V
- Type
IGBT
