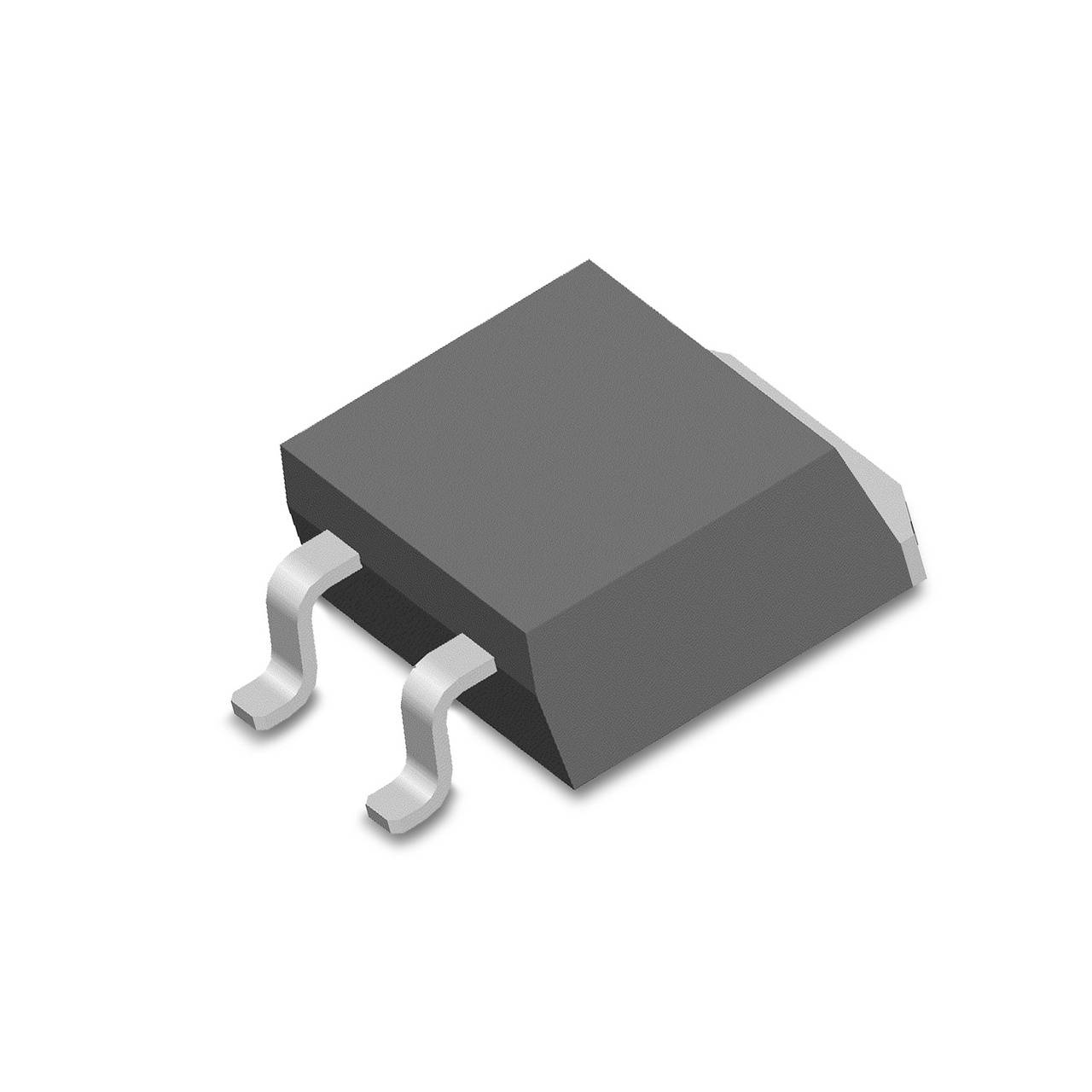

Littelfuse IXYA20N120B4HV IGBT TO 263HV single 1200 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO 263HV
Collector current
76 A
Type
IXYA20N120B4HV
Technical specifications
- Package type TO-263HV
- VCES - Collector emitter voltage (V) 1200 V
- Current collector @ 25 ℃ (A) 76 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 2.1 V
- Case Time [Inductive Load] (ns): 90 ns
- Configuration: Single
- Thermal resistance [junction-case] [IGBT] (K/W): 0.4 K/W.
- Current collector @ 110 ℃ (A) 20 A
- Turn-off energy @ 125 ℃ (mJ): 2.7 mJ
- Packaging type
Tube
- Type
IXYA20N120B4HV
- Product type
IGBT
- Enclosure
TO 263HV
- Manufacturer
Littelfuse
- Manuf. code
IXY
- Configuration
single
- Collector emitter reverse voltage U(CES)
1200 V
- Collector current
76 A
- Collector-emitter saturation voltage (max.)
2.1 V
- Type
IGBT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2960849 Littelfuse IXYA20N120B4HV IGBT TO 263HV single 1200 V Tube
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
-42%
€ 1.09
€ 0.63*
