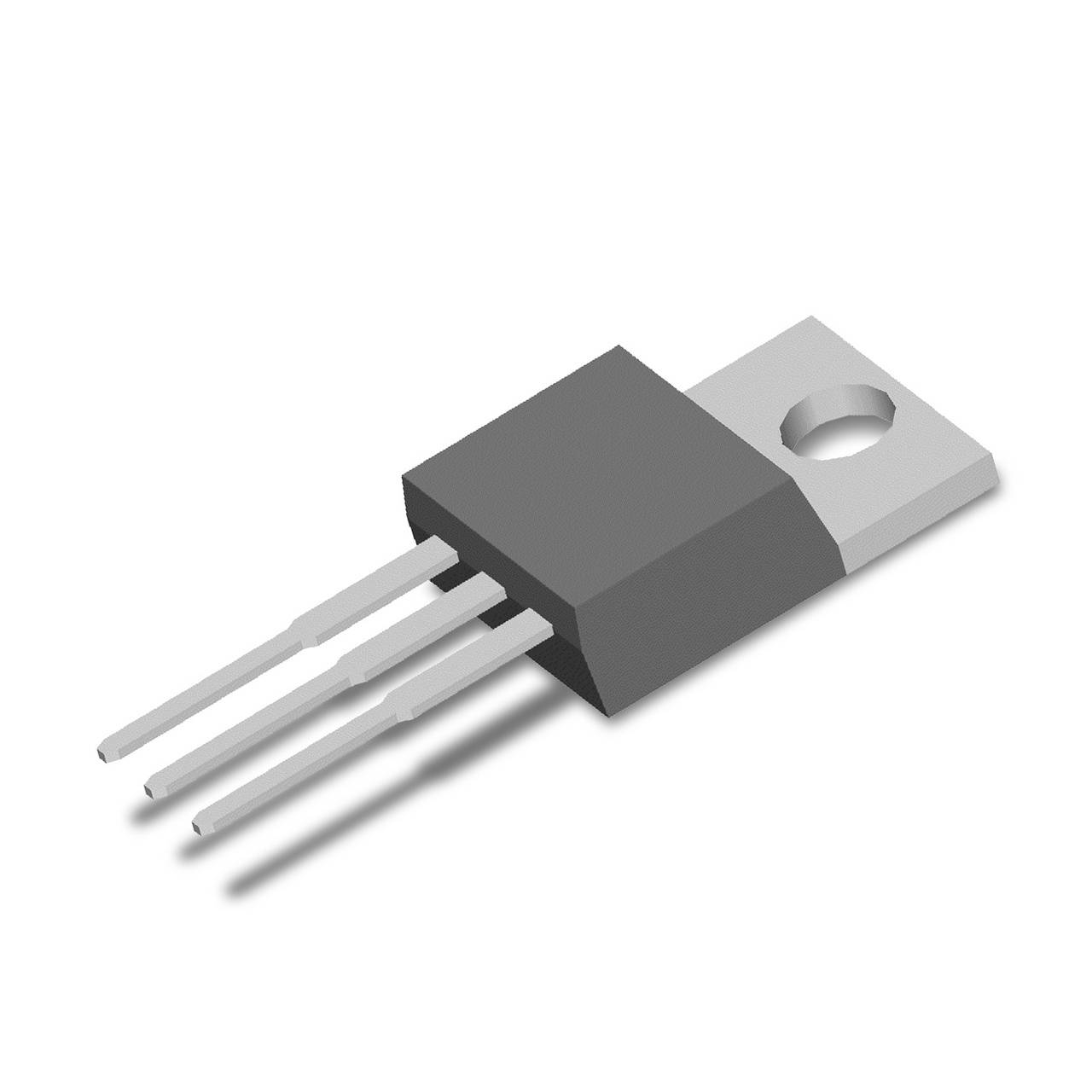

Littelfuse IXYP20N65C3D1 IGBT TO-220U 650 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO-220U
Collector current
50 A
Type
IXYP20N65C3D1
Technical specifications
- Package type TO-220U
- VCES - Collector emitter voltage (V) 650 V
- Current collector @ 25 ℃ (A) 50 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 2.5 V
- Case Time [Inductive Load] (ns): 28 ns
- Configuration: Copack (FRED)
- Thermal resistance [junction-case] [IGBT] (K/W): 0.65 K/W.
- Current collector @ 110 ℃ (A) 20 A
- Thermal resistance [junction-case] [Diode] (K/W): 1.85 K/W.
- Forward current @ 110 ℃ (A): 18 A
- Turn-off energy @ 150 ℃ (mJ): 0.4 mJ
- Packaging type
Tube
- Type
IXYP20N65C3D1
- Product type
IGBT
- Enclosure
TO-220U
- Manufacturer
Littelfuse
- Manuf. code
IXY
- Collector emitter reverse voltage U(CES)
650 V
- Collector current
50 A
- Collector-emitter saturation voltage (max.)
2.5 V
- Type
IGBT
