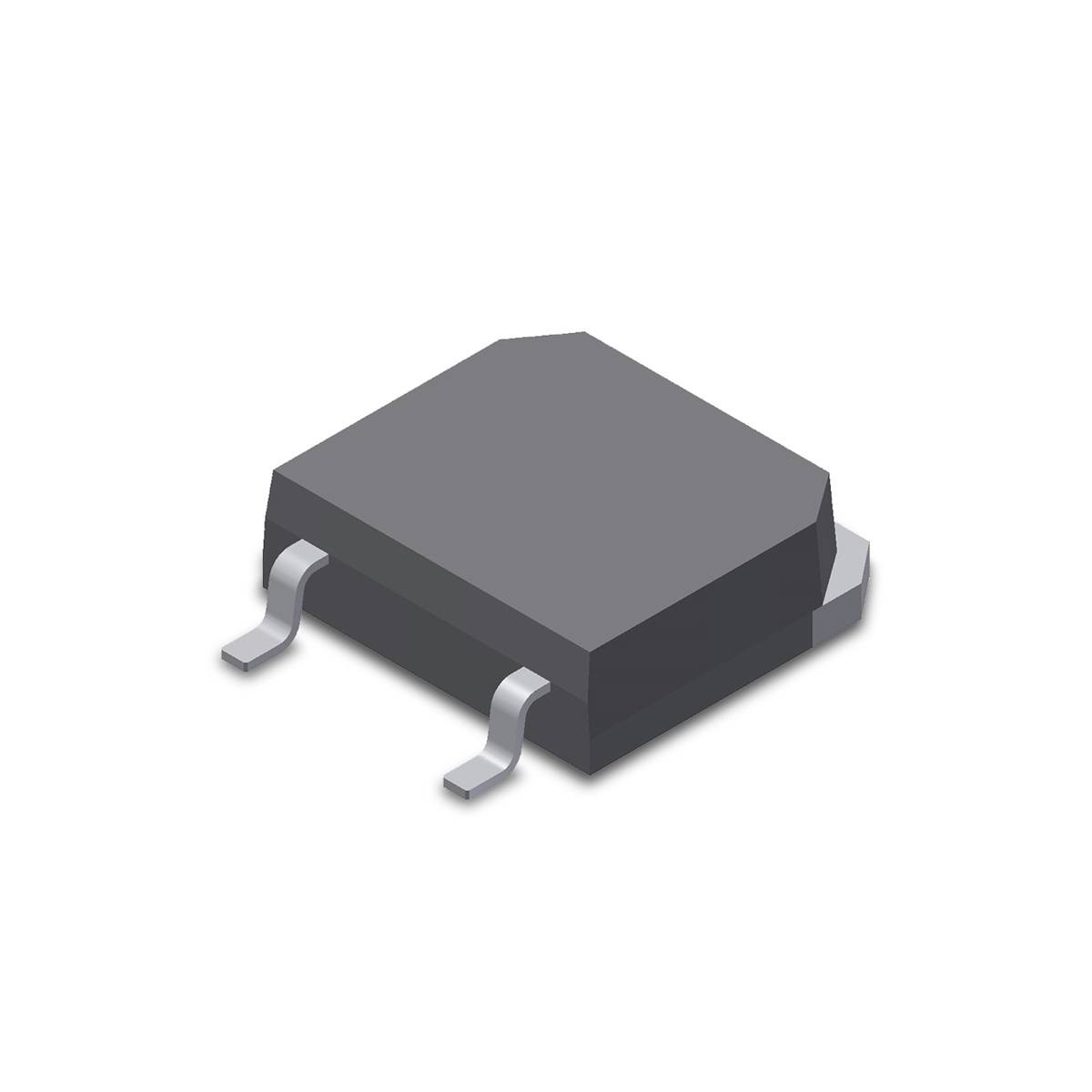

Littelfuse IXYT12N250CV1HV IGBT TO-268HVU 2500 V Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
IGBT
Enclosure
TO-268HVU
Collector current
28 A
Type
IXYT12N250CV1HV
Technical specifications
- Package type TO-268HVU
- VCES - Collector emitter voltage (V) 2500 V
- Current collector @ 25 ℃ (A) 28 A
- VCE(sat) - Collector emitter Saturation Voltage (V) 4.5 V
- Case Time [Inductive Load] (ns): 136 ns
- Configuration: Copack (FRED)
- Thermal resistance [junction-case] [IGBT] (K/W): 0.48 K/W.
- Current collector @ 110 ℃ (A) 12 A
- Thermal resistance [junction-case] [Diode] (K/W): 0.8 K/W.
- Forward current @ 110 ℃ (A): 14 A
- Turn-off energy @ 150 ℃ (mJ): 1.95 mJ
- Packaging type
Tube
- Type
IXYT12N250CV1HV
- Product type
IGBT
- Enclosure
TO-268HVU
- Manufacturer
Littelfuse
- Manuf. code
IXY
- Collector emitter reverse voltage U(CES)
2500 V
- Collector current
28 A
- Collector-emitter saturation voltage (max.)
4.5 V
- Insulation voltage
2500 V
- Type
IGBT
