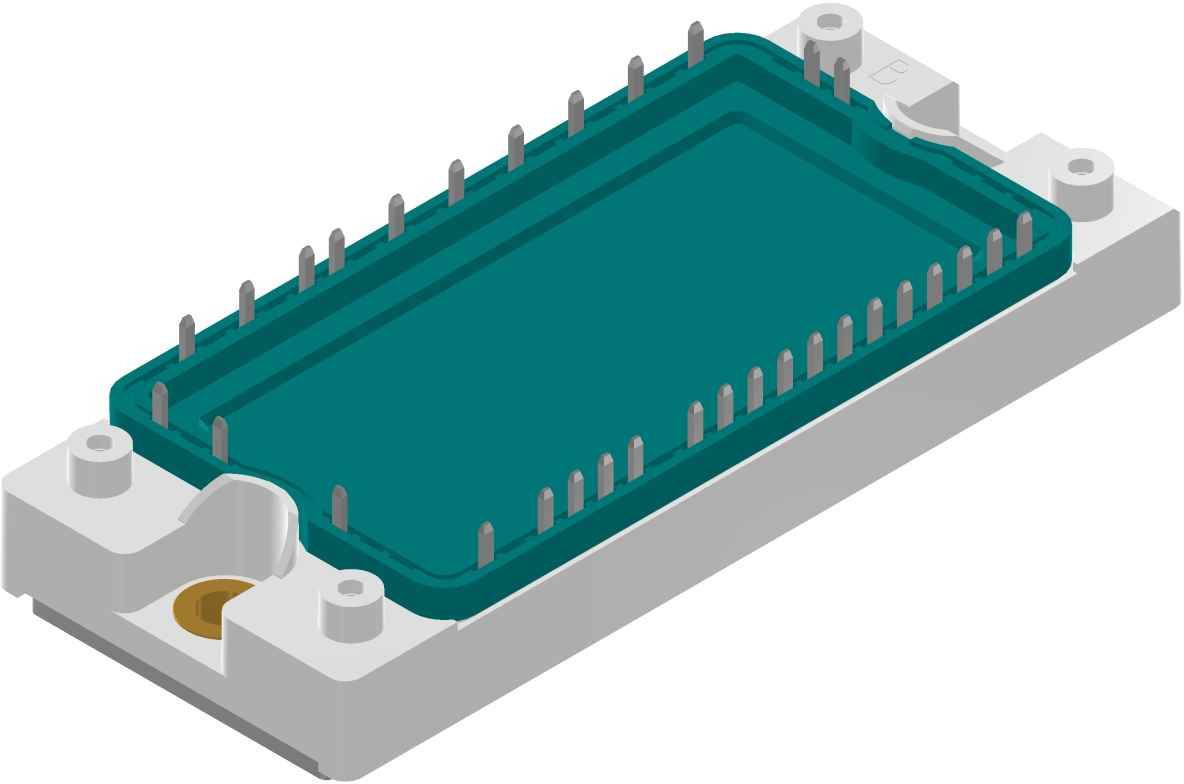

A rectangular electronic chip with pins along the sides, embedded in a white casing, shown in a 3D rendering.

A rectangular electronic chip with pins along the sides, embedded in a white casing, shown in a 3D rendering.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E2-Pack

Collector current

12 A

Type

MIXA10WB1200TED

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package type E2 pack
Maximum repetitive blocking voltage (V) 1600 V
VCES - Collector emitter voltage (V) 1200 V
Turn-off energy @ 125 (mJ): 1.1 mJ
Maximum always output current at 80°C 105 A
Six Pack IGBT collector current at 80℃C: 12 A
Forward current at 80C: 13 a
IGBT Brake collector current at 80℃C: 12 A
Thermistor with negative temperature coefficient: YES
Collector emitter saturation voltage at 25C:1.8 V

Packaging type: Bulk

Type: MIXA10WB1200TED

Product type: IGBT module

Enclosure: E2-Pack

Manufacturer: Littelfuse

Manuf. code: LIT

Collector emitter reverse voltage U(CES): 1200 V

Collector current: 12 A

Collector-emitter saturation voltage (max.): 1.8 V

Type: IGBT
