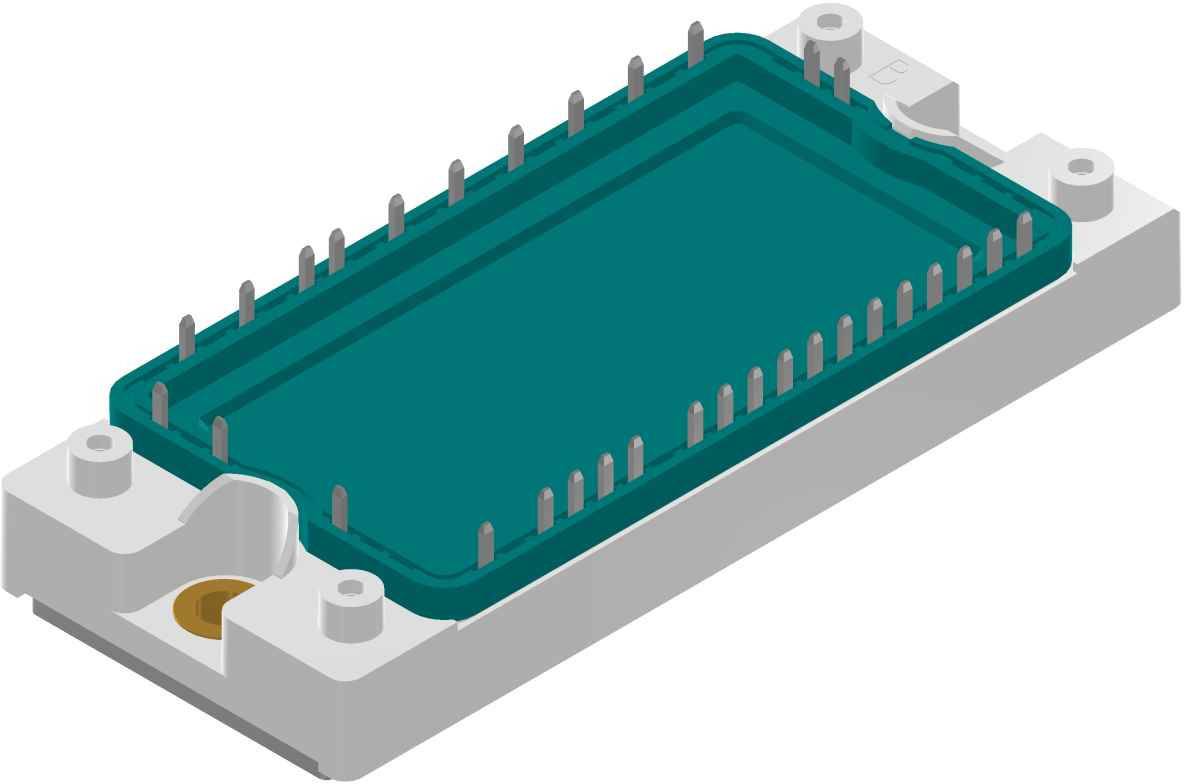

A rectangular electronic component with metal contacts on the top surface. It is mounted in a housing and is presumably used for power supply.

A rectangular electronic component with metal contacts on the top surface. It is mounted in a housing and is presumably used for power supply.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E2-Pack

Type

MIXA20WB1200TED

Manufacturer

Littelfuse

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package type E2 pack
Maximum repetitive blocking voltage (V) 1600 V
VCES - Collector emitter voltage (V) 1200 V
Turn-off energy @ 125 (mJ): 1.7 mJ
Maximum always output current at 80°C 105 A
Six Pack IGBT collector current at 80℃C: 20 A
Forward current at 80C: 22 a
IGBT Brake collector current at 80℃C: 12 A
Thermistor with negative temperature coefficient: YES
Collector emitter saturation voltage at 25C:1.8 V

Packaging type: Bulk

Type: MIXA20WB1200TED

Product type: IGBT module

Enclosure: E2-Pack

Manufacturer: Littelfuse

Collector emitter reverse voltage U(CES): 1200 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2961251 Littelfuse MIXA20WB1200TED IGBT module E2-Pack 1200 V Bulk
