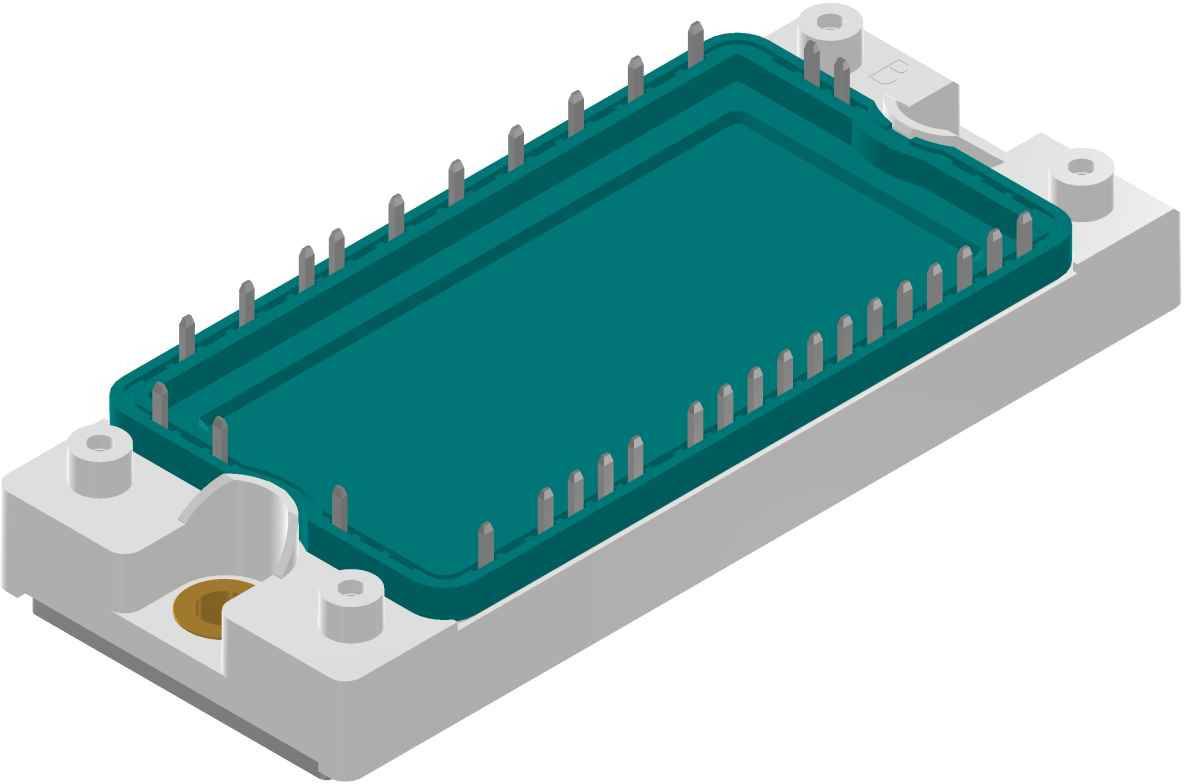

Electronic component, possibly a power semiconductor, with pins along the edges; suitable for mounting on circuit boards.

Electronic component, possibly a power semiconductor, with pins along the edges; suitable for mounting on circuit boards.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E2-Pack

Type

MIXA30WB1200TED

Manufacturer

Littelfuse

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package type E2 pack
Maximum repetitive blocking voltage (V) 1600 V
VCES - Collector emitter voltage (V) 1200 V
Turn-off energy @ 125 (mJ): 3 mJ
Maximum always output current at 80°C 105 A
Six Pack IGBT collector current at 80℃C: 30 A
Forward current at 80C: 30 a
IGBT Brake collector current at 80℃C: 12 A
Thermistor with negative temperature coefficient: YES
Collector emitter saturation voltage at 25C:1.8 V

Packaging type: Bulk

Type: MIXA30WB1200TED

Product type: IGBT module

Enclosure: E2-Pack

Manufacturer: Littelfuse

Collector emitter reverse voltage U(CES): 1200 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2961253 Littelfuse MIXA30WB1200TED IGBT module E2-Pack 1200 V Bulk
