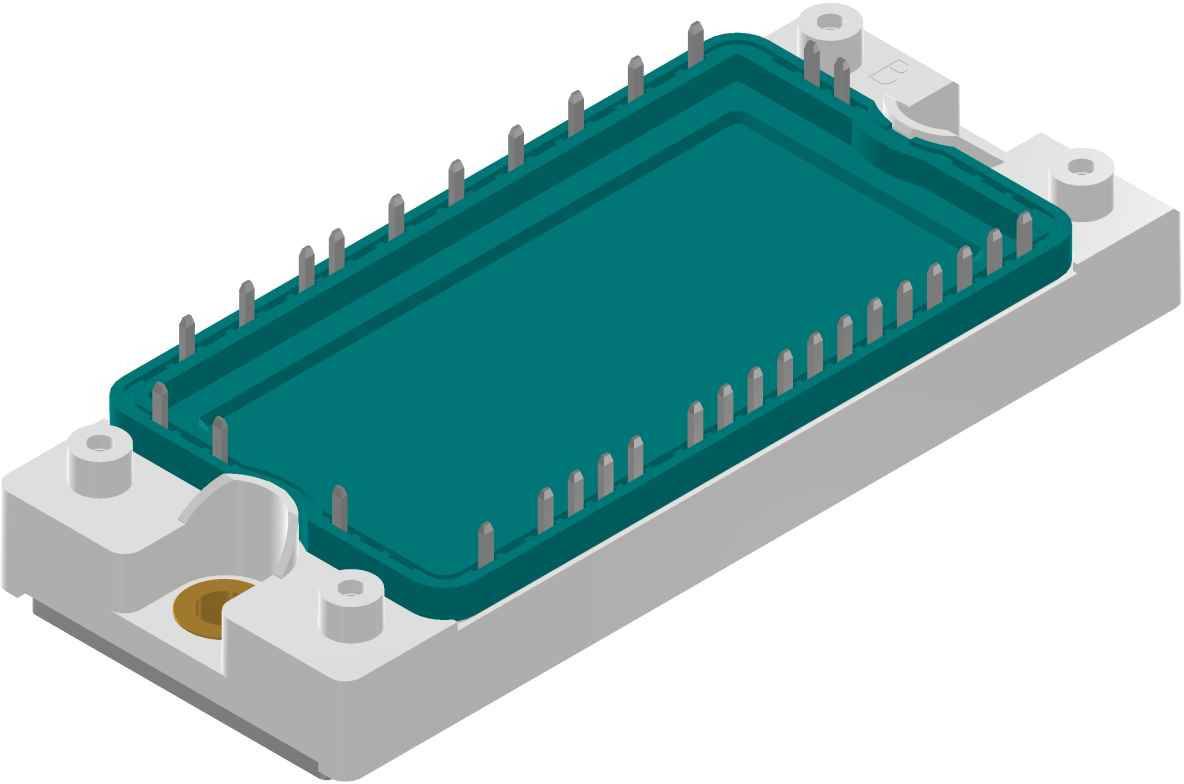

Graphic of a power semiconductor module. Rectangular shape with multiple connection pins on the sides. Main components in green and white.

Graphic of a power semiconductor module. Rectangular shape with multiple connection pins on the sides. Main components in green and white.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E2-Pack

Collector current

40 A

Type

MIXA40W1200TED

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package type E2 pack
VCES - Collector emitter voltage (V) 1200 V
IC AT 80C 40 A
VCE Saturation 1.8 V
Turn-off energy @ 125 (mJ): 4.1 mJ
Forward current at 80C: 29 a
Thermistor with negative temperature coefficient: YES
Collector emitter saturation voltage at 25C:1.8 V

Packaging type: Bulk

Type: MIXA40W1200TED

Product type: IGBT module

Enclosure: E2-Pack

Manufacturer: Littelfuse

Manuf. code: LIT

Collector emitter reverse voltage U(CES): 1200 V

Collector current: 40 A

Collector-emitter saturation voltage (max.): 1.8 V

Type: IGBT

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2961254 Littelfuse MIXA40W1200TED IGBT module E2-Pack 1200 V Bulk
