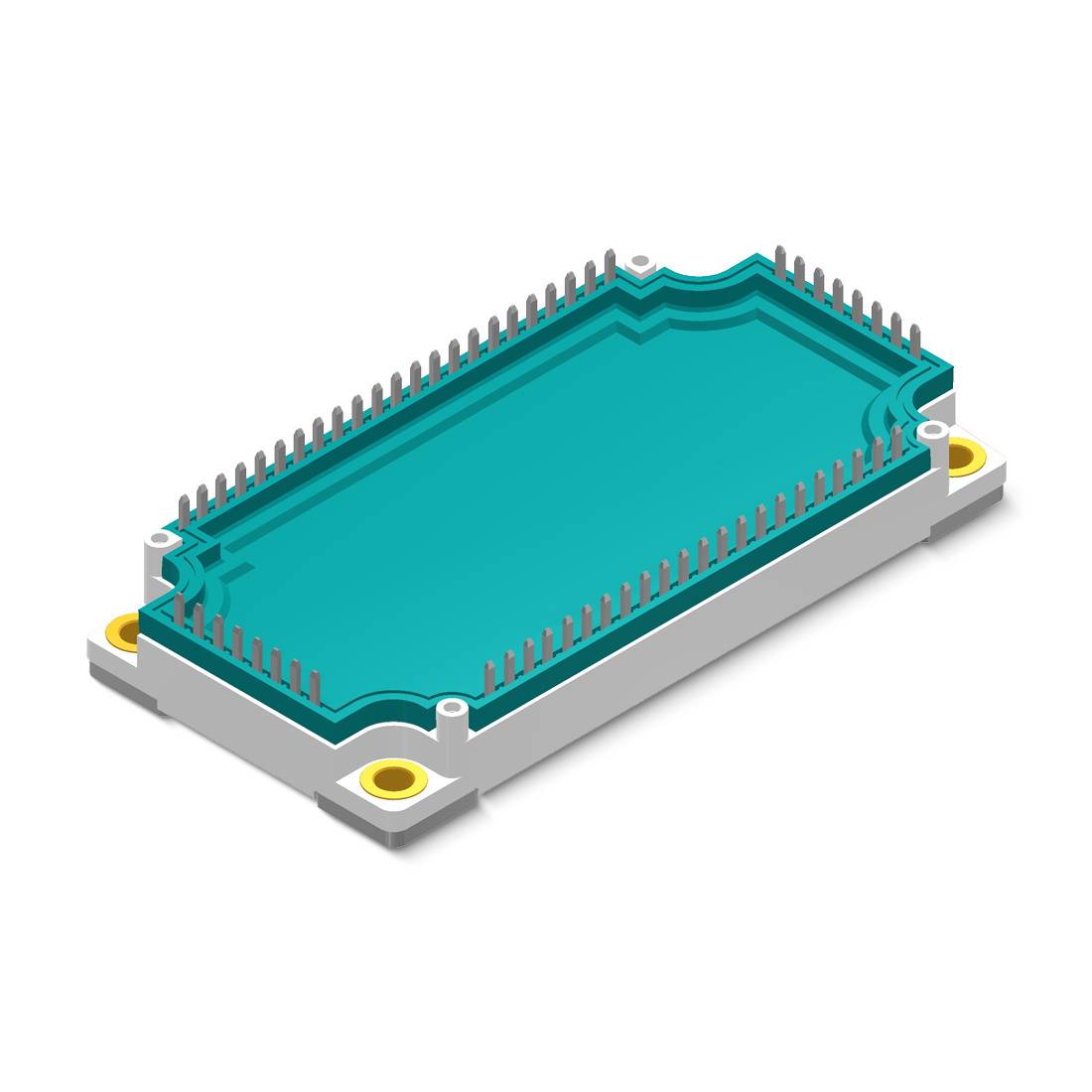

A rectangular electronic component with numerous pins along its sides, potentially a microchip or module, in turquoise and grey.

A rectangular electronic component with numerous pins along its sides, potentially a microchip or module, in turquoise and grey.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E3-Pack

Collector current

84 A

Type

MIXA80WB1200TEH

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package type E3 pack
Maximum repetitive blocking voltage (V) 1600 V
VCES - Collector emitter voltage (V) 1200 V
Turn-off energy @ 125 (mJ): 8.3 mJ
Maximum always output current at 80°C 265 A
Six Pack IGBT collector current at 80℃C: 84 A
Forward current at 80C: 90 a
IGBT Brake collector current at 80℃C: 40 A
Thermistor with negative temperature coefficient: YES
Collector emitter saturation voltage at 25C:1.8 V

Packaging type: Bulk

Type: MIXA80WB1200TEH

Product type: IGBT module

Enclosure: E3-Pack

Manufacturer: Littelfuse

Collector emitter reverse voltage U(CES): 1200 V

Collector current: 84 A

Collector-emitter saturation voltage (max.): 1.8 V

Type: IGBT
