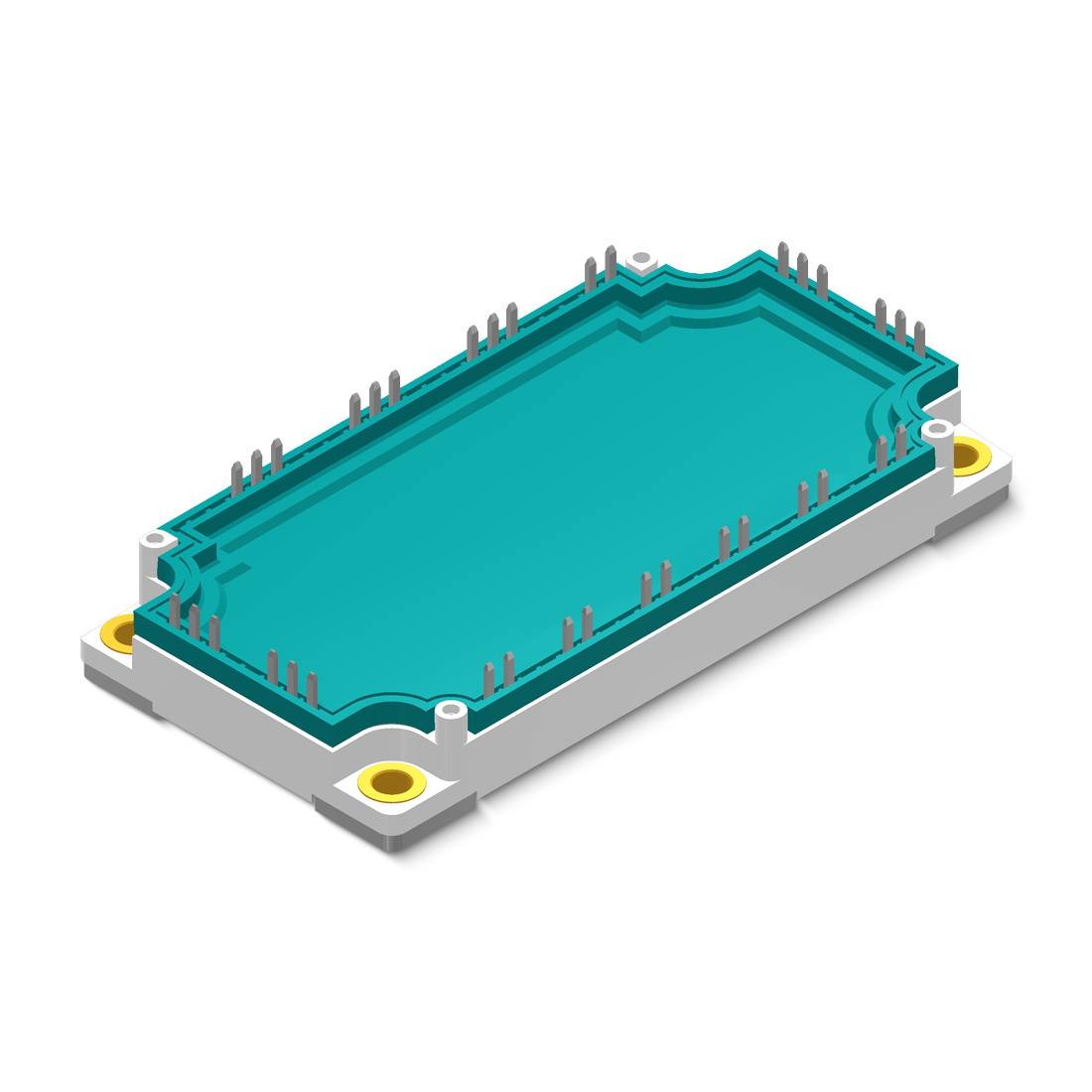

An electronic module with a rectangular housing and multiple connection pins along the sides, likely for technical applications.

An electronic module with a rectangular housing and multiple connection pins along the sides, likely for technical applications.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E3-Pack

Collector current

165 A

Type

MIXG180W1200TEH

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package type E3 pack
VCES - Collector emitter voltage (V) 1200 V
Thermistor with negative temperature coefficient: YES
Collector current at 100℃C 165 A
Collector emitter saturation voltage at 25C:1.7 V
E OFF 150C MJ:17.4 MJ
Forward current at 100℃ 136 a

Packaging type: Bulk

Type: MIXG180W1200TEH

Product type: IGBT module

Enclosure: E3-Pack

Manufacturer: Littelfuse

Collector emitter reverse voltage U(CES): 1200 V

Collector current: 165 A

Collector-emitter saturation voltage (max.): 1.7 V

Type: IGBT
