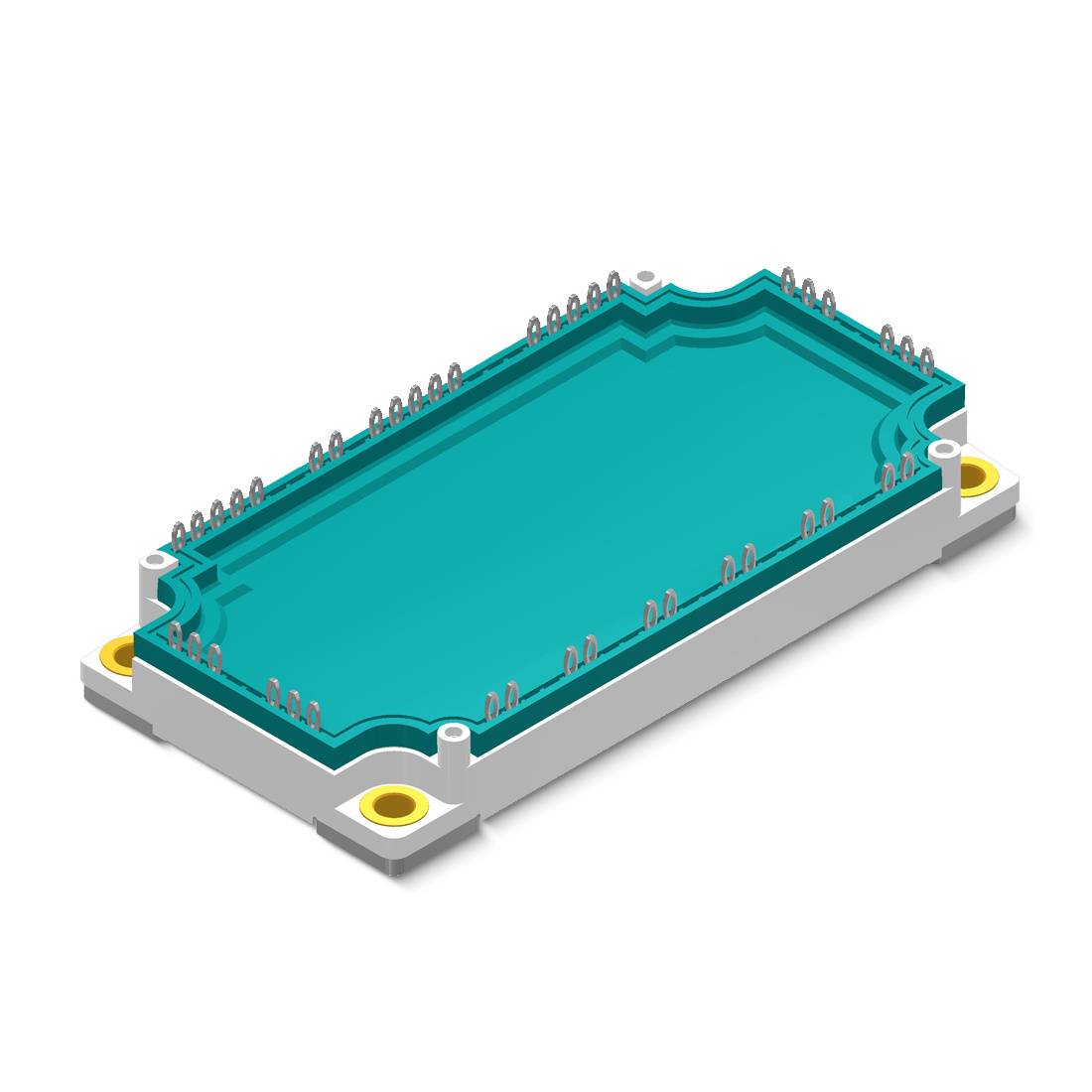

A blue electronic circuit module with multiple pins on the sides, mounted on a grey base.

A blue electronic circuit module with multiple pins on the sides, mounted on a grey base.

Packaging type

Bulk

Product type

IGBT module

Enclosure

E3-Pack-PFP

Collector current

200 A

Type

MIXG240W1200PZTEH

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Package Type: E3 Pack PFP
VCES - Collector emitter voltage (V) 1200 V
Thermistor with negative temperature coefficient: YES
Pressfit pins: YES
Phase change material on base plate: YES
Collector current at 100℃C 200 A
Collector emitter saturation voltage at 25C:1.7 V
E OFF 150C MJ:20.5 MJ
Forward current at 100℃ 114 a
Shunt resistance for current measurements: 0.5 mΩ

Packaging type: Bulk

Type: MIXG240W1200PZTEH

Product type: IGBT module

Enclosure: E3-Pack-PFP

Manufacturer: Littelfuse

Manuf. code: LIT

Collector emitter reverse voltage U(CES): 1200 V

Collector current: 200 A

Collector-emitter saturation voltage (max.): 1.7 V

Type: IGBT
