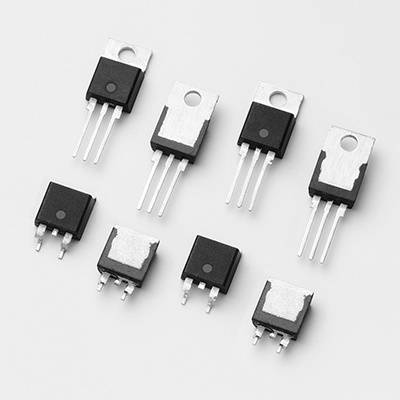

'Nine electronic semiconductors: three large, three medium, three small, all with three terminals, on a white background.'

'Nine electronic semiconductors: three large, three medium, three small, all with three terminals, on a white background.'

Packaging type

Tube

Product type

Thyristor (SCR)

U(DRM)

800 V

I(T)(RMS)

25 A

Type

S8025LTP

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

On-State Current (Itrms) (A) 25 A
Repetitive Peak Off-State Voltage (VDRM) (V) 800 V
Max Gate Trigger Current (IGTMAX) (mA) 35 mA
Non-Repetitive Surge Current (ITSM 60Hz) (A) 350 A.
Di/dt @ 110°C (A/μs): 150 A/μs
IDRM@VDRM 25°C(mA) 0.02 mA
Gate trigger voltage MAX 1.5 V
tgt (μs) 2 μs
VTM (V) 1.6 V
Turn-off time (µs): 35 µs
DV/dt @ 125°C (V/μs): 300 V/μs
IDRM@VDRM 125°C(mA) 2 mA

Packaging type: Tube

Type: S8025LTP

Product type: Thyristor (SCR)

Manufacturer: Littelfuse

U(DRM): 800 V

Gate trigger current I(GT): 35 mA

I(T)(RMS): 25 A

I(TSM 60 Hz): 350 A

Forward current slew rate di(T)/dt: 150 A/µs

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2969569 Littelfuse S8025LTP Thyristor (SCR) 800 V Tube
