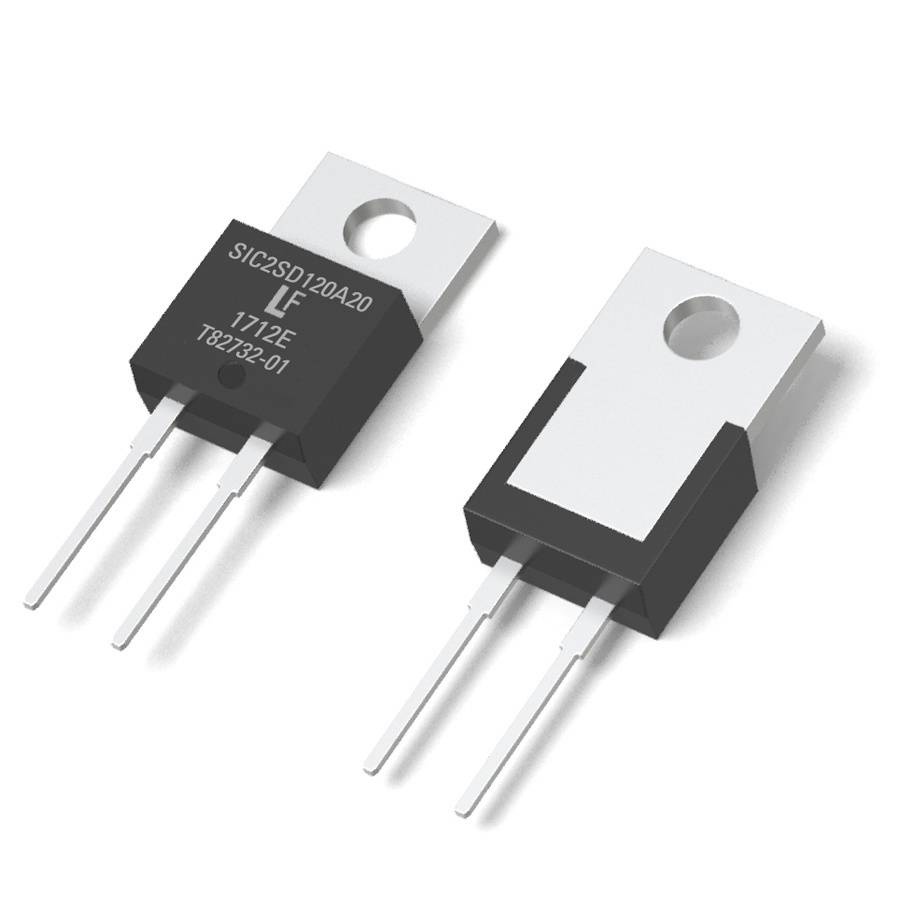

Two black high-performance electronic components, probably power transistors or diodes, with three connection pins and a mounting hole.

Two black high-performance electronic components, probably power transistors or diodes, with three connection pins and a mounting hole.

Packaging type

Tube

Product type

SiC Schottky rectifier

Reverse voltage U(R)

1200 V

Configuration (diode)

Single

Forward voltage U(F)

1.5 V

Littelfuse

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

AEC-Q101 Qualified Yes
Forward Voltage Drop VF (V): 1.5 V
Configuration: Single
Max Repetitive Reverse Voltage (VRRM) (V) 1200 V
Peak Forward Surge Current IFSM (A) 140 a
IF/AV 54.5 A
QC (NC) 115 NC
TJ MAX (°C) 175 °C
Reverse current IR (µA) 100 µA

Packaging type: Tube

Type: LSIC2SD120A20A

Product type: SiC Schottky rectifier

Manufacturer: Littelfuse

Manuf. code: LIT

Reverse voltage U(R): 1200 V

Reverse leakage current I(r): 100 µA

Configuration (diode): Single

Peak forward surge current I(FSM): 140 A

Forward voltage U(F): 1.5 V

Operating temperature (max.): 175 °C

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2961042 Littelfuse SiC Schottky rectifier LSIC2SD120A20A 1200 V Single Tube
