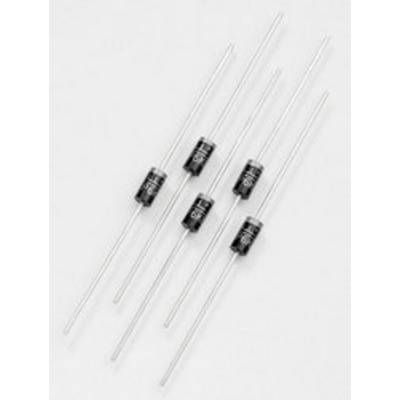

Littelfuse TVS diode P6KE20A DO 15 21 V 600 W Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
TVS diode
Enclosure
DO 15
Reverse voltage U(R)
17.1 V
Terminal voltage U(CL)
27.7 V
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.27
9
11% = € 0.03
€ 0.24
15
11% = € 0.03
€ 0.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.27 / piece)
€ 0.81
plus VAT.
14-day return policy included
Technical specifications
- Max Clamp Voltage (Vc) (V) 27.7 V
- Reverse Standby Voltage (VR) (VSO) 17.1 V
- Watts (W) 600 W
- Peak Pulse Current (IPP) 10x1000 (A) 22 A
- Breakdown voltage (MIN VBR@IT) (V): 19 V
- Breaking-down Voltage (VBR@IT) (V): 21 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 175 °C
- Polarity unipolar
- DO-15 package
- Packaging type
Package
- Type
P6KE20A
- Product type
TVS diode
- Enclosure
DO 15
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
17.1 V
- Breakdown voltage U(BR)
21 V
- Terminal voltage U(CL)
27.7 V
- Peak current I(pp)
22 A
- Power (max) P(TOT)
600 W
- Polarity
Unipolar
- Power line protection
Yes
- Operating temperature (max.)
175 °C
