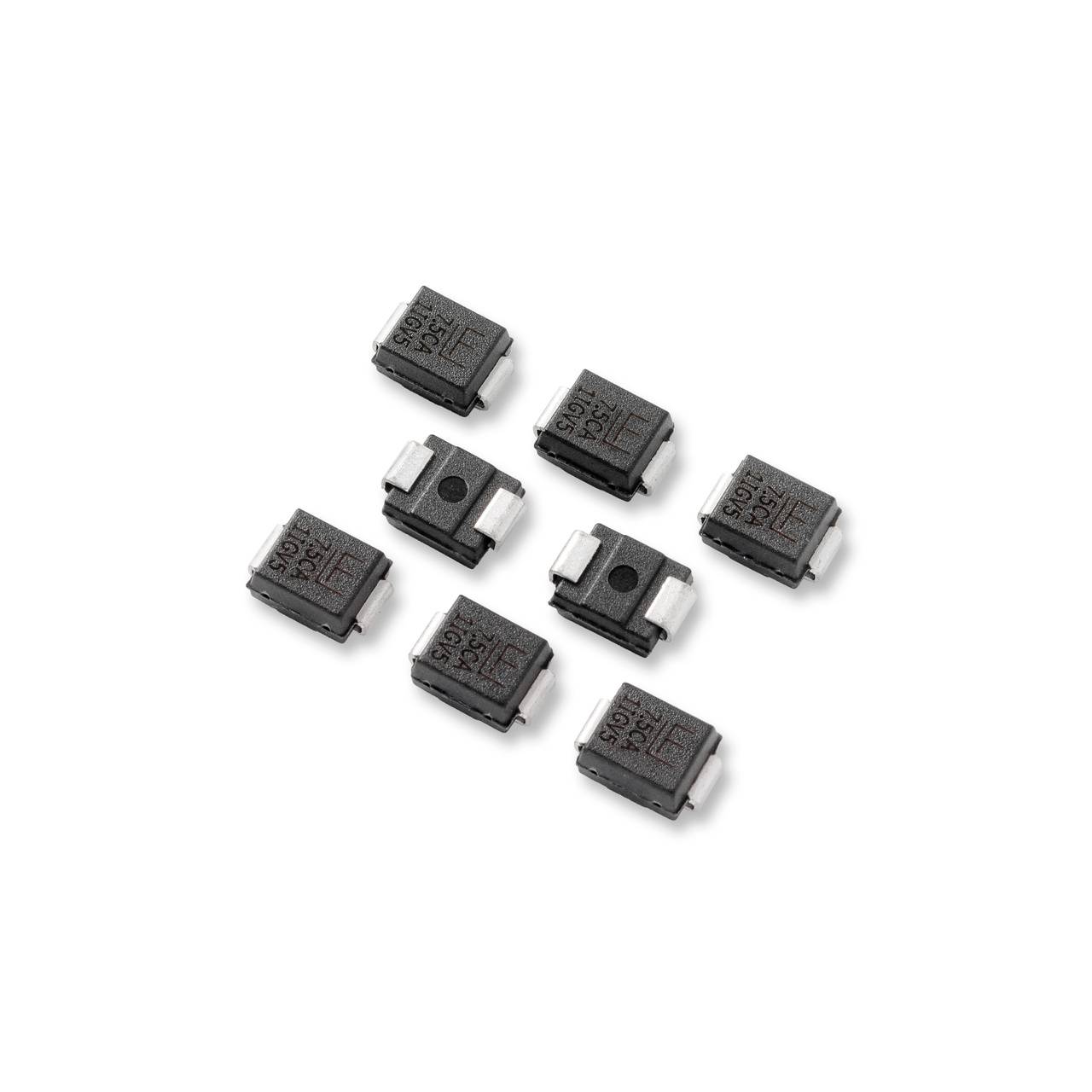

Littelfuse TVS diode P6SMB11CA DO 214AA 11.6 V 600 W Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AA
Reverse voltage U(R)
9.4 V
Terminal voltage U(CL)
15.6 V
Technical specifications
- Max Clamp Voltage (Vc) (V) 15.6 V
- Reverse Standby Voltage (VR) (VSO) 9.4 V
- Watts (W) 600 W
- Peak Pulse Current (IPP) 10x1000 (A) 39.1 A
- Breakdown voltage (MIN VBR@IT) (V): 10.5 V
- Breaking-down Voltage (VBR@IT) (V): 11.6 V
- IR @VSO( μA) 5 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Bipolar polarity
- Package DO-214AA
- Packaging type
Tape on Full reel
- Type
P6SMB11CA
- Product type
TVS diode
- Enclosure
DO 214AA
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
9.4 V
- Breakdown voltage U(BR)
11.6 V
- Terminal voltage U(CL)
15.6 V
- Peak current I(pp)
39.1 A
- Power (max) P(TOT)
600 W
- Polarity
Bipolar
- Power line protection
Yes
- Operating temperature (max.)
150 °C
