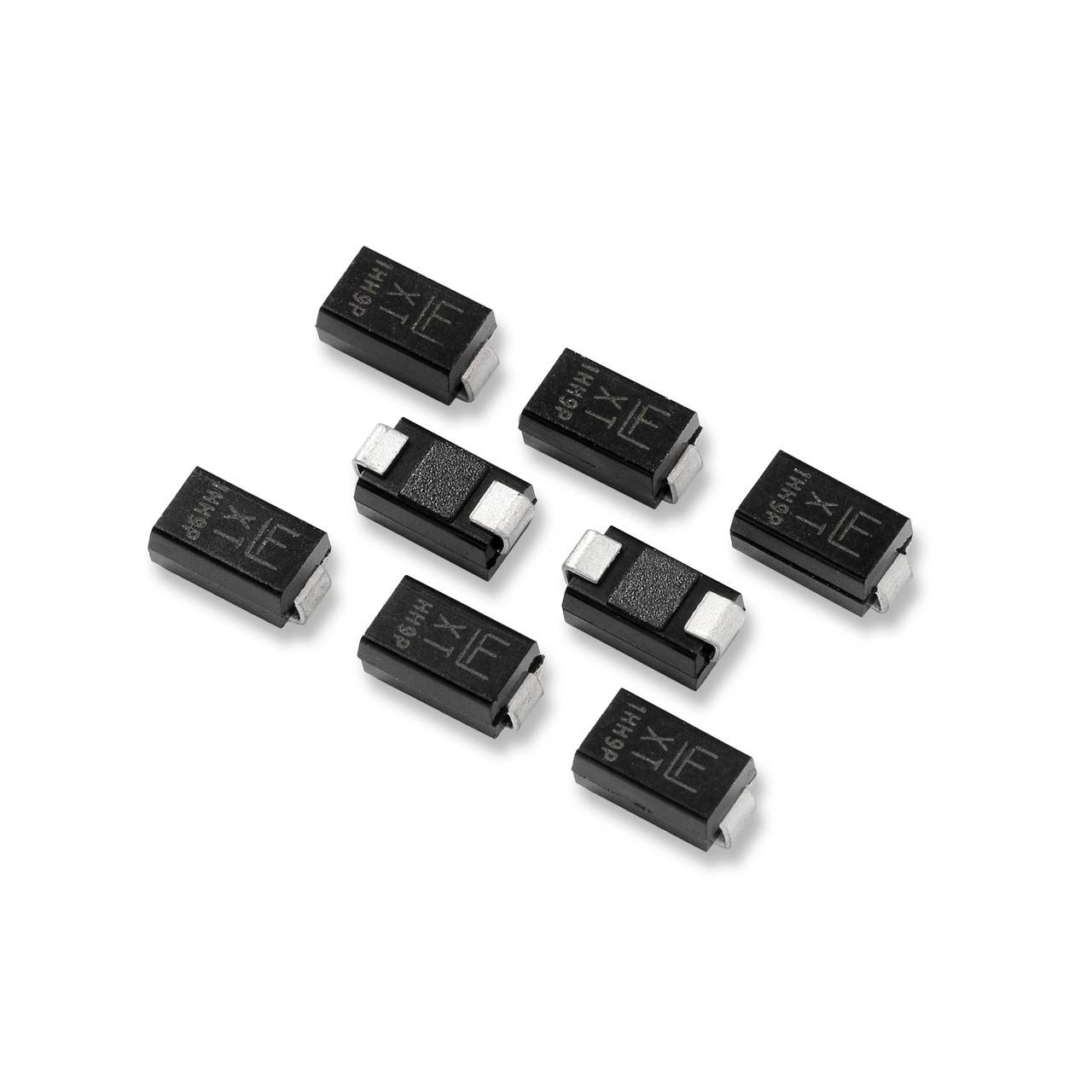

Littelfuse TVS diode SMAJ5.0A DO 214AC 7 V 400 W Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AC
Reverse voltage U(R)
5 V
Terminal voltage U(CL)
9.2 V
Technical specifications
- Max Clamp Voltage (Vc) (V) 9.2 V
- Reverse Standby Voltage (VR) (VSO) 5 V
- Watts (W) 400 W
- Peak Pulse Current (IPP) 10x1000 (A) 43.5 A
- Breakdown voltage (MIN VBR@IT) (V): 6.4 V
- Breaking-down Voltage (VBR@IT) (V): 7 V
- IR @VSO( μA) 800 μA
- On-State Current (IT) (mA): 10 mA
- Operating temperature Maximum Celsius: 150 °C
- Polarity unipolar
- Package DO-214AC
- Packaging type
Tape on Full reel
- Type
SMAJ5.0A
- Product type
TVS diode
- Enclosure
DO 214AC
- Manufacturer
Littelfuse
- Reverse voltage U(R)
5 V
- Breakdown voltage U(BR)
7 V
- Terminal voltage U(CL)
9.2 V
- Peak current I(pp)
43.5 A
- Power (max) P(TOT)
400 W
- Polarity
Unipolar
- Power line protection
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2962450 Littelfuse TVS diode SMAJ5.0A DO 214AC 7 V 400 W Tape on Full reel
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
-42%
€ 1.09
€ 0.63*
