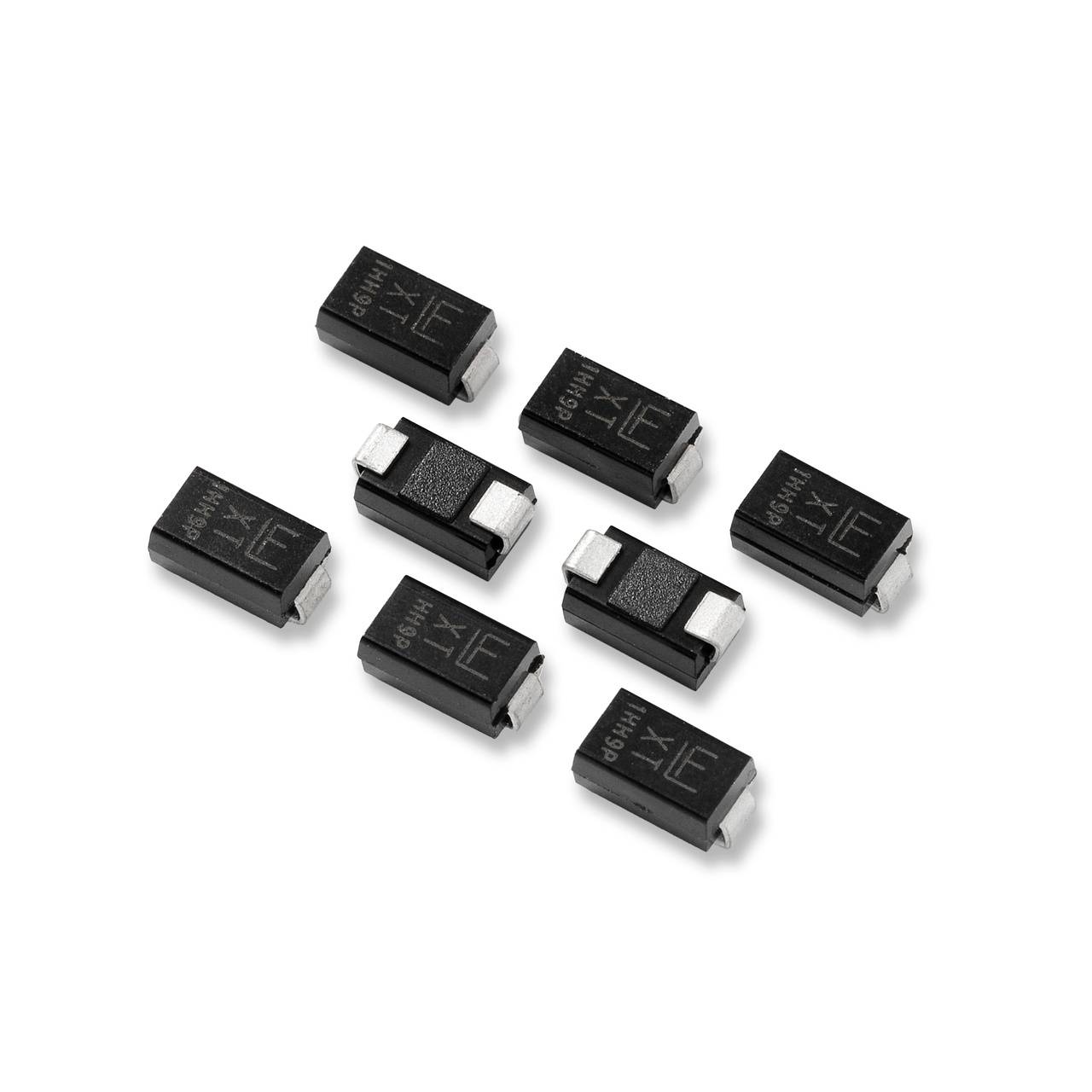

Littelfuse TVS diode SMAJ85A DO 214AC 104 V 400 W Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AC
Reverse voltage U(R)
85 V
Terminal voltage U(CL)
137 V
Technical specifications
- Max Clamp Voltage (Vc) (V) 137 V
- Reverse Standby Voltage (VR) (VSO) 85 V
- Watts (W) 400 W
- Peak Pulse Current (IPP) 10x1000 (A) 2.9 A
- Breakdown voltage (MIN VBR@IT) (V): 94.4 V
- Breaking-down Voltage (VBR@IT) (V): 104 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Polarity unipolar
- Package DO-214AC
- Packaging type
Tape on Full reel
- Type
SMAJ85A
- Product type
TVS diode
- Enclosure
DO 214AC
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
85 V
- Breakdown voltage U(BR)
104 V
- Terminal voltage U(CL)
137 V
- Peak current I(pp)
2.9 A
- Power (max) P(TOT)
400 W
- Polarity
Unipolar
- Power line protection
Yes
- Mounting type
Surface-mount
- Operating temperature (max.)
150 °C
