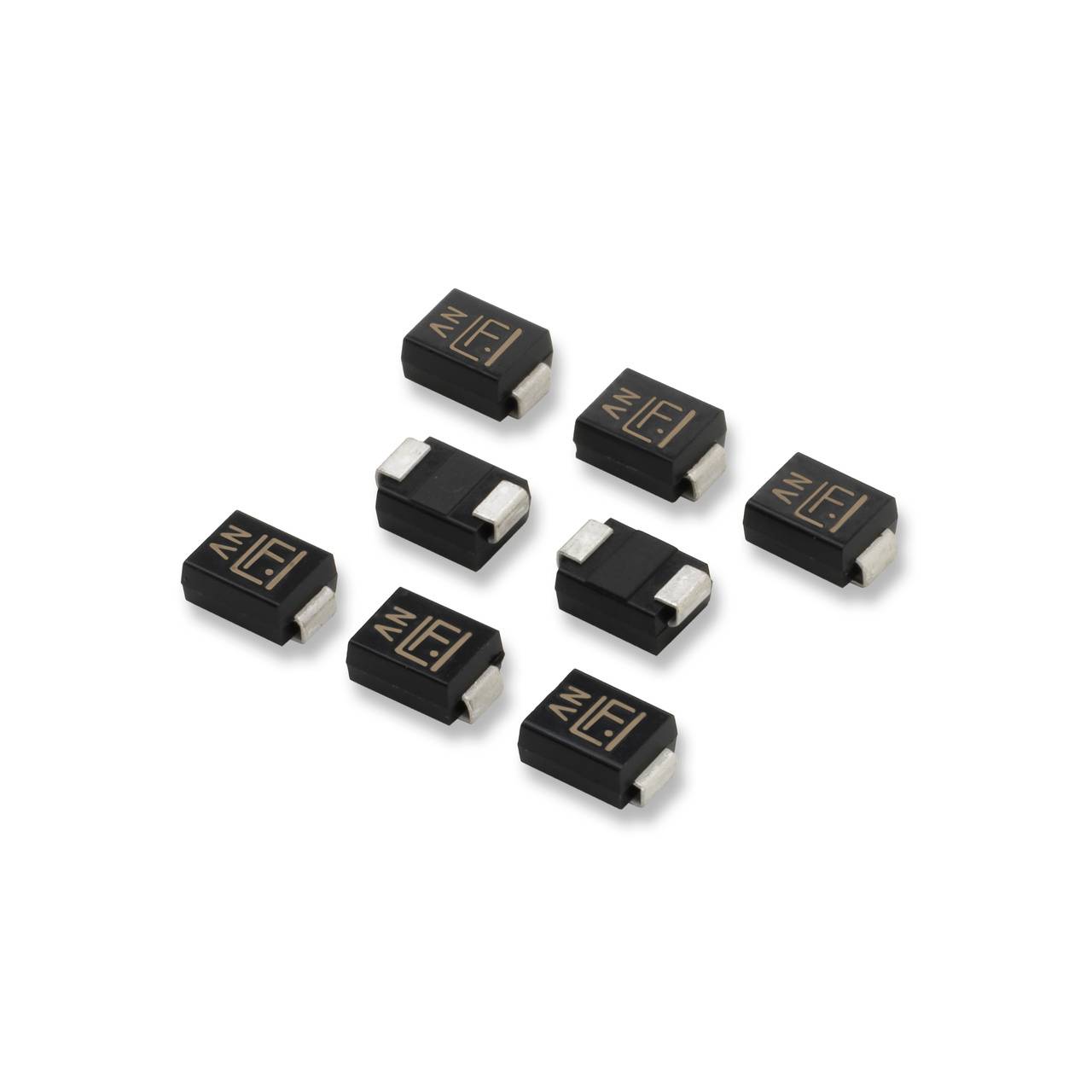

Littelfuse TVS diode SMBJ18A DO 214AA 22.1 V 600 W Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AA
Reverse voltage U(R)
18 V
Terminal voltage U(CL)
29.2 V
Technical specifications
- Max Clamp Voltage (Vc) (V) 29.2 V
- Reverse Standby Voltage (VR) (VSO) 18 V
- Watts (W) 600 W
- Peak Pulse Current (IPP) 10x1000 (A) 20.6 A
- Breakdown voltage (MIN VBR@IT) (V): 20 V
- Breaking-down Voltage (VBR@IT) (V): 22.1 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Polarity unipolar
- Package DO-214AA
- Packaging type
Tape on Full reel
- Type
SMBJ18A
- Product type
TVS diode
- Enclosure
DO 214AA
- Manufacturer
Littelfuse
- Reverse voltage U(R)
18 V
- Breakdown voltage U(BR)
22.1 V
- Terminal voltage U(CL)
29.2 V
- Peak current I(pp)
20.6 A
- Power (max) P(TOT)
600 W
- Polarity
Unipolar
- Power line protection
Yes
- Operating temperature (max.)
150 °C
