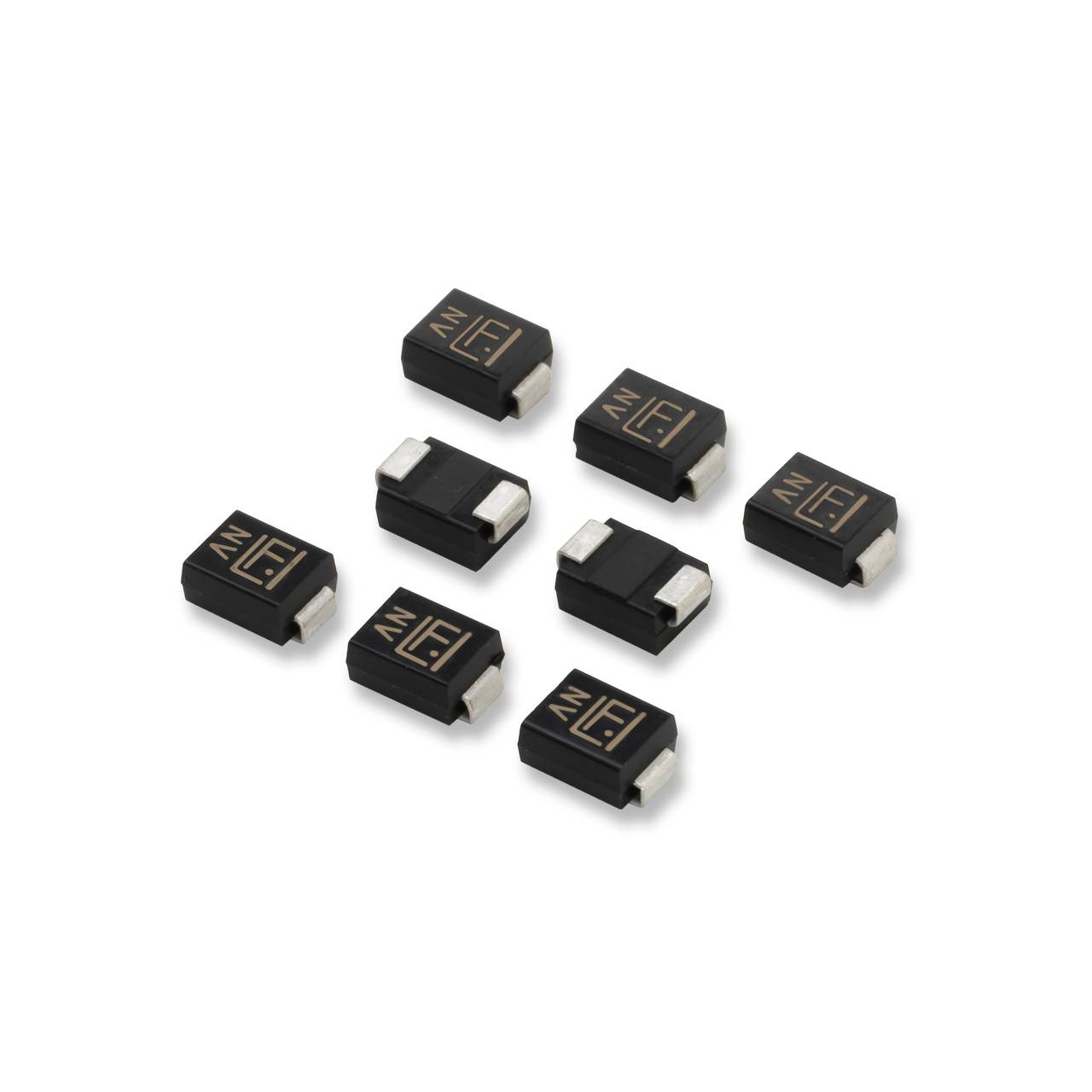

Littelfuse TVS diode SMBJ70A DO 214AA 86 V 600 W Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AA
Reverse voltage U(R)
70 V
Terminal voltage U(CL)
113 V
Technical specifications
- Max Clamp Voltage (Vc) (V) 113 V
- Reverse Standby Voltage (VR) (VSO) 70 V
- Watts (W) 600 W
- Peak Pulse Current (IPP) 10x1000 (A) 5.3 A
- Breakdown voltage (MIN VBR@IT) (V): 77.8 V
- Breaking-down Voltage (VBR@IT) (V): 86 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Polarity unipolar
- Package DO-214AA
- Packaging type
Tape on Full reel
- Type
SMBJ70A
- Product type
TVS diode
- Enclosure
DO 214AA
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
70 V
- Breakdown voltage U(BR)
86 V
- Terminal voltage U(CL)
113 V
- Peak current I(pp)
5.3 A
- Power (max) P(TOT)
600 W
- Polarity
Unipolar
- Power line protection
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2963017 Littelfuse TVS diode SMBJ70A DO 214AA 86 V 600 W Tape on Full reel
