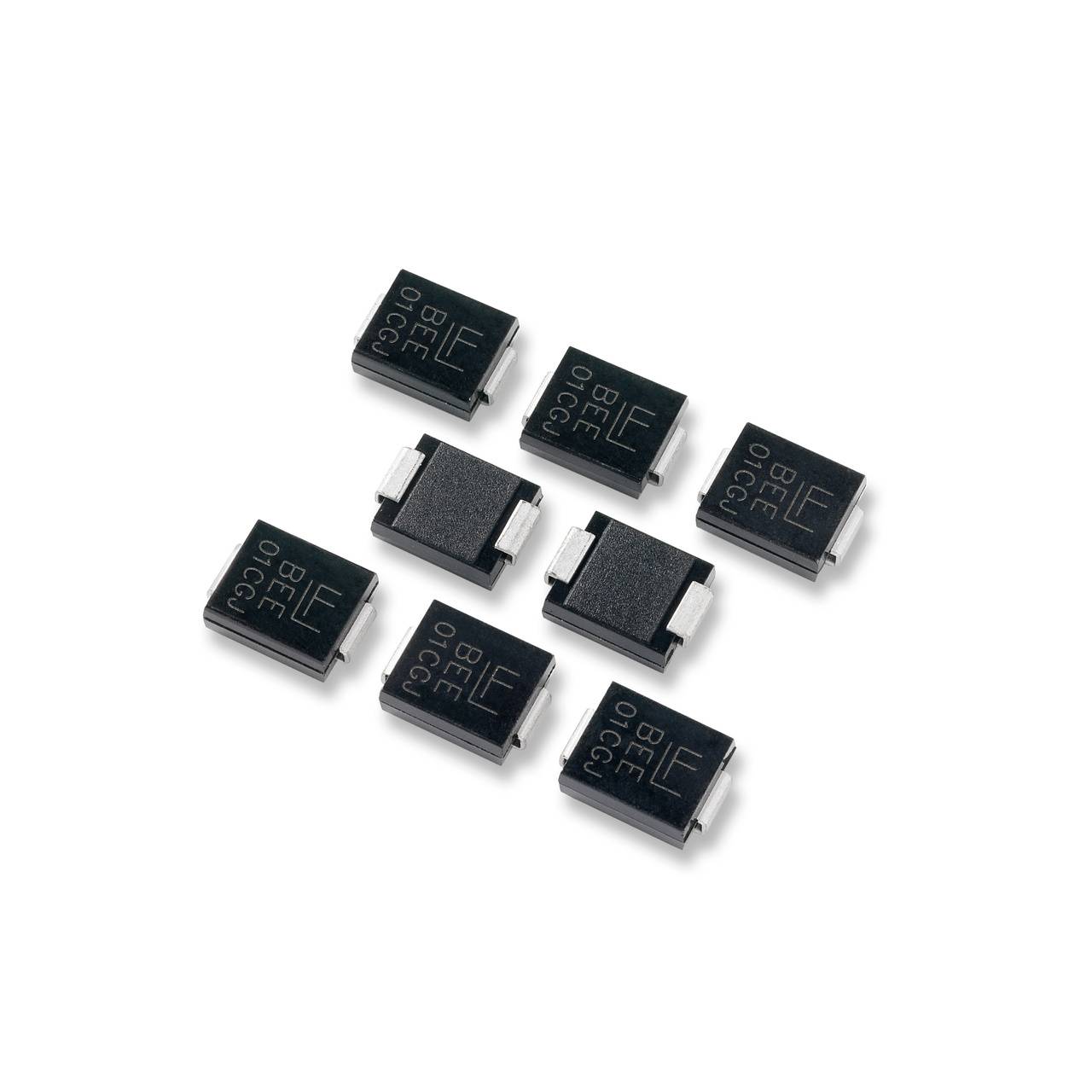

Littelfuse TVS diode SMCJ7.5CA DO 214AB 9.21 V 1500 W Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
TVS diode
Enclosure
DO 214AB
Reverse voltage U(R)
7.5 V
Terminal voltage U(CL)
12.9 V
Technical specifications
- Max Clamp Voltage (Vc) (V) 12.9 V
- Reverse Standby Voltage (VR) (VSO) 7.5 V
- Watts (W) 1500 W
- Peak Pulse Current (IPP) 10x1000 (A) 116.3 A
- Breakdown voltage (MIN VBR@IT) (V): 8.33 V
- Breaking-down Voltage (VBR@IT) (V): 9.21 V
- IR @VSO( μA) 100 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 150 °C
- Bipolar polarity
- Package DO-214AB
- Packaging type
Tape on Full reel
- Type
SMCJ7.5CA
- Product type
TVS diode
- Enclosure
DO 214AB
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
7.5 V
- Breakdown voltage U(BR)
9.21 V
- Terminal voltage U(CL)
12.9 V
- Peak current I(pp)
116.3 A
- Power (max) P(TOT)
1500 W
- Polarity
Bipolar
- Power line protection
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2963787 Littelfuse TVS diode SMCJ7.5CA DO 214AB 9.21 V 1500 W Tape on Full reel
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
-42%
€ 1.09
€ 0.63*
