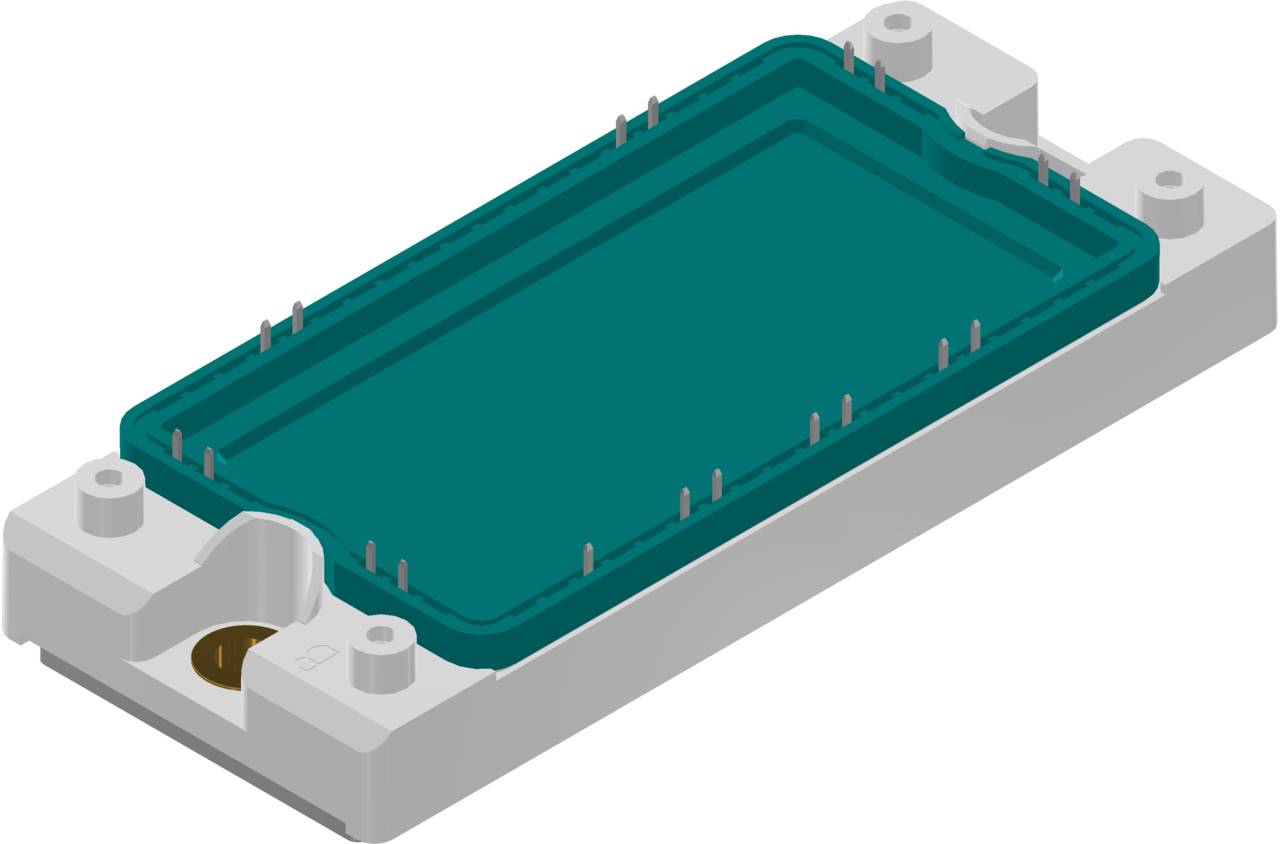

Littelfuse VUB116-16NOXT Diode bridge E2-Pack 1600 V Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Diode bridge
Enclosure
E2-Pack
U(RRM)
1600 V
Type
VUB116-16NOXT
Technical specifications
- Package type E2 pack
- Maximum repetitive blocking voltage (V) 1600 V
- Case temperature 105 °C
- Maximum virtual junction temperature: 150 °C.
- Thermal resistance (junction-case) (K/W): 0.65 K/W.
- VCES - Collector emitter voltage (V) 1200 V
- Forward voltage 1.64 V
- IC AT 80C 84 A
- Average continuous current rating 120 A
- Maximum surge current (A) 700 A
- Slope resistance for Power loss calculation: 7.6 mΩ
- Thermal resistance caeseatsink KW:0.1 K/W.
- VCE Saturation 1.8 V
- Avail. Forward current of free-wheeling diode 32 A
- IRM 23 A
- Maximum rate of rise in current over time: 400 A/µs
- Threshold voltage for Power loss calculation 0.8 V
- trr s 150 s
- Packaging type
Bulk
- Type
VUB116-16NOXT
- Product type
Diode bridge
- Enclosure
E2-Pack
- Manufacturer
Littelfuse
- Manuf. code
LIT
- U(RRM)
1600 V
- I(FSM) 50Hz
700 A
- Reverse leakage current I(r)
23 A
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2965810 Littelfuse VUB116-16NOXT Diode bridge E2-Pack 1600 V Bulk
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
