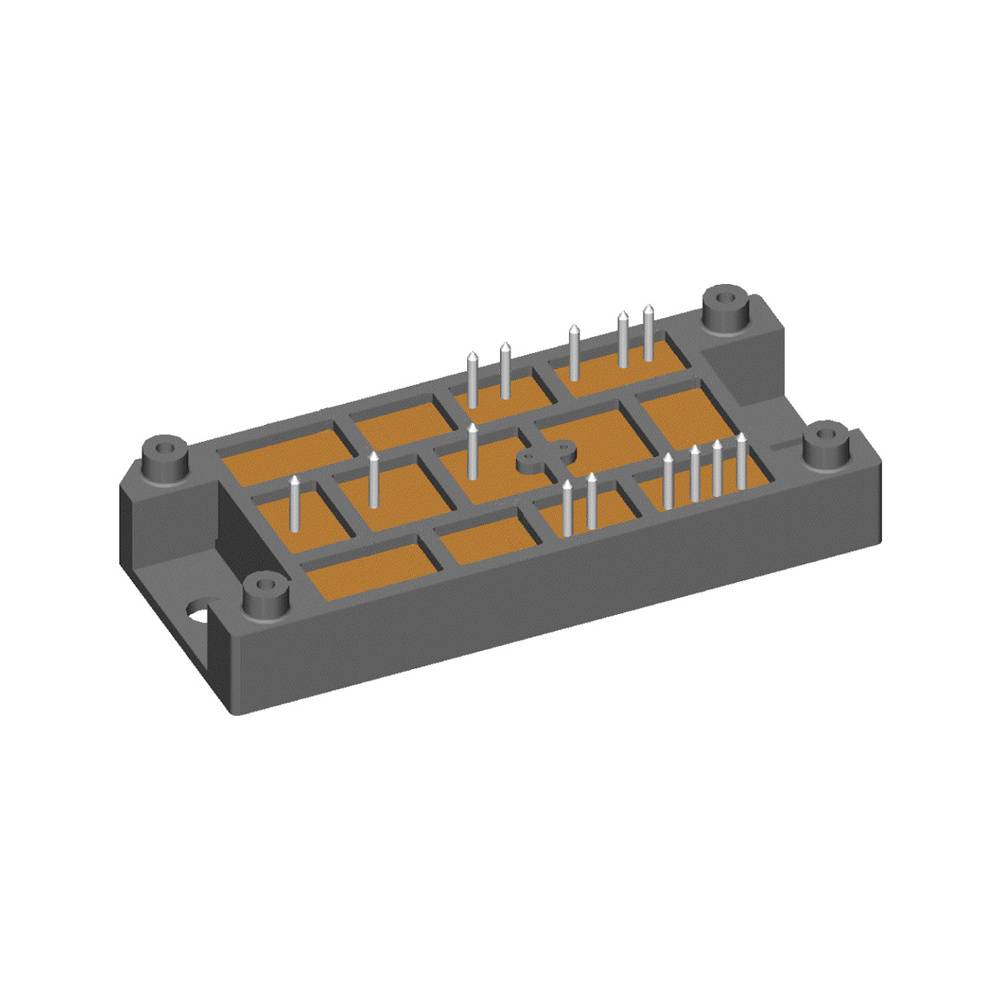

Littelfuse VUB160-16NOX Diode bridge V2-Pack 1600 V Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Diode bridge
Enclosure
V2-Pack
U(RRM)
1600 V
Type
VUB160-16NOX
Technical specifications
- Package type V2 pack
- Maximum repetitive blocking voltage (V) 1600 V
- Case temperature 90 °C
- Maximum virtual junction temperature: 150 °C.
- Thermal resistance (junction-case) (K/W): 0.6 K/W.
- VCES - Collector emitter voltage (V) 1200 V
- Forward voltage 1.55 V
- IC AT 80C 175 A
- Average continuous current rating 180 A
- Maximum surge current (A) 1100 A
- Slope resistance for Power loss calculation: 4.4 mΩ
- Thermal resistance caeseatsink KW:0.2 K/W.
- VCE Saturation 1.7 V
- Avail. Forward current of free-wheeling diode 32 A
- IRM 50 A
- Maximum rate of rise in current over time: 900 A/µs
- Threshold voltage for Power loss calculation 0.81 V
- trr s 350 s
- Packaging type
Bulk
- Type
VUB160-16NOX
- Product type
Diode bridge
- Enclosure
V2-Pack
- Manufacturer
Littelfuse
- U(RRM)
1600 V
- I(FSM) 50Hz
1100 A
- Reverse leakage current I(r)
50 A
- Operating temperature (max.)
150 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2965813 Littelfuse VUB160-16NOX Diode bridge V2-Pack 1600 V Bulk
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
