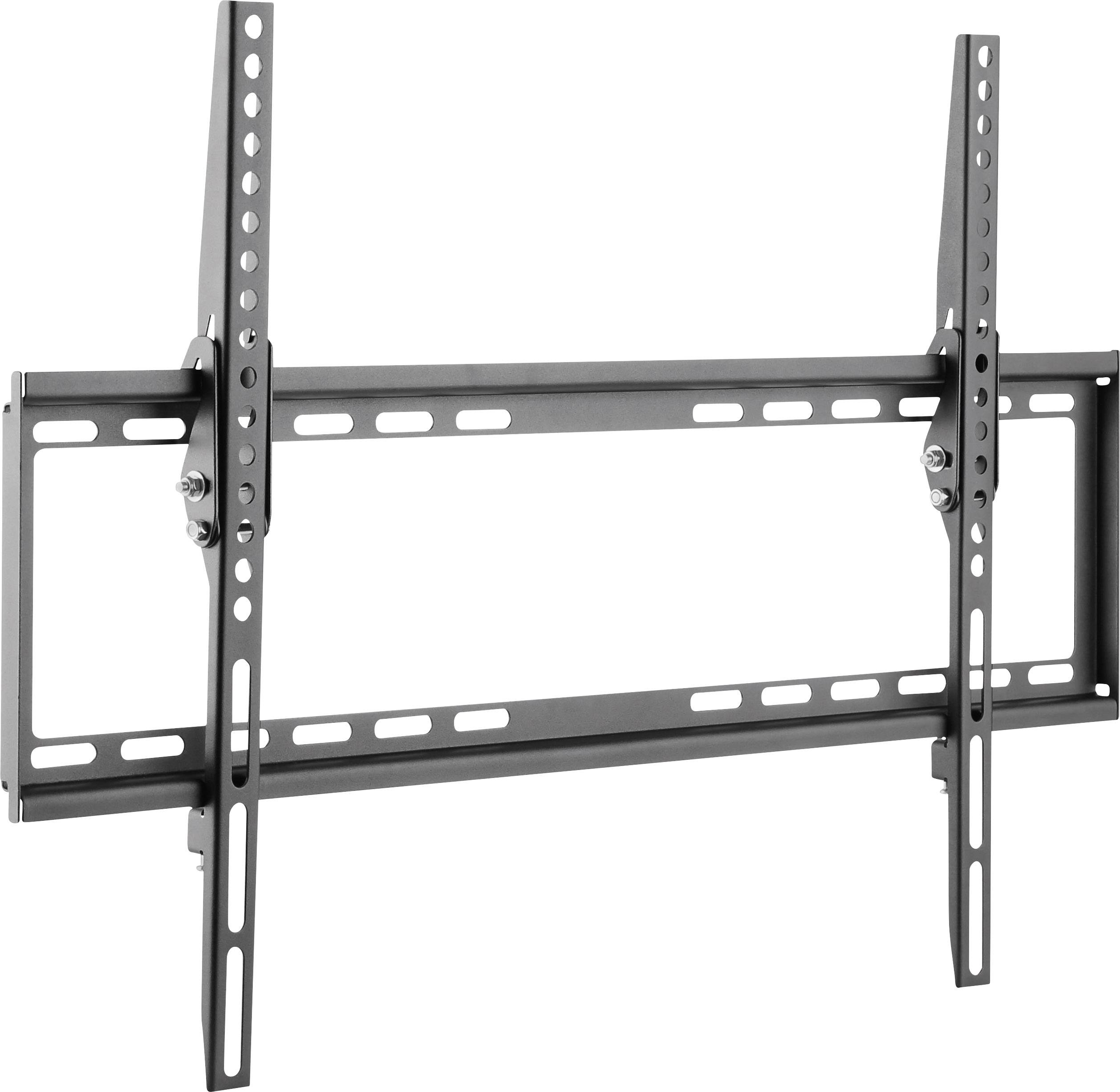

Slim, black TV wall mount with vertical and horizontal mounting rails, suitable for large flat-screen televisions.

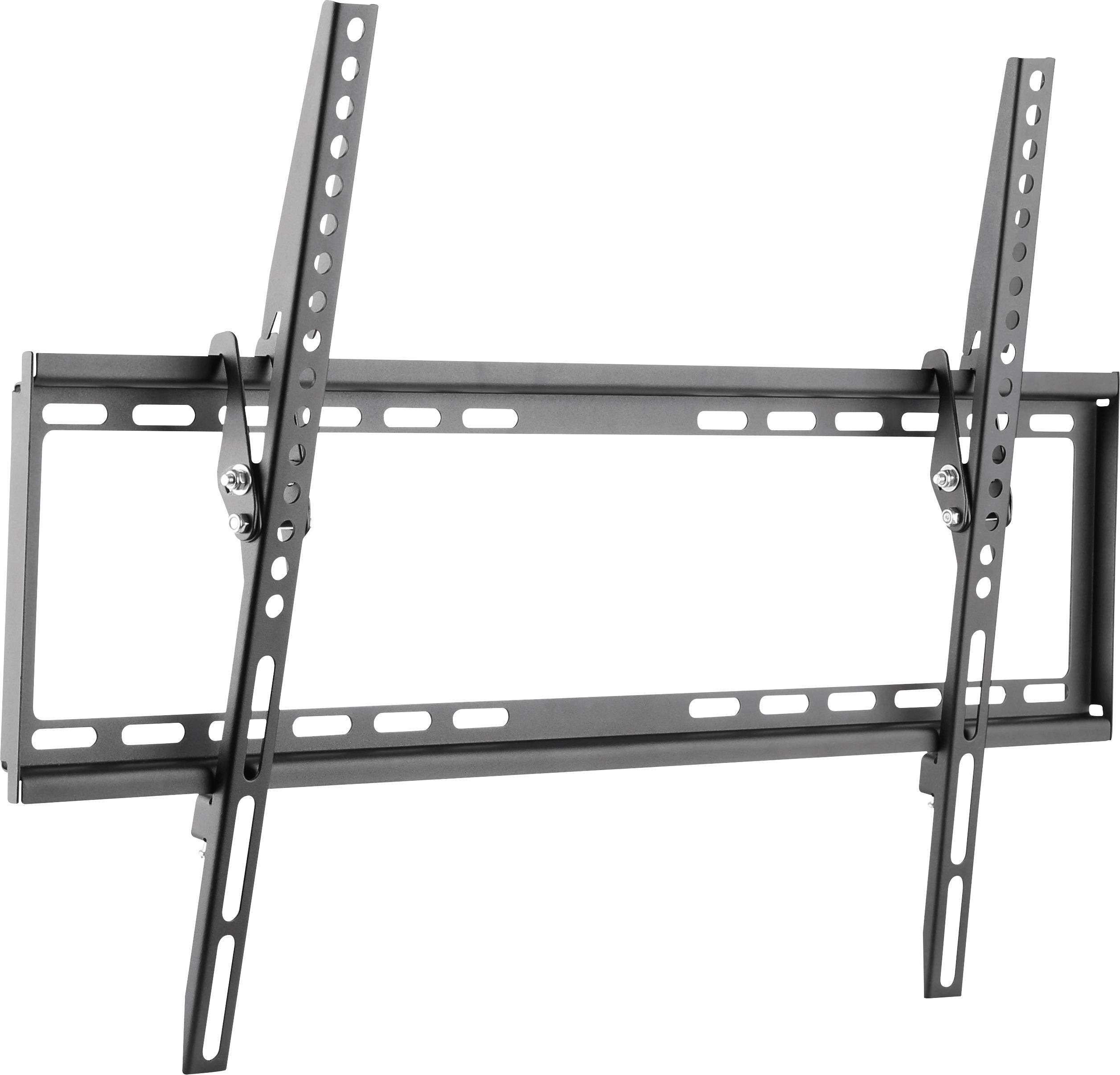

Wall bracket for televisions with articulating arms, suitable for adjusting viewing angle.

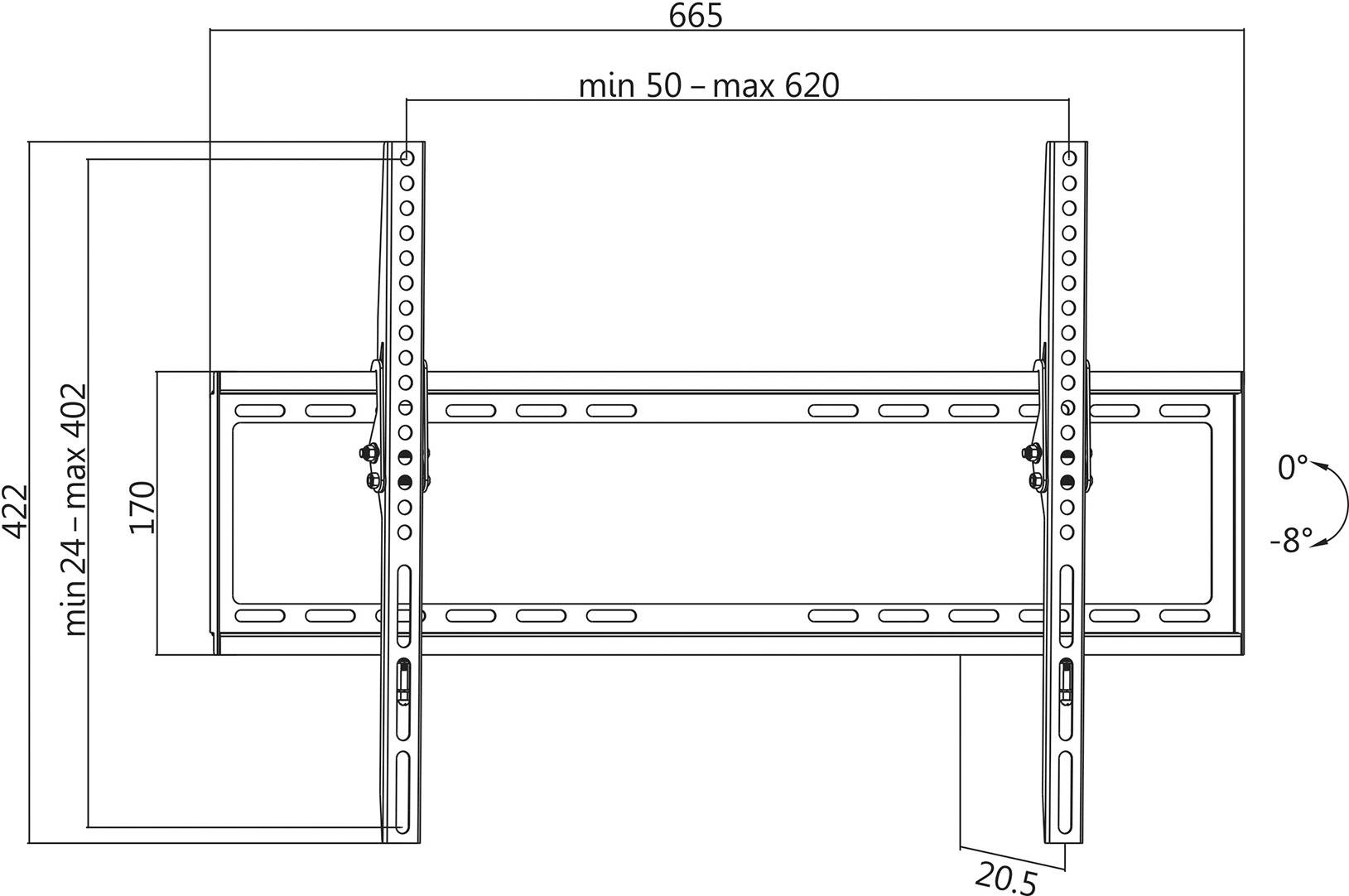

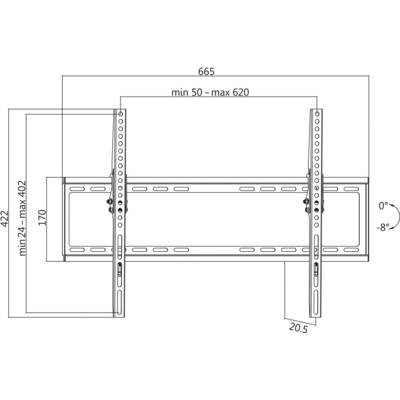

Illustration of an adjustable wall-mounted monitor swivel arm, with dimensions in millimetres. Tilt angle from 0° to -8°.

1/3

Unavailable

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

LogiLink BP0039 TV wall mount

Highlights & Details

Holder type: Tiltable
Supports VESA standards up to
Suitable for displays sized (range): 94,0 cm (37") - 177,8 cm (70")
Load capacity (max.) 35 kg

Technical specifications

Product type: TV wall mount

Suitable for: 94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
Show more

Suitable for: 94,0 cm (37") - 177,8 cm (70")

Holder type: Tiltable

Max. load capacity: 35 kg

: No

: 200 x 200 mm
400 x 200 mm
300 x 300 mm
400 x 400 mm
600 x 400 mm

Tilt range (bottom): -8°

Tilt range (top): 0°

Distance to wall (min.): 20.5 mm

Width: 665 mm

Height: 422 mm

Depth: 205 mm

Factory colour: Black

Weight: 1.20 kg

Dim: (W x H x D) 665 x 422 x 205 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1651165 LogiLink BP0039 TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable

Description

For places where you avoided, and accordingly the screen position may change slightly spiegl unread. Ideal for glare, for example, in the bedroom by tilting to resolve.
