LogiLink BP0047 TV corner mounted brackets 94,0 cm (37") - 177,8 cm (70") Rotatable, Tiltable, Swivelling Corner mount
EAN:
Part number:
Item no:

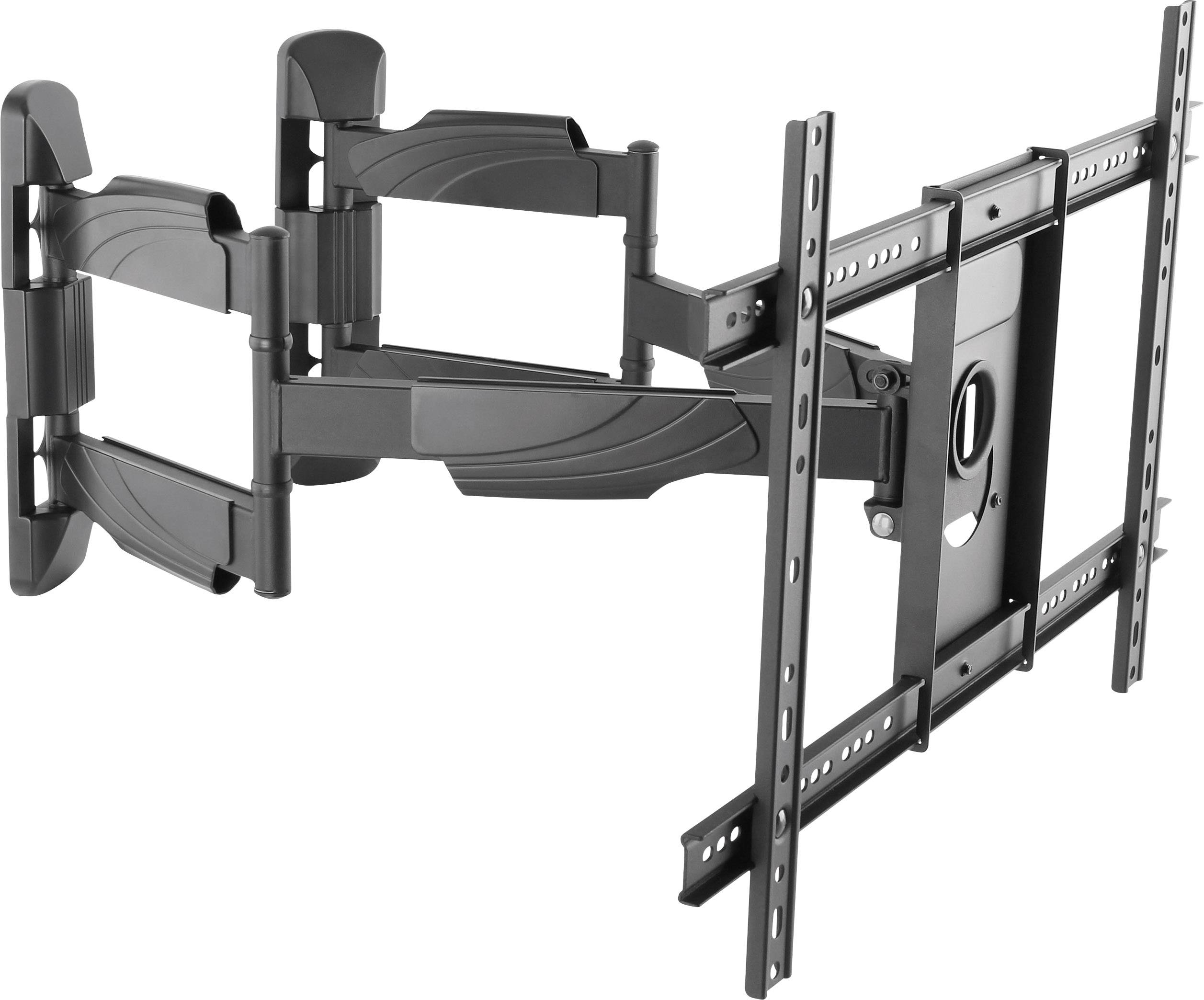

LogiLink BP0047 TV corner mounted brackets
Highlights & Details
- Holder type: Rotatable, Tiltable, Swivelling
- Supports VESA standards up to
- Suitable for displays sized (range): 94,0 cm (37") - 177,8 cm (70")
- Load capacity (max.) 45 kg
Technical specifications
- Product type
TV corner mounted brackets
- Suitable for
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
Show more
- Suitable for
94,0 cm (37") - 177,8 cm (70")
- Holder type
Rotatable
Tiltable
Swivelling
- Features
Corner mount
- Max. load capacity
45 kg
No
200 x 200 mm
300 x 200 mm
300 x 300 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
600 x 400 mm
- Tilt range (bottom)
-8°
- Tilt range (top)
5°
- Swivel range (left)
90°
- Swivel range (right)
-90°
- Distance to wall (max.)
620 mm
- Width
418 mm
- Height
620 mm
- Depth
643 mm
- Factory colour
Black
- Weight
1 kg
- Dim
(W x H x D) 418 x 620 x 643 mm
- Supported monitors
1
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1651162 LogiLink BP0047 TV corner mounted brackets 94,0 cm (37") - 177,8 cm (70") Rotatable, Tiltable, Swivelling Corner mount
Description
Highest flexibility awaits you with the fully mobile screen attitudes. According to your needs, you can adjust the monitor now swing and tilt. Ideal for office environments. Through the 2-fold mounting option, the holder easily in corners.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x fastening screws
- User manual.
